Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transfer Case >> System Specifications

System Specifications

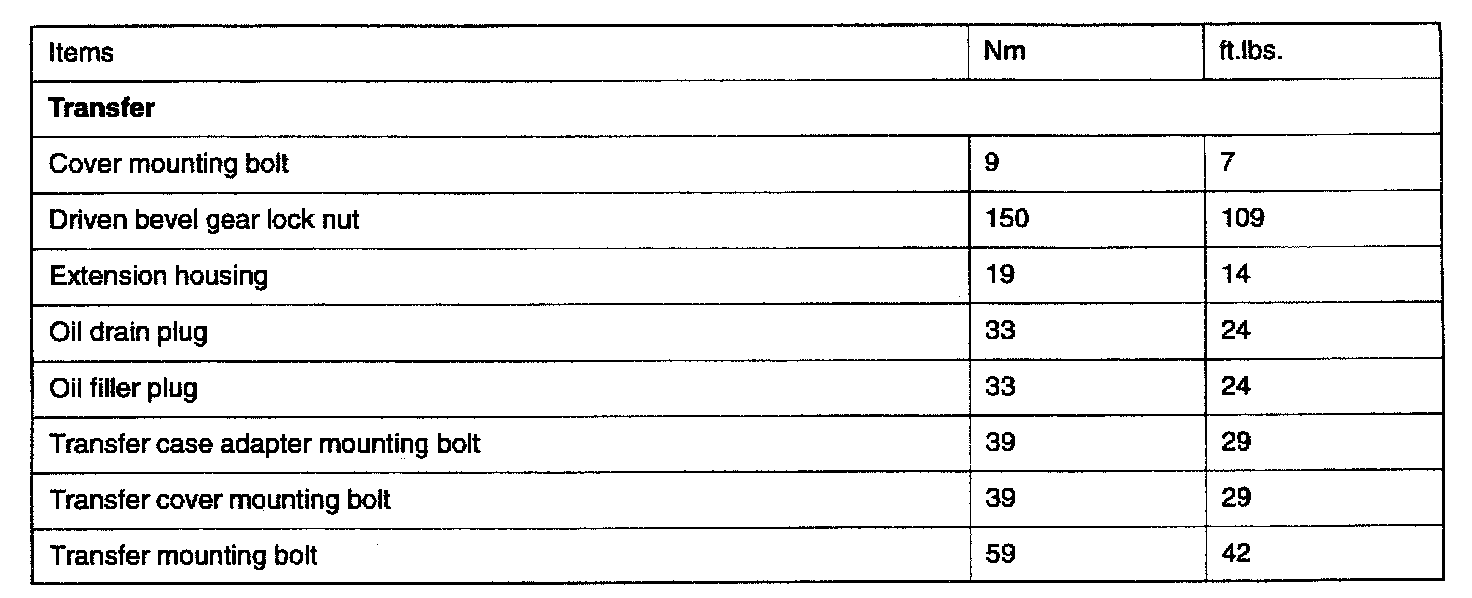

Frm31/F5M33/W5M33 5-spd M/T, Transfer Case Torque:

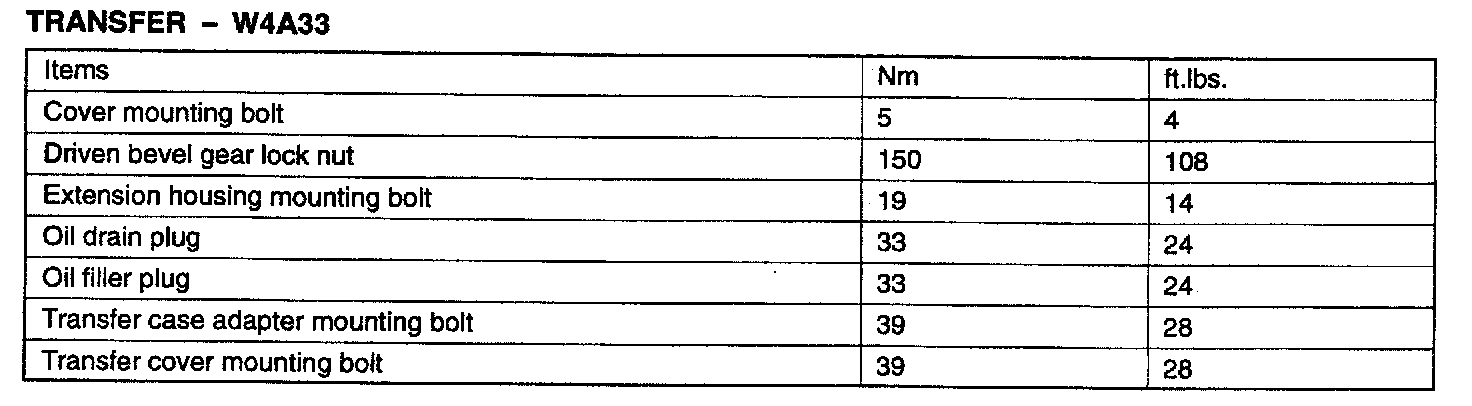

W4A33 4-spd A/T, Transfer Case Torque:
