Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications >> M/T Torque Data

M/T Torque Data

5-spd M/T, Clutch Torque:

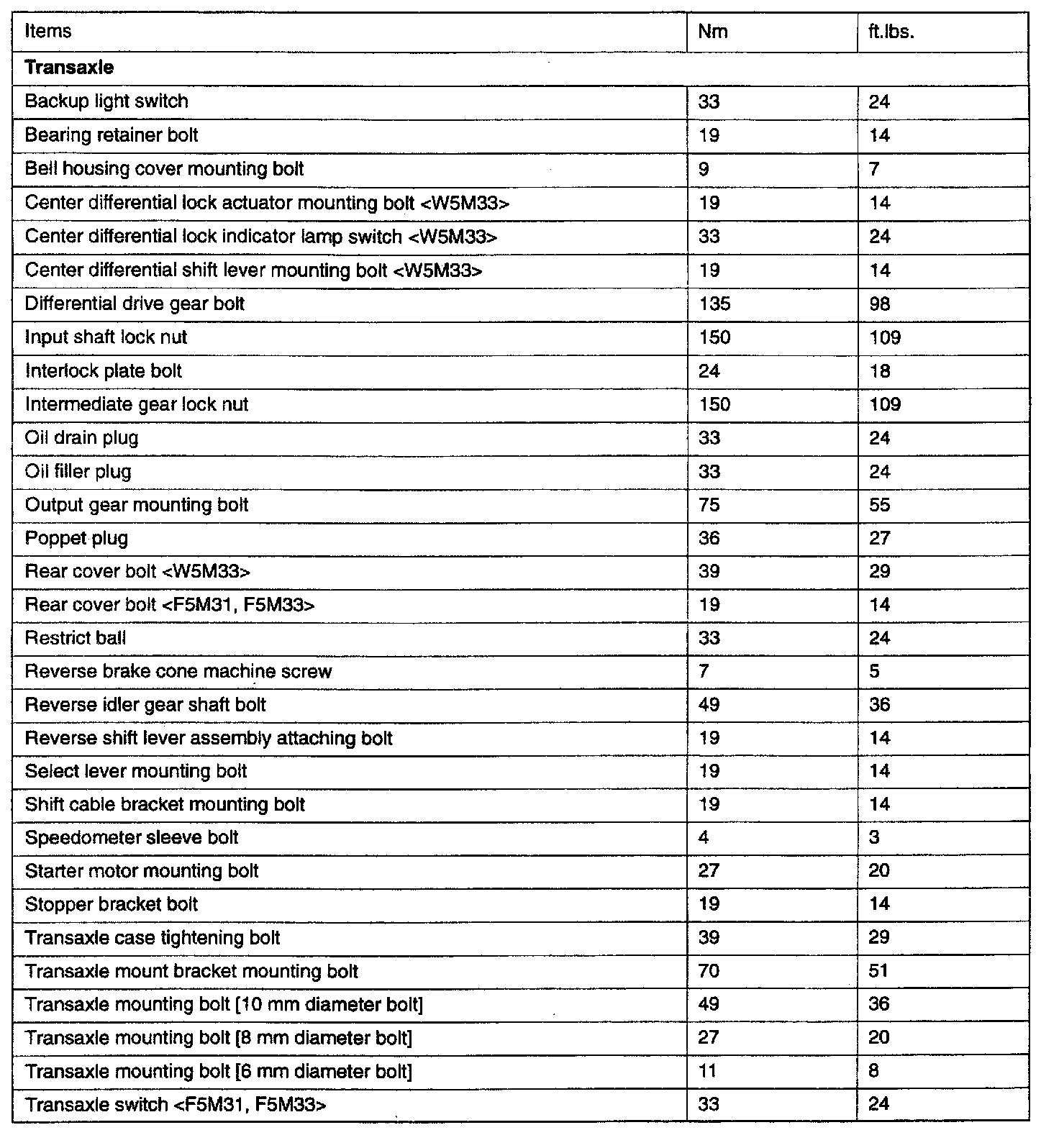

F5M31/F5M33/W5M33 5-spd M/T, Transaxle Torque:
