M/T Technical Data

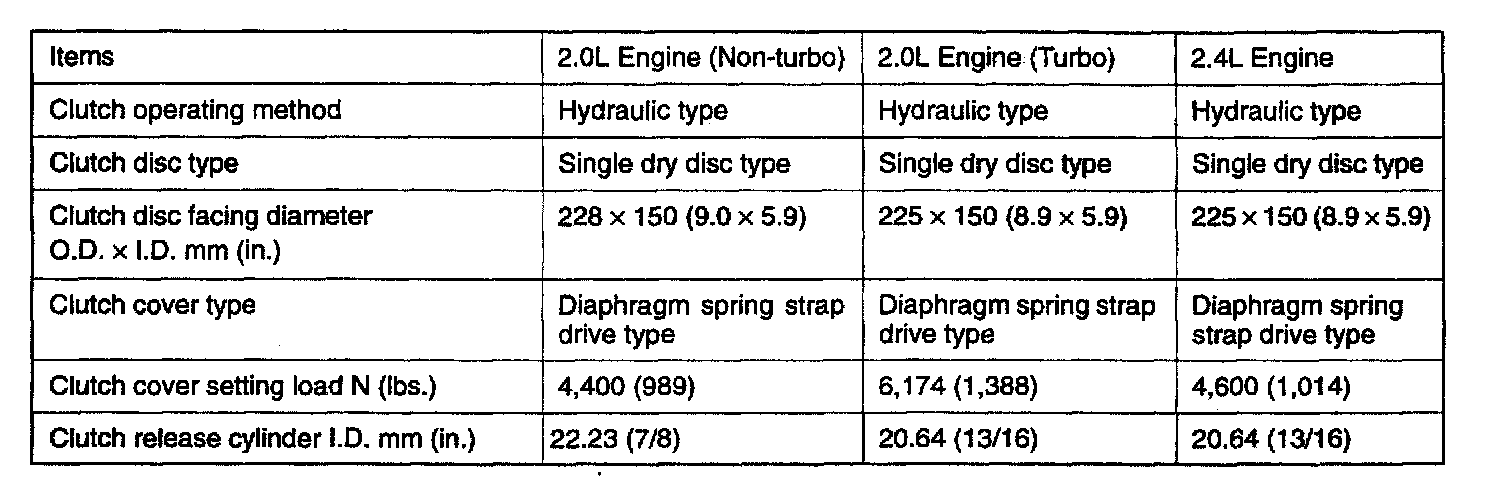

F5M31/F5M33/W5M33 5-spd M/T, Clutch Dimensions:

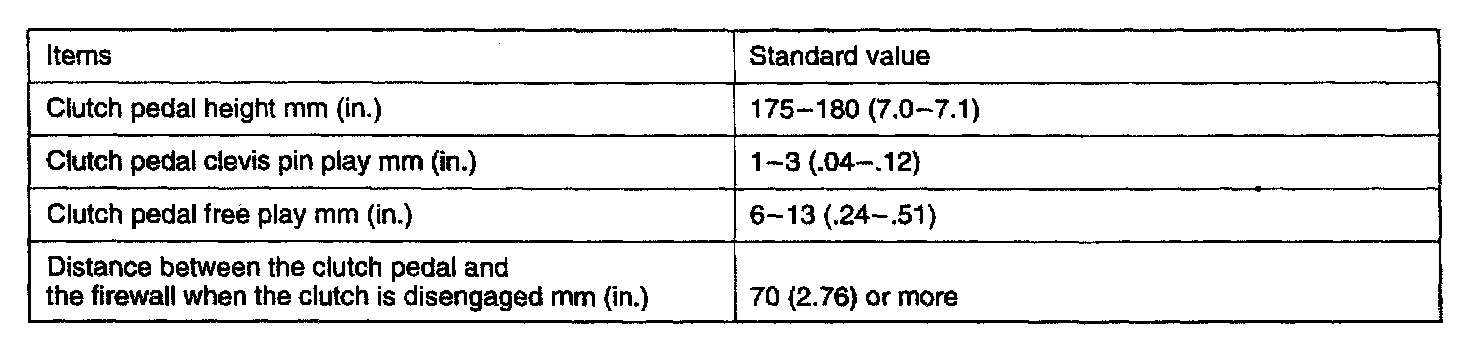

F5M31/F5M33/W5M33 5-spd M/T, Clutch Standard Values:

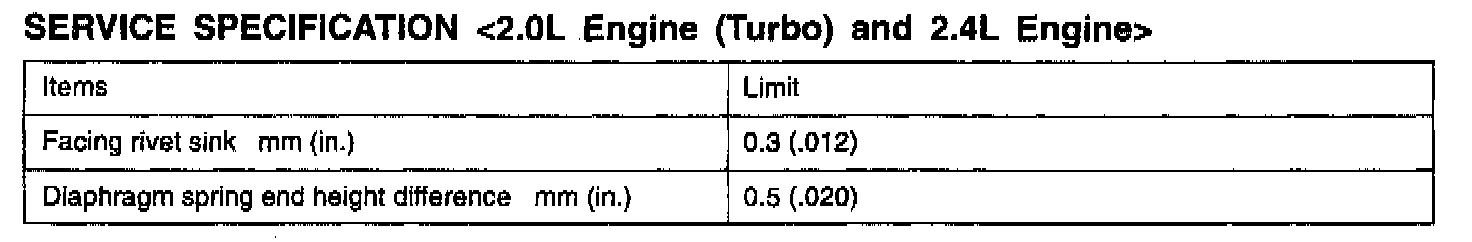

F5M31/F5M33 5-spd M/T, Clutch Limits:

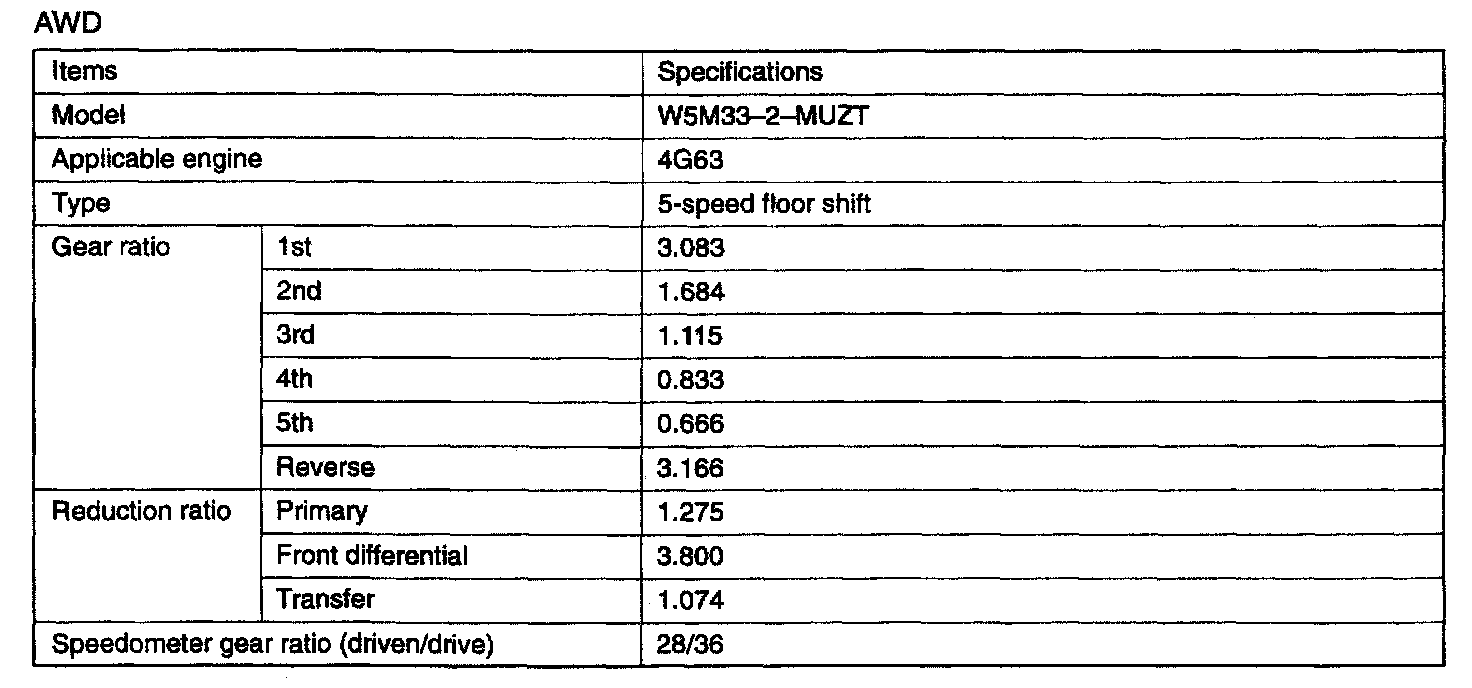

W5M33 5-spd M/T, Gear Ratios:

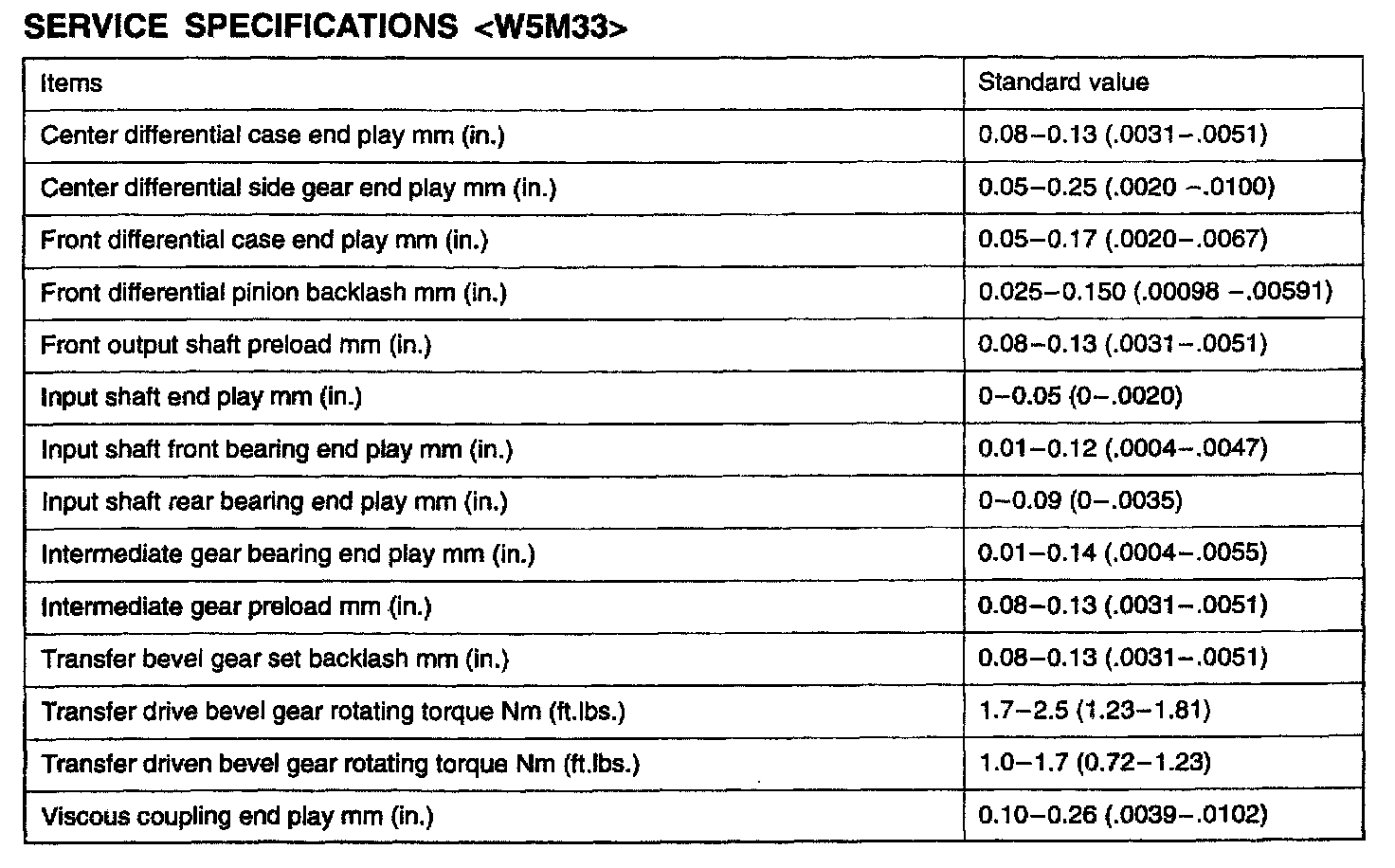

W5M33 5-spd M/T, Standard Values:

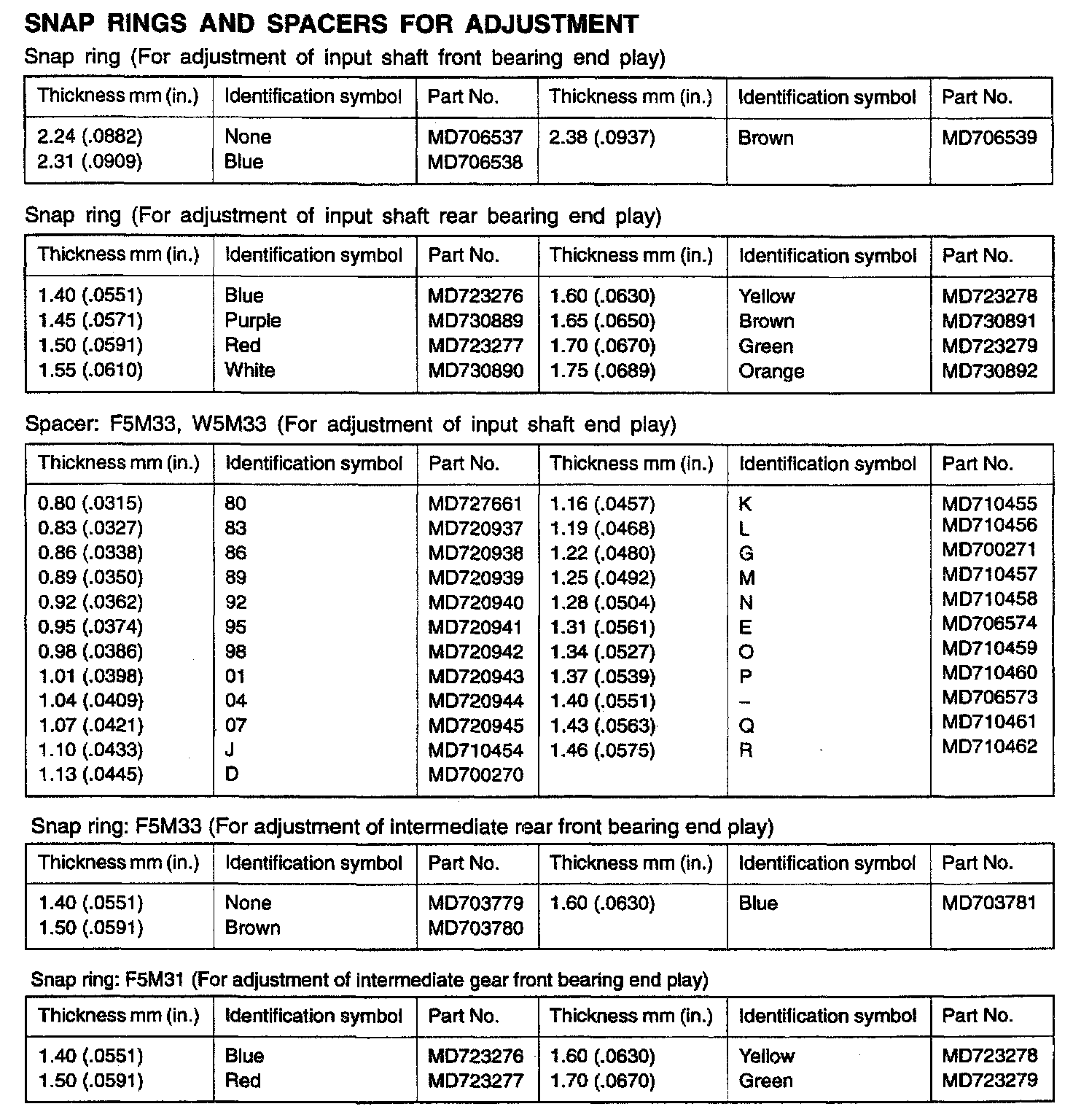

F5M31/F5M33/W5M33 5-spd M/T, Input Shaft & Intermediate Gear:

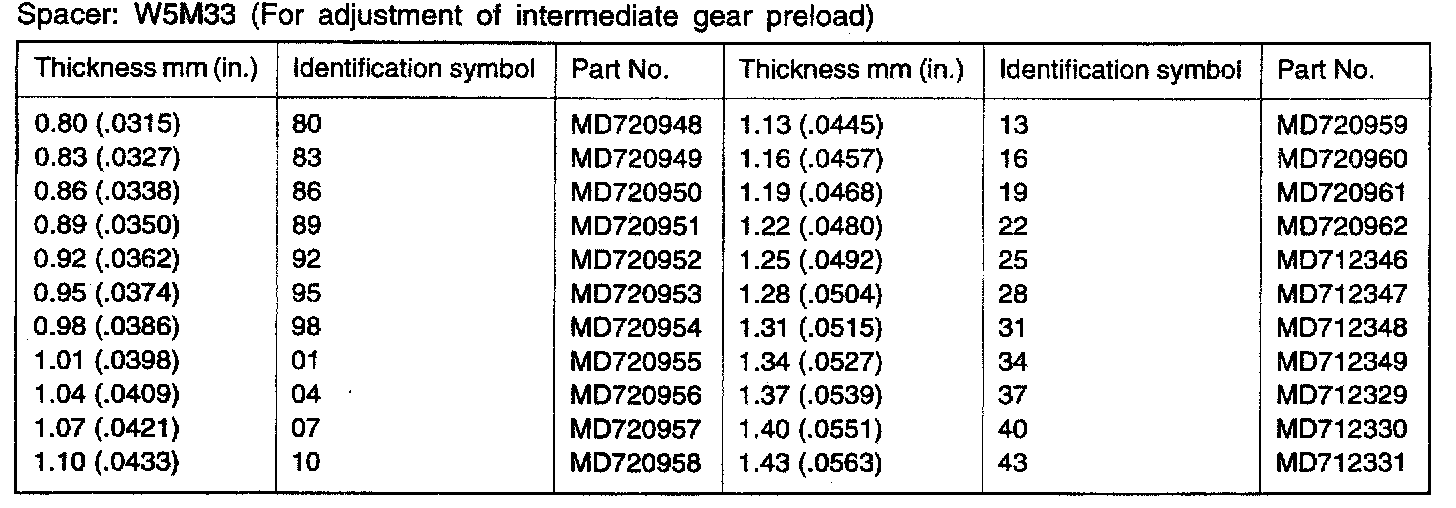

W5M33 5-spd M/T, Intermediate Gear Preload:

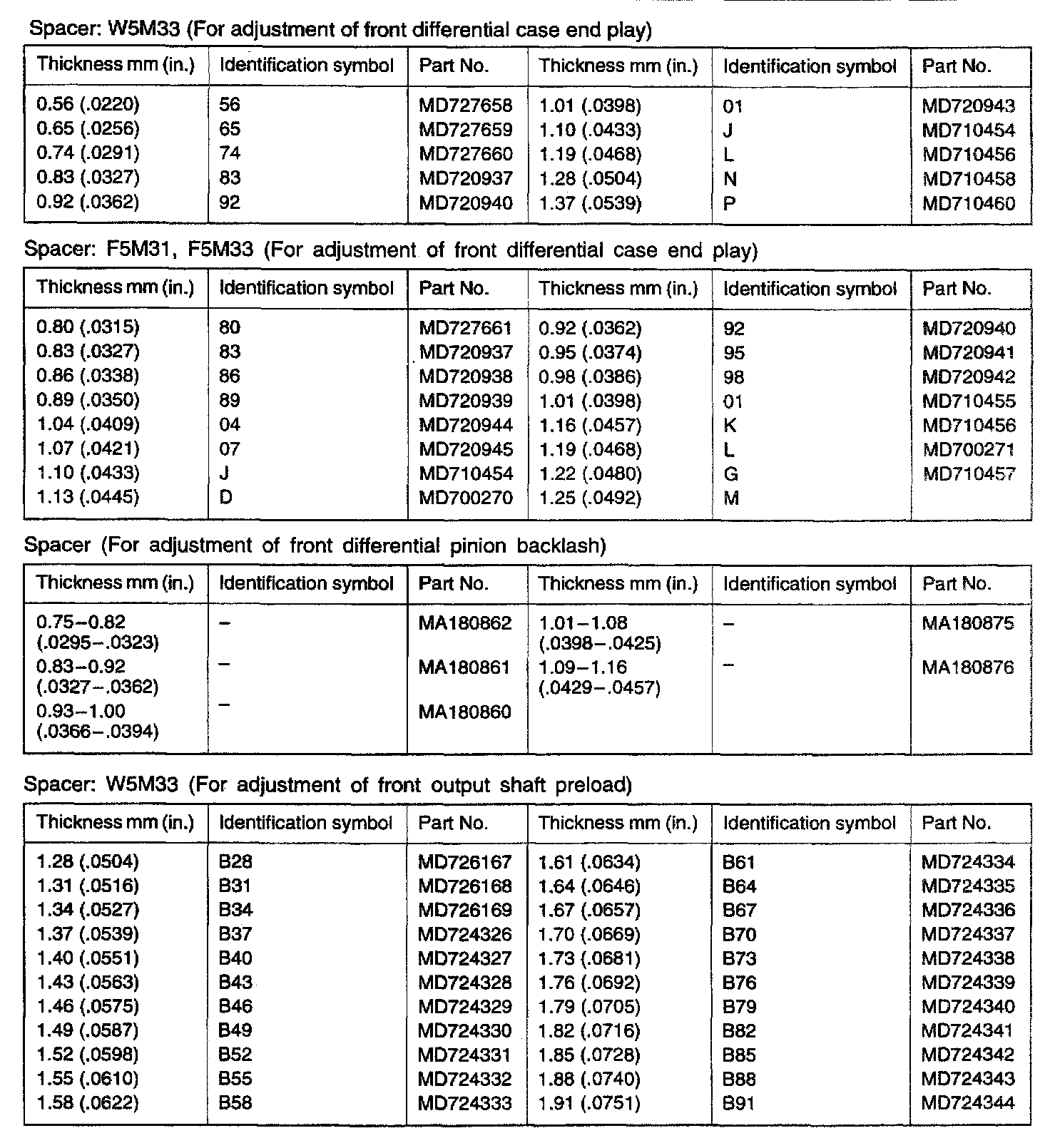

F5M31/F5M33/W5M33 5-spd M/T, Differential End Play, Backlash & Preload:

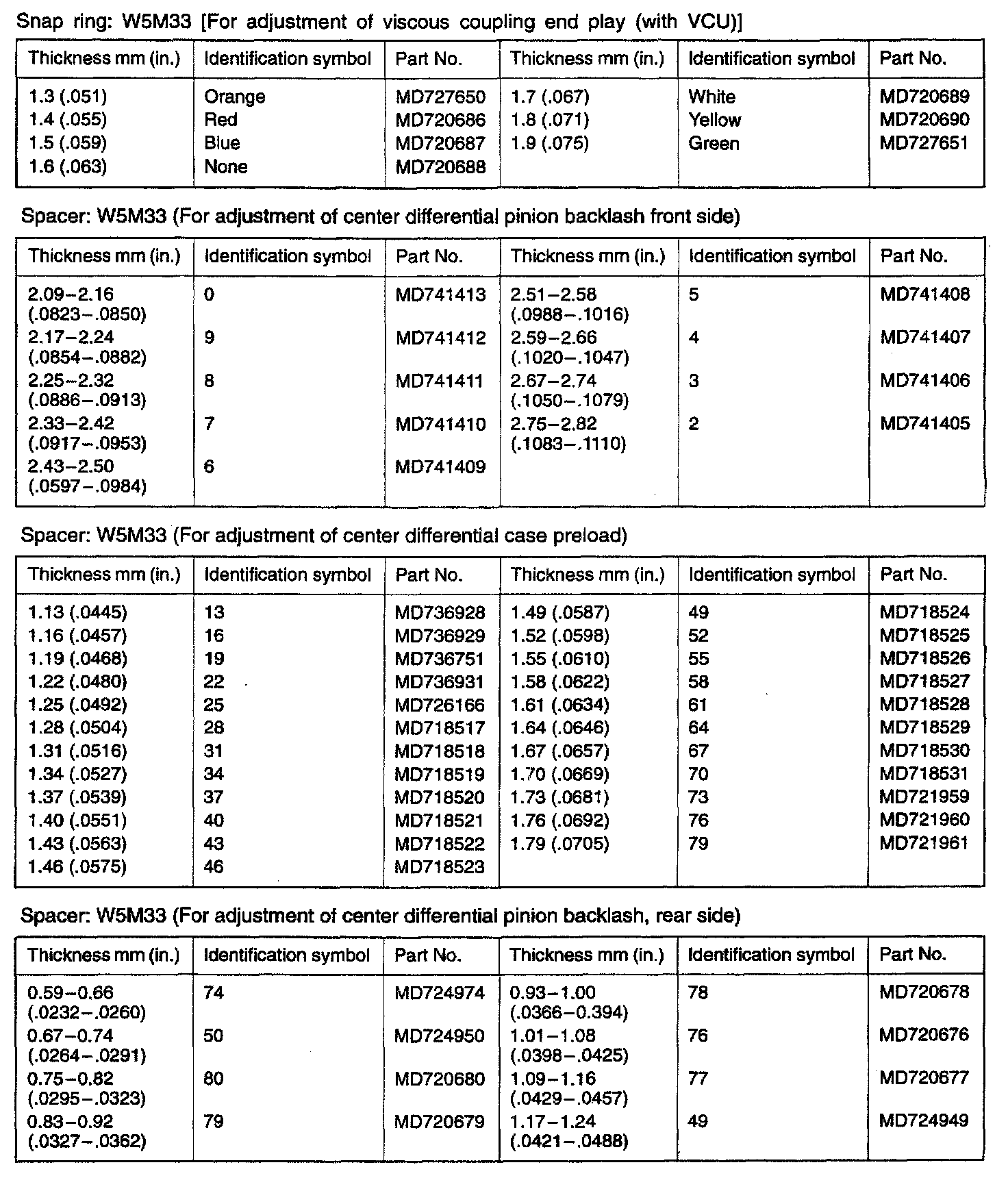

W5M33 5-spd M/T, Coupling End Play & Differential Backlash/Preload:

W5M33 5-spd M/T, Drive Bevel Gear Mount & Preload:
