System Specifications

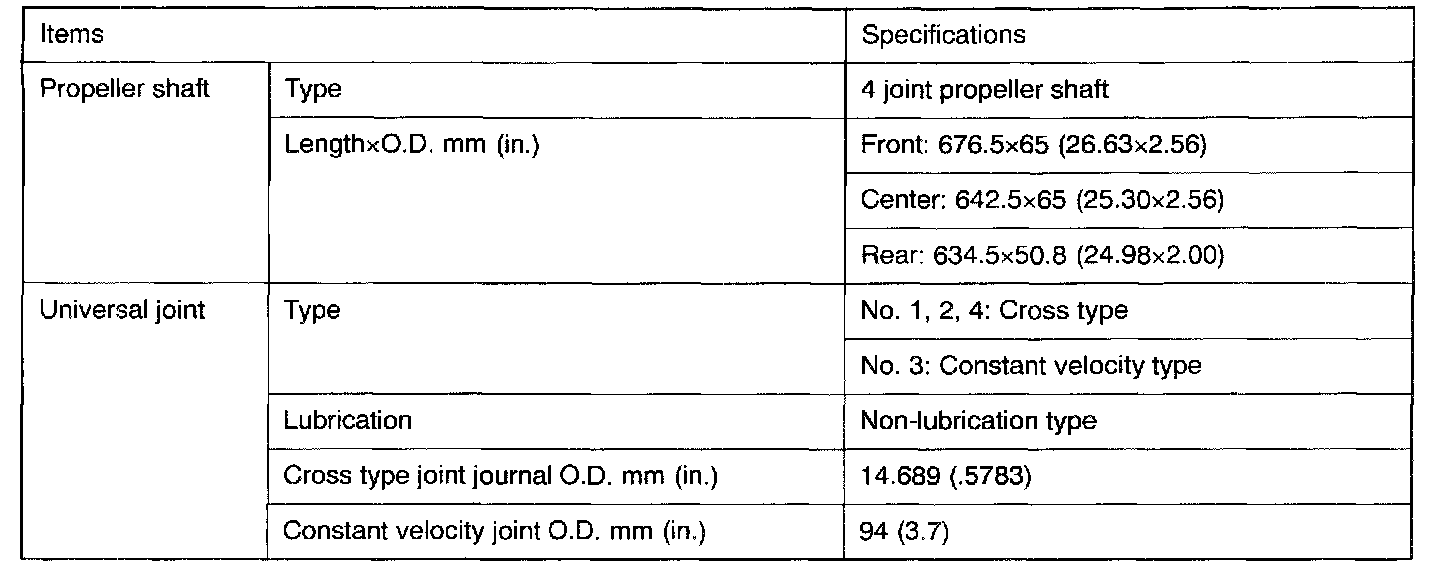

GENERAL SPECIFICATIONS





NOTE: Propeller shaft length indicates the length center points of each joint.

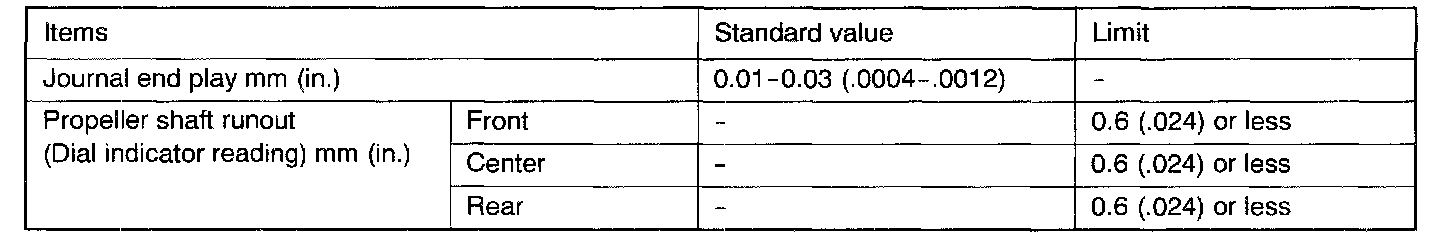

SERVICE SPECIFICATIONS
