A/T Technical Data

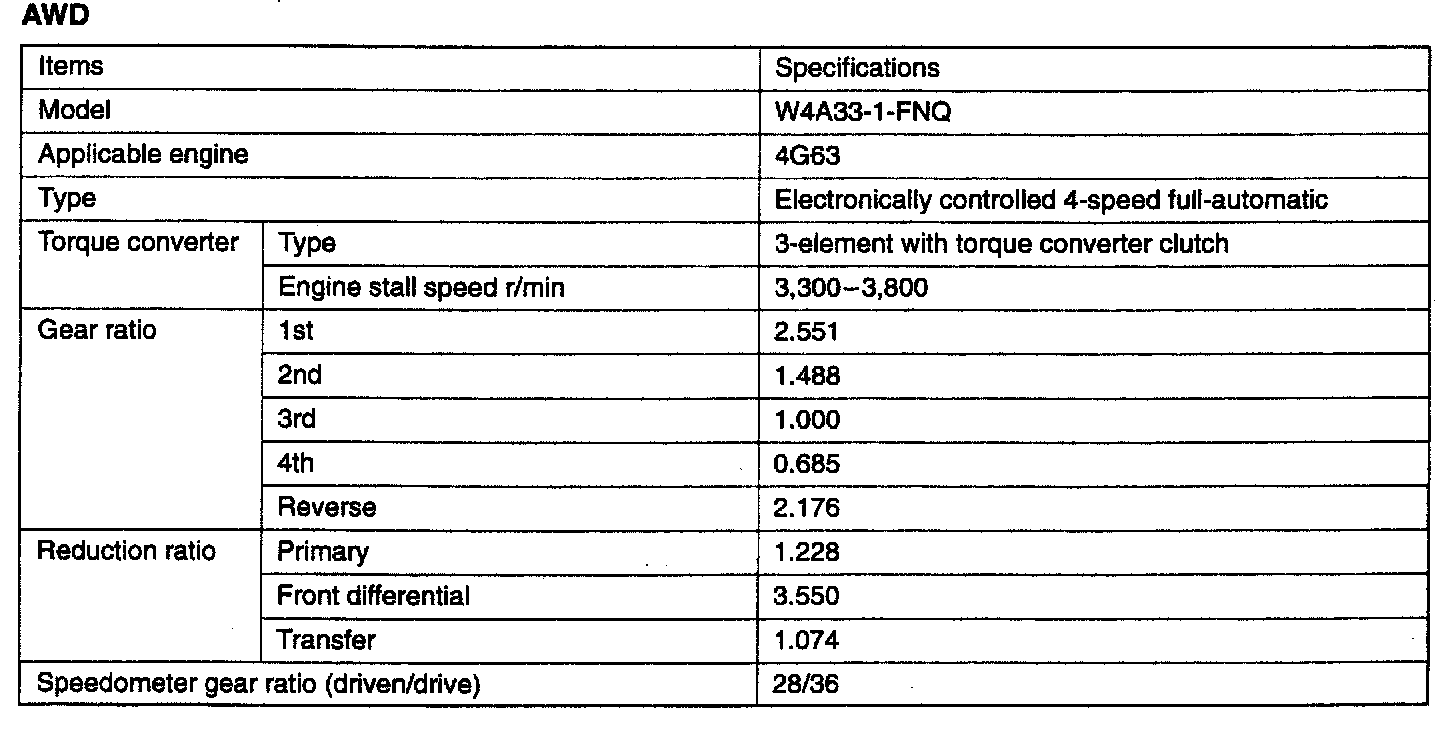

W4A33 4-spd A/T, Gear Ratios:

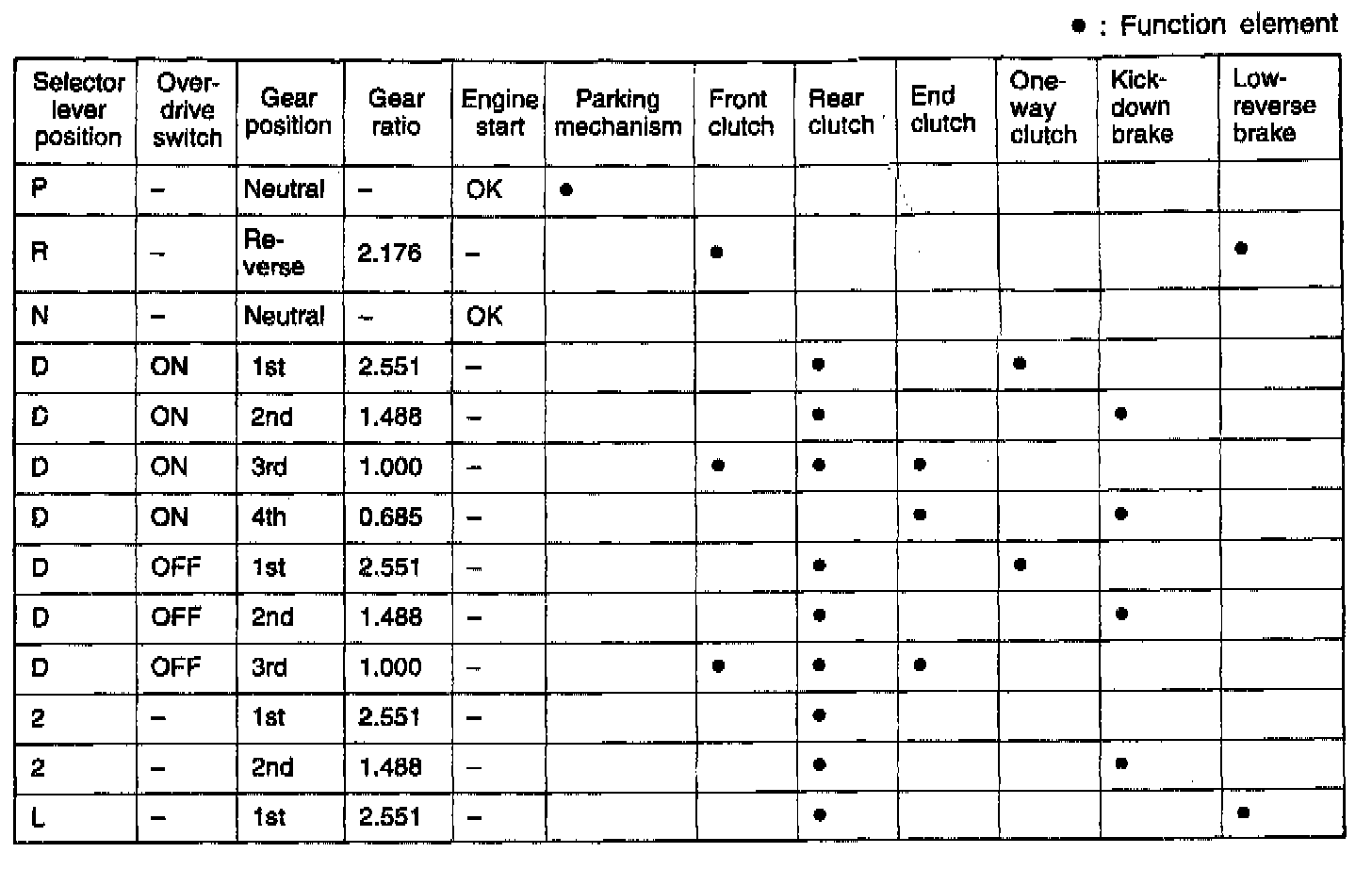

4-spd A/T, Function Element Chart:

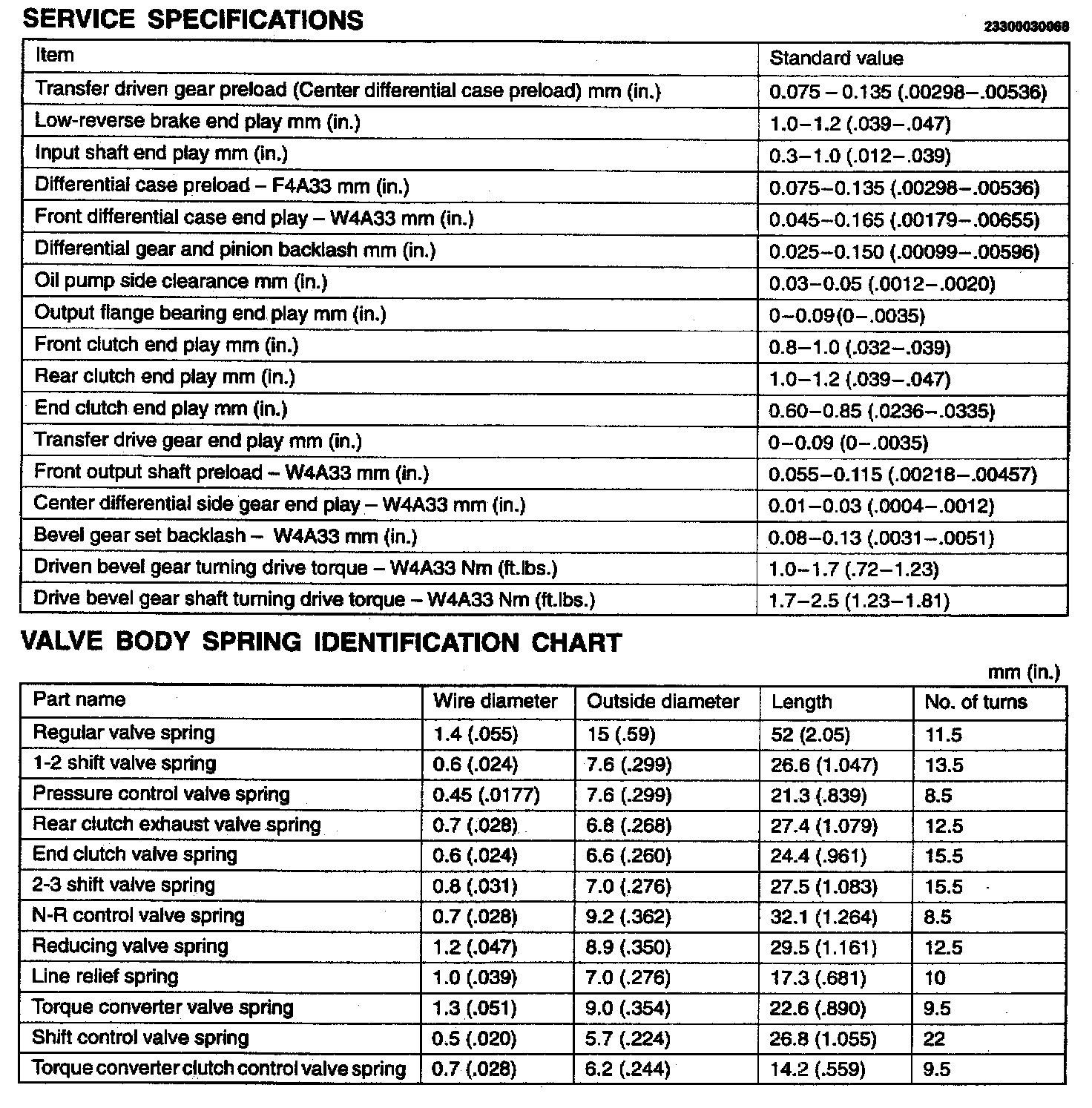

4-Spd A/T, Standard Values:

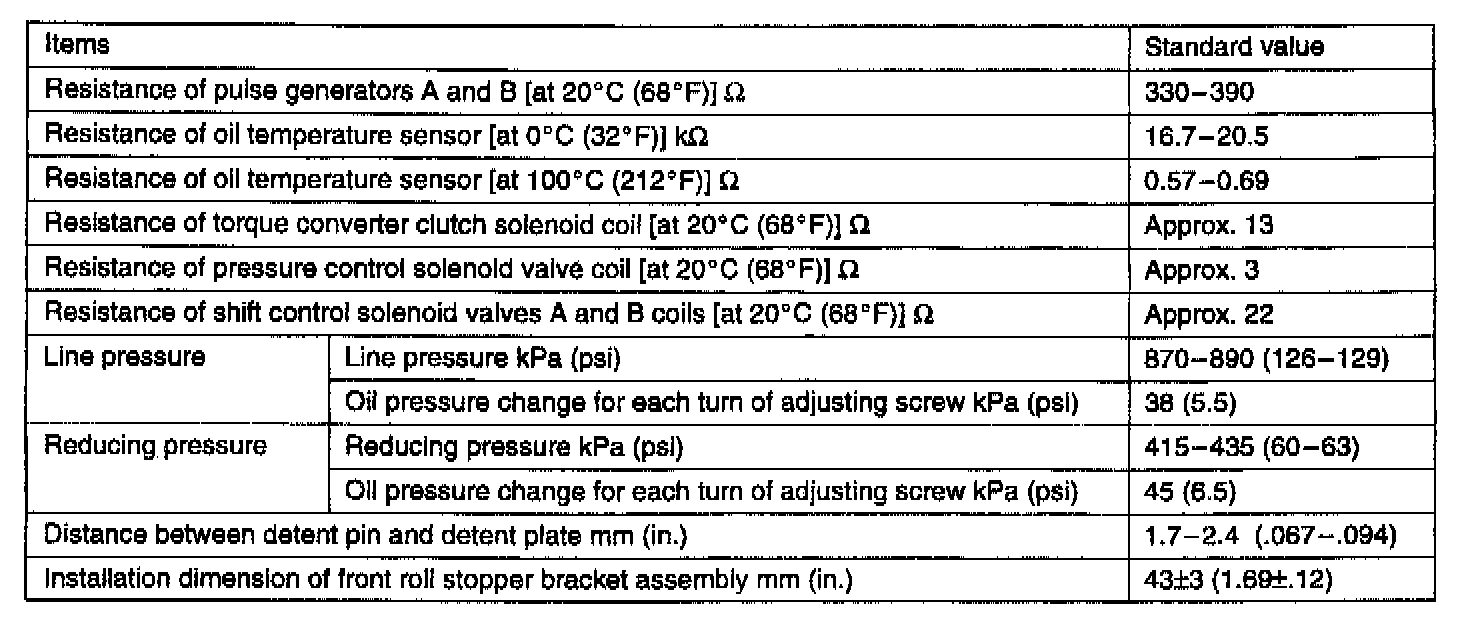

F4A33/W4A33 4-spd A/T, Standard Values & Identification:

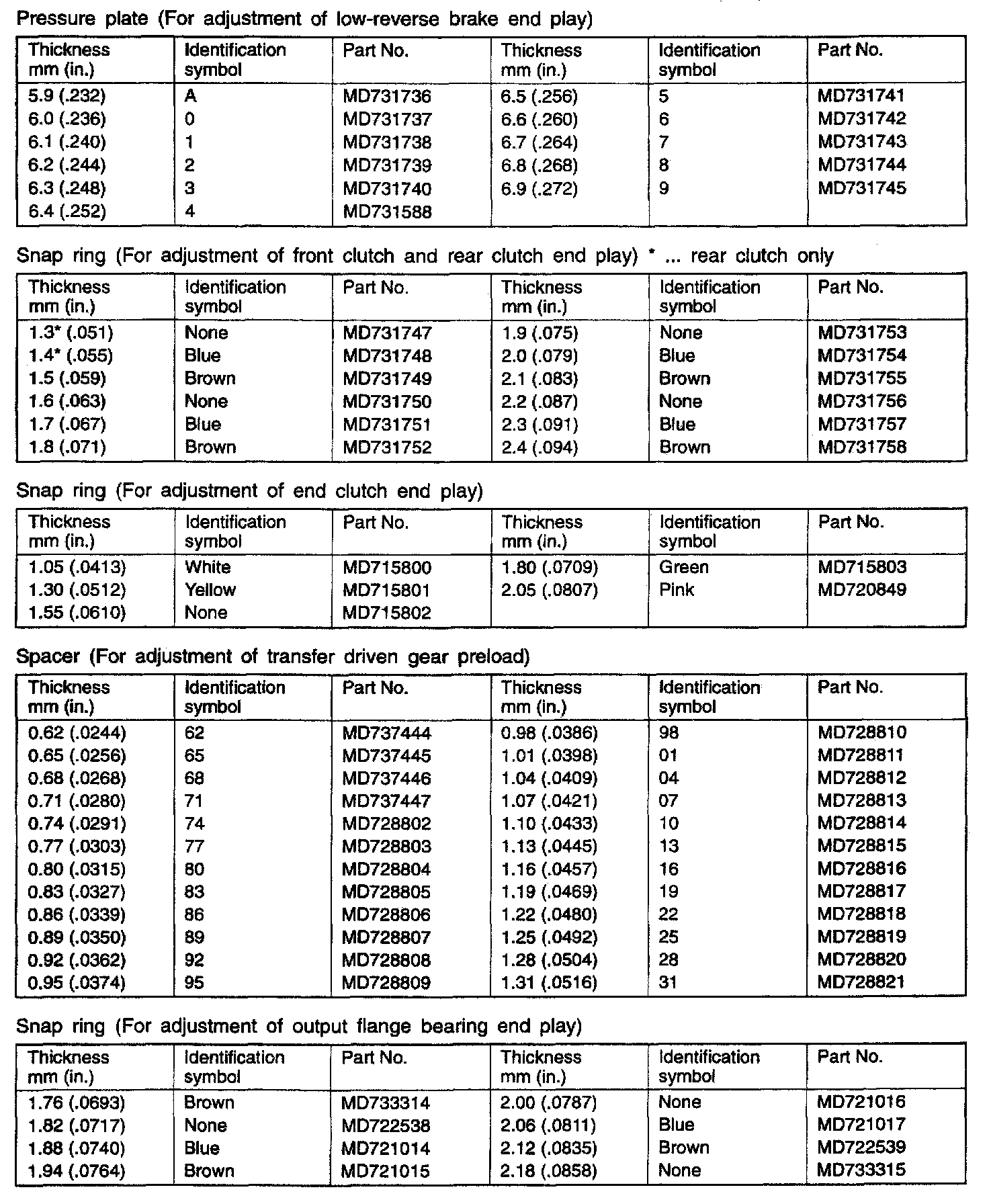

F4A33/W4A33 4-spd A/T, Pressure Plate, Snap Ring & Spacers:

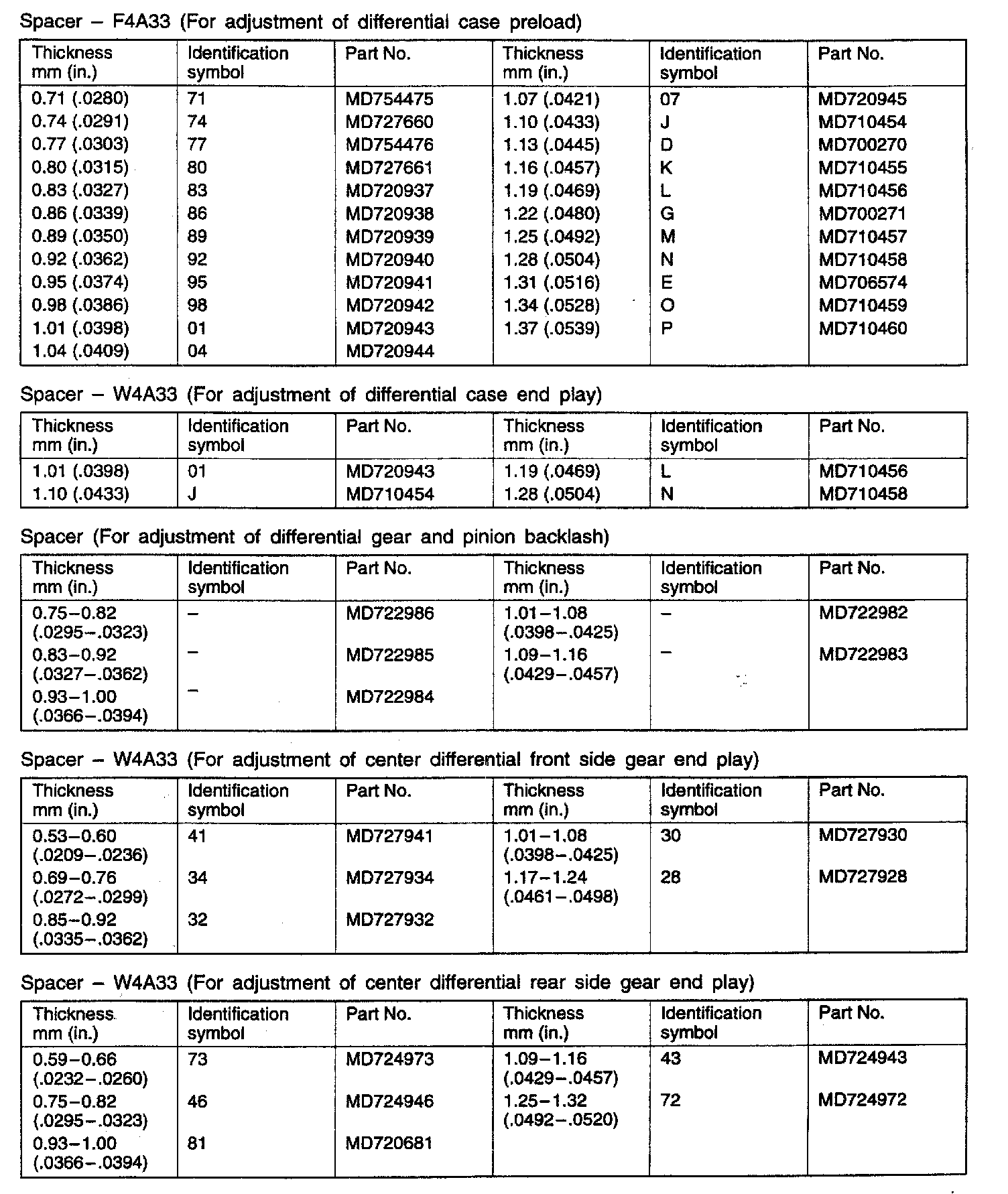

F4A33/W4A33 4-spd A/T, Differential Preload, End Play & Backlash:

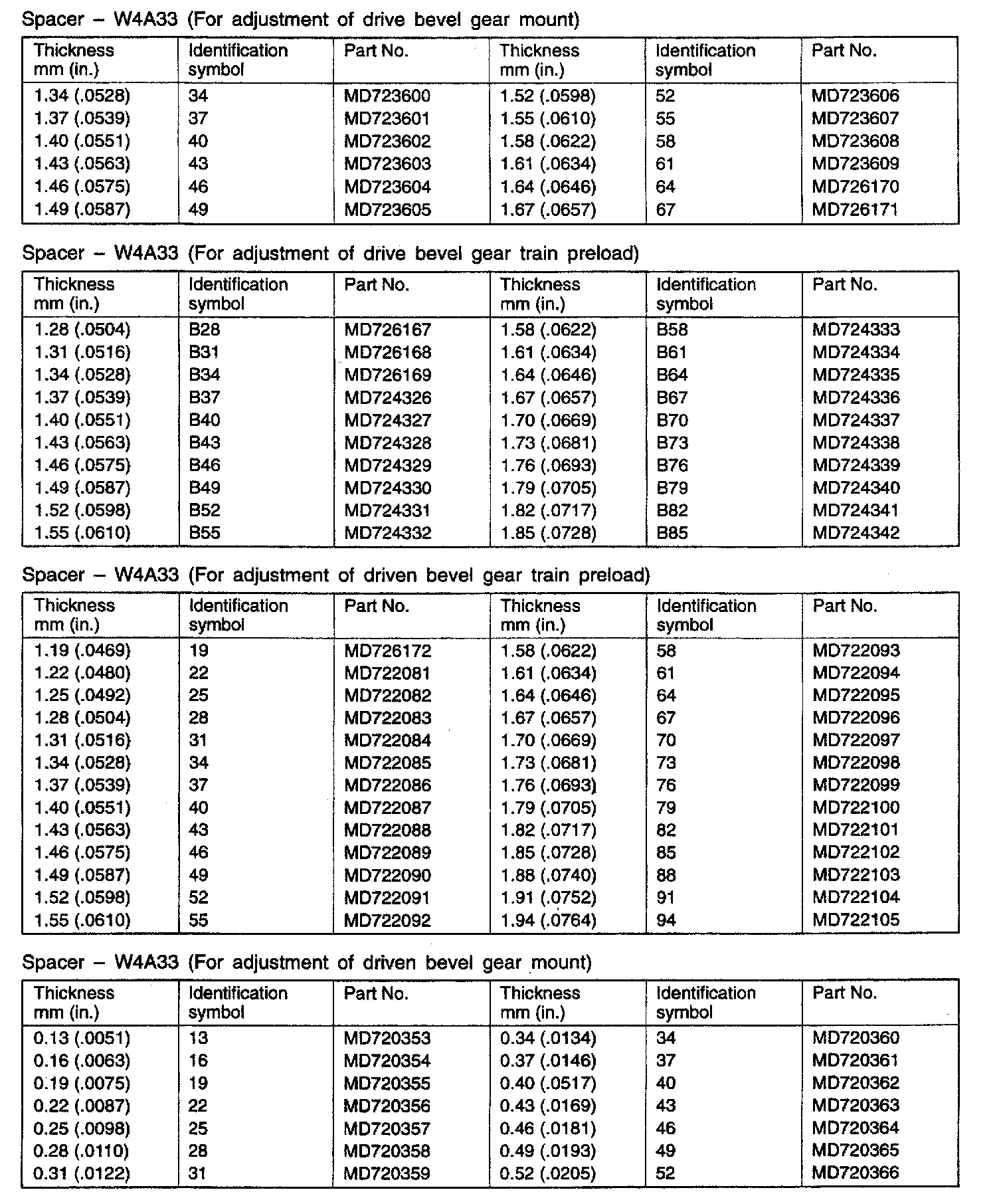

W4A33 4-spd A/T, Drive Bevel Gear Mount & Train Preload:

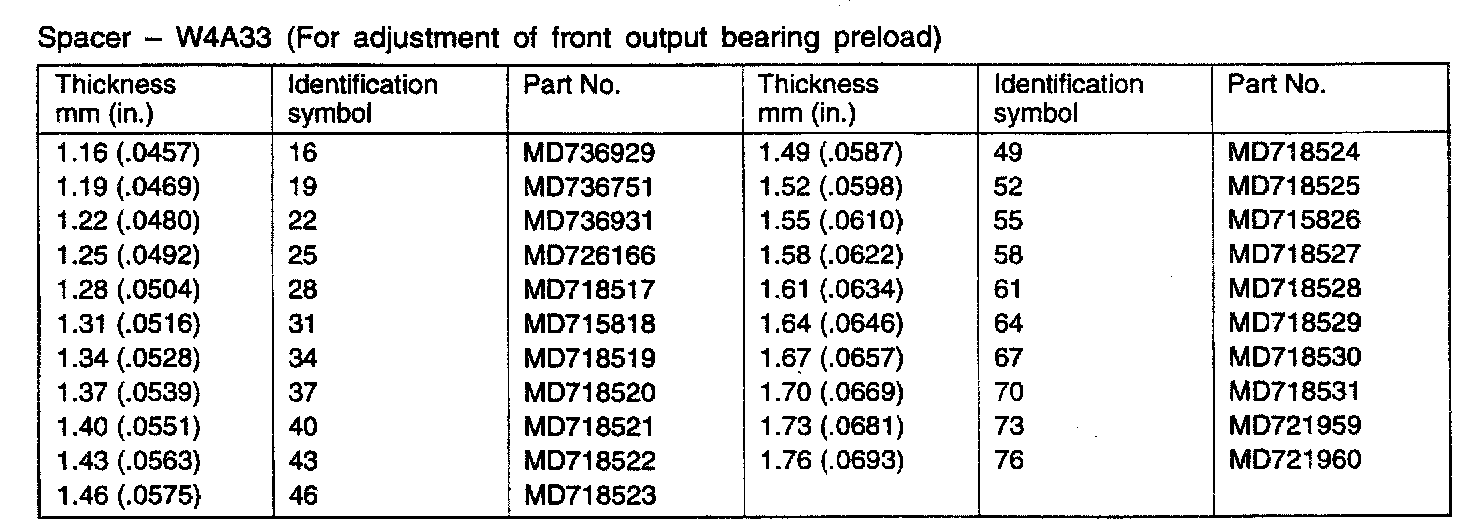

W4A33 4-spd A/T, Output Bearing Preload:
