Restraints and Safety Systems: Service Precautions

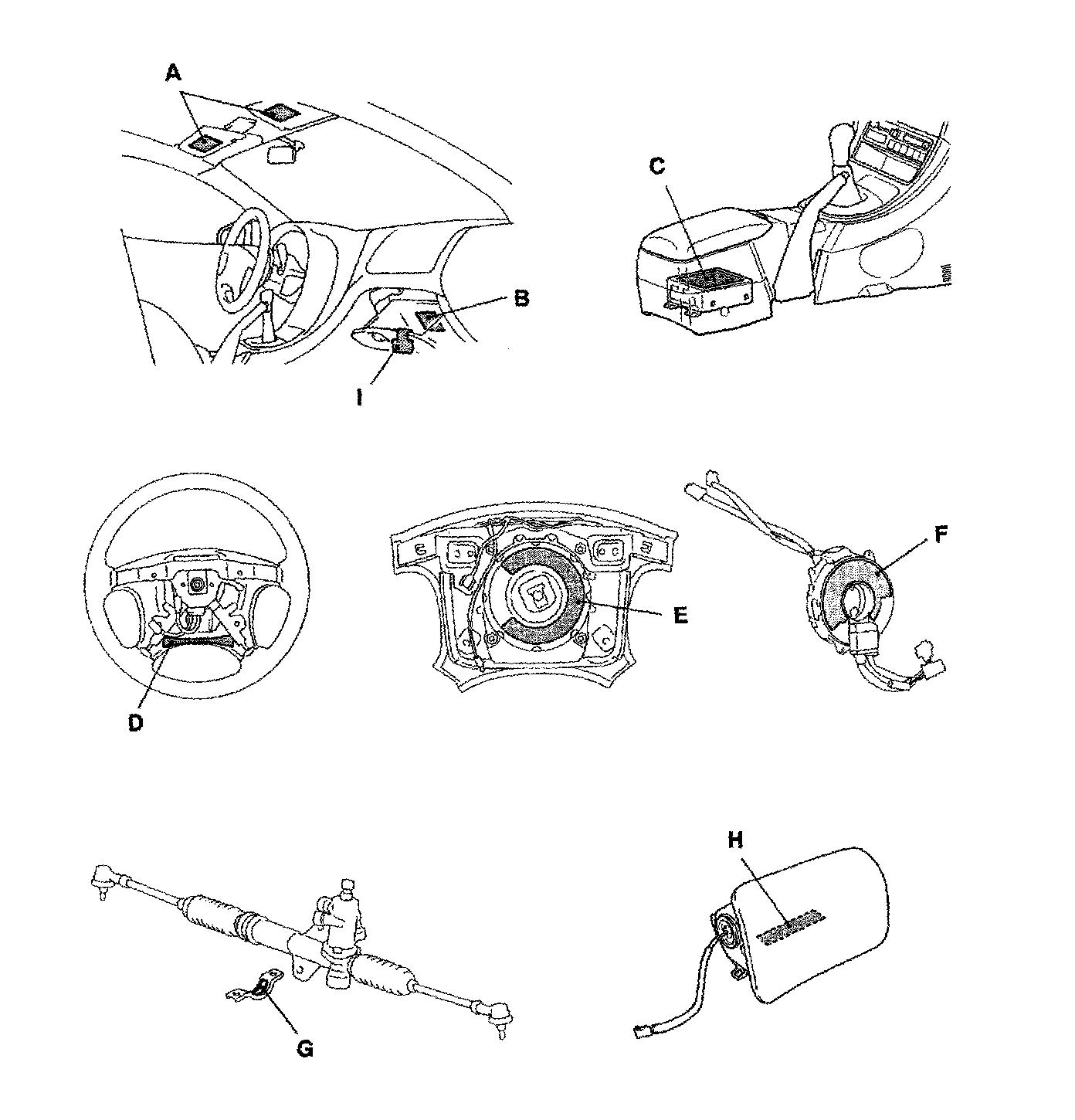

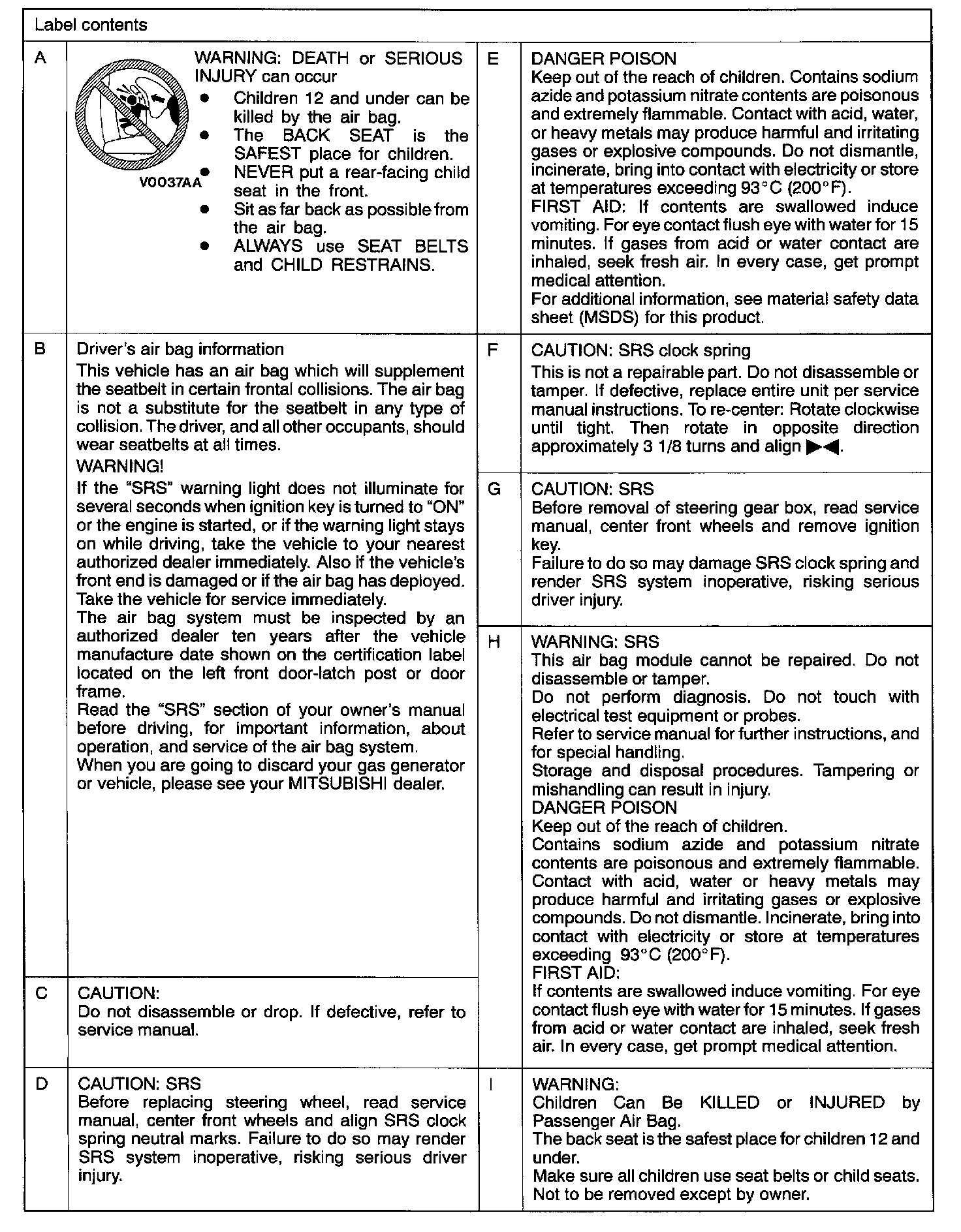

A number of caution labels related to the SRS are found in the vehicle, as shown in the illustrations.

Follow label instructions when servicing SRS.

Label I is not to be removed except by the vehicle owner.

Other labels can be replaced with new ones if they become dirty or damaged.
