Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
2. Communication With Scan Tool Impossible (SRS Only)
2. Communication With Scan Tool Impossible (SRS Only)

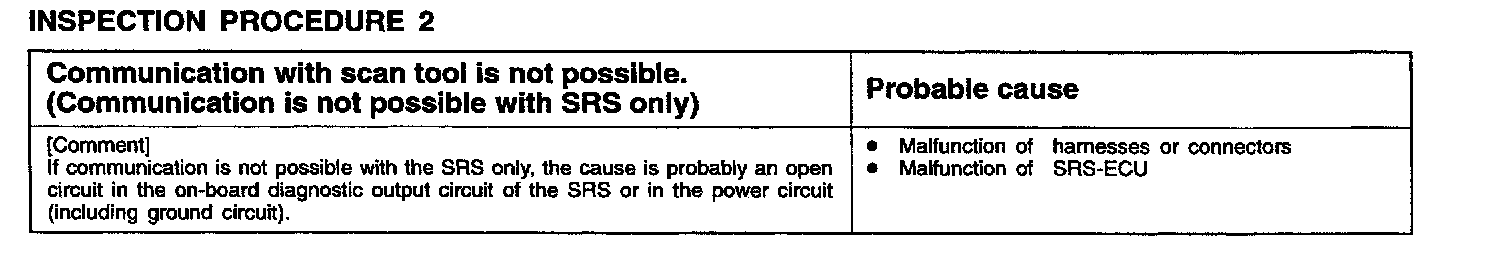

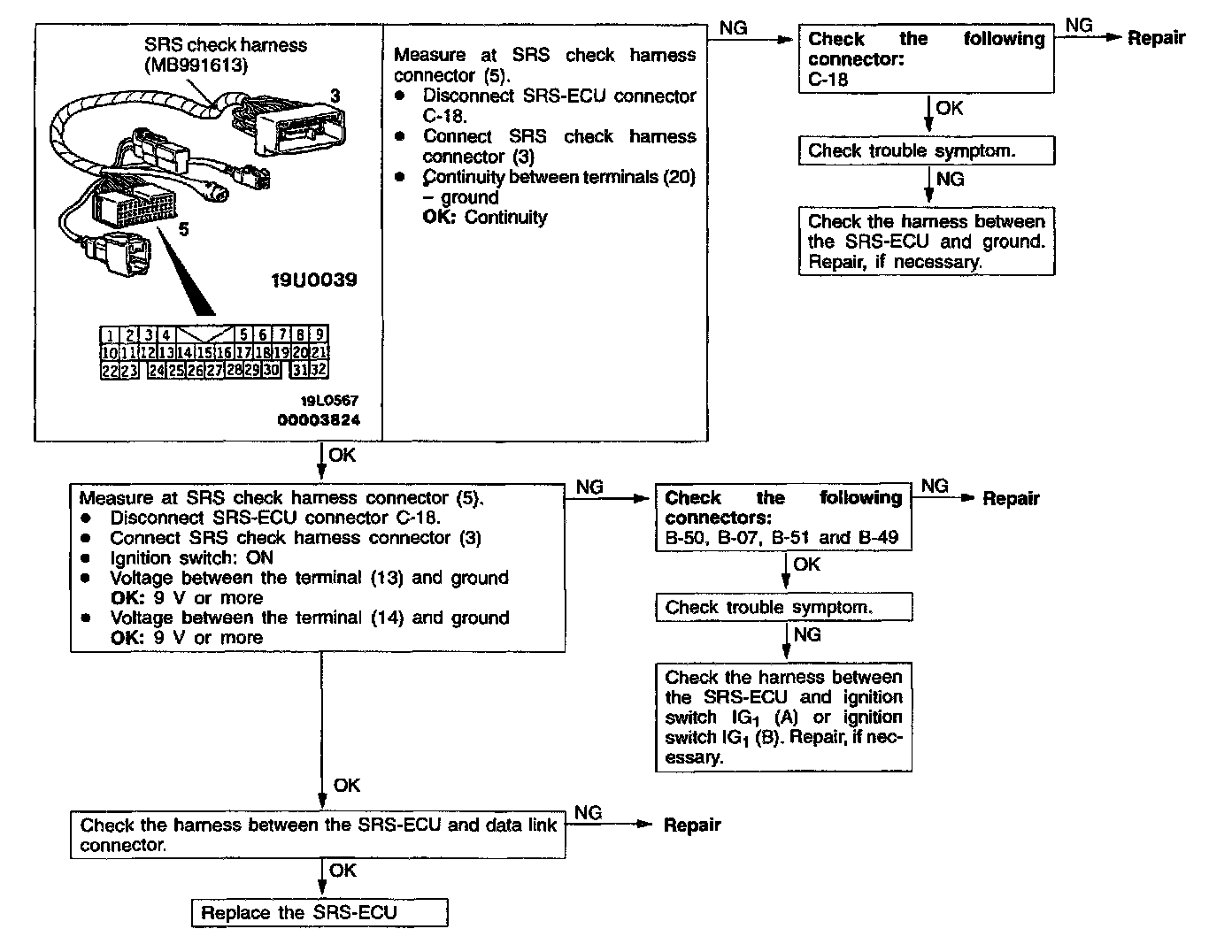

Inspection Procedure 2 (1 Of 2):
Inspection Procedure 2 (2 Of 2):
