Starter Relay: Testing and Inspection

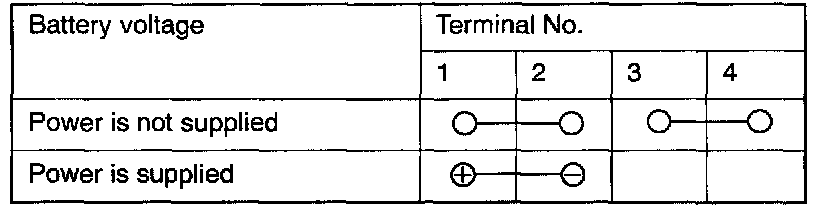

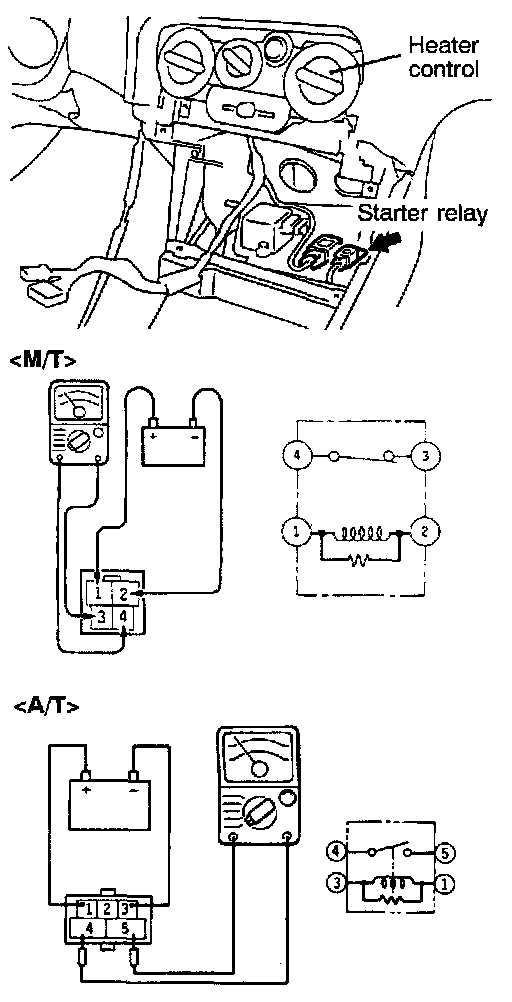

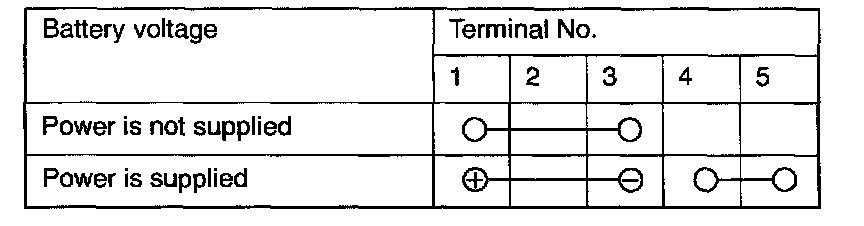

STARTER RELAY CONTINUITY CHECK

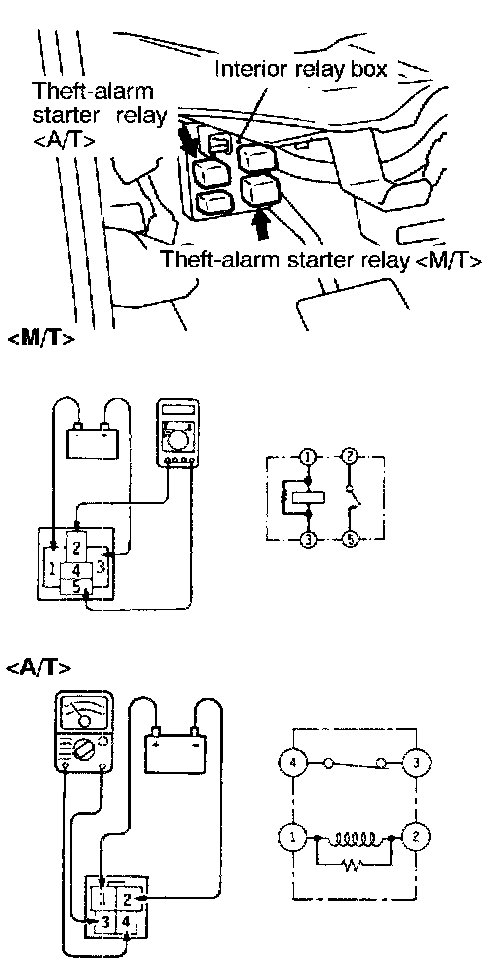

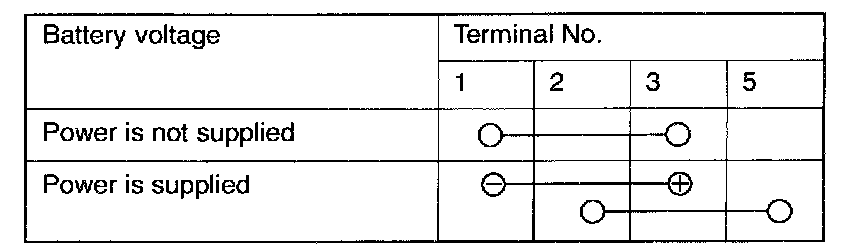

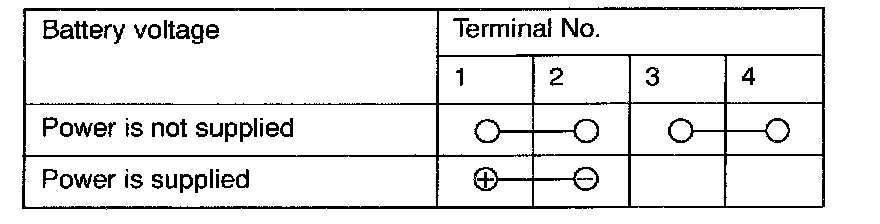

THEFT-ALARM STARTER RELAY CONTINUITY CHECK
