Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Tools and Equipment

Transmission Control Systems: Tools and Equipment

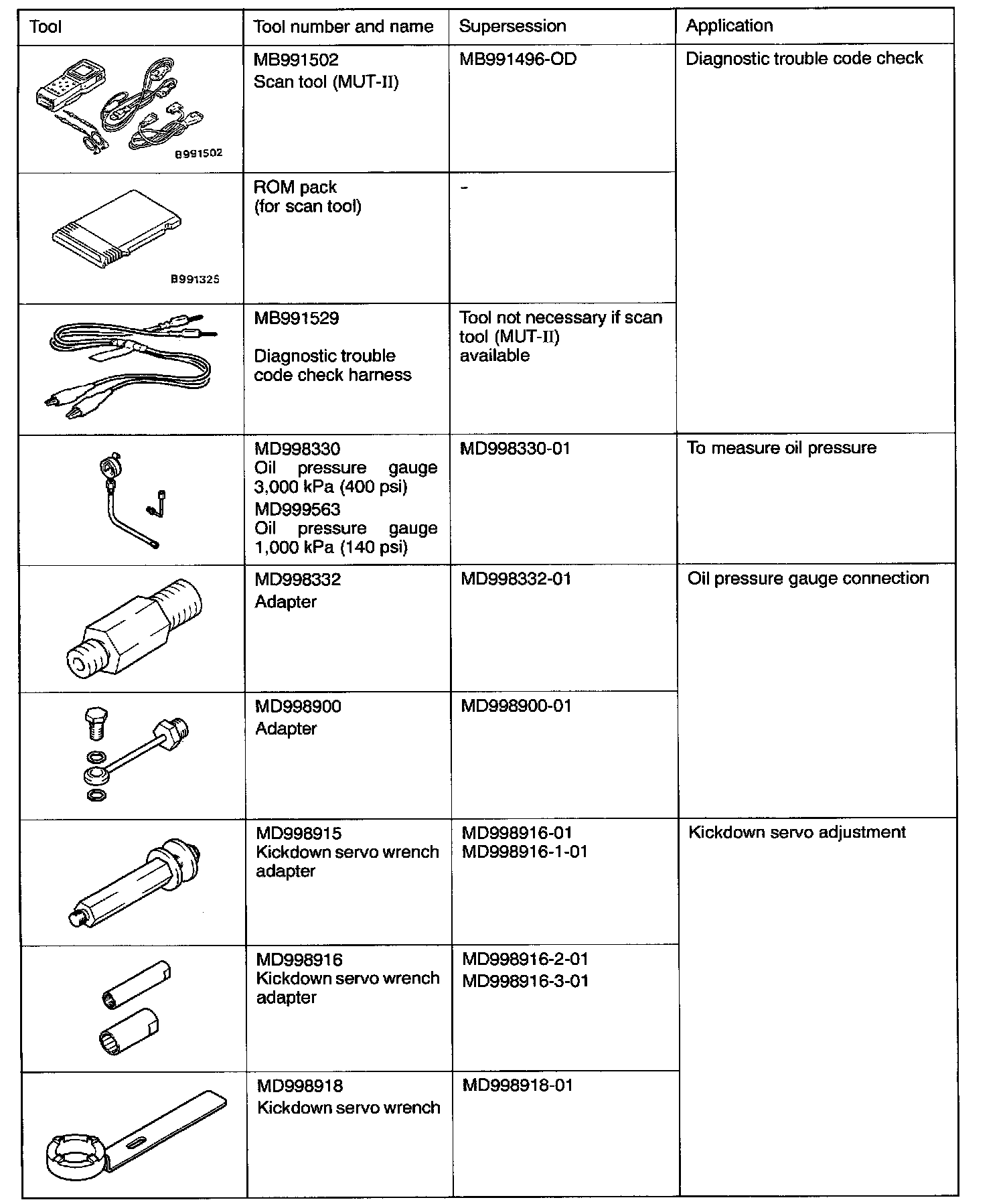

Part 1 Of 2:

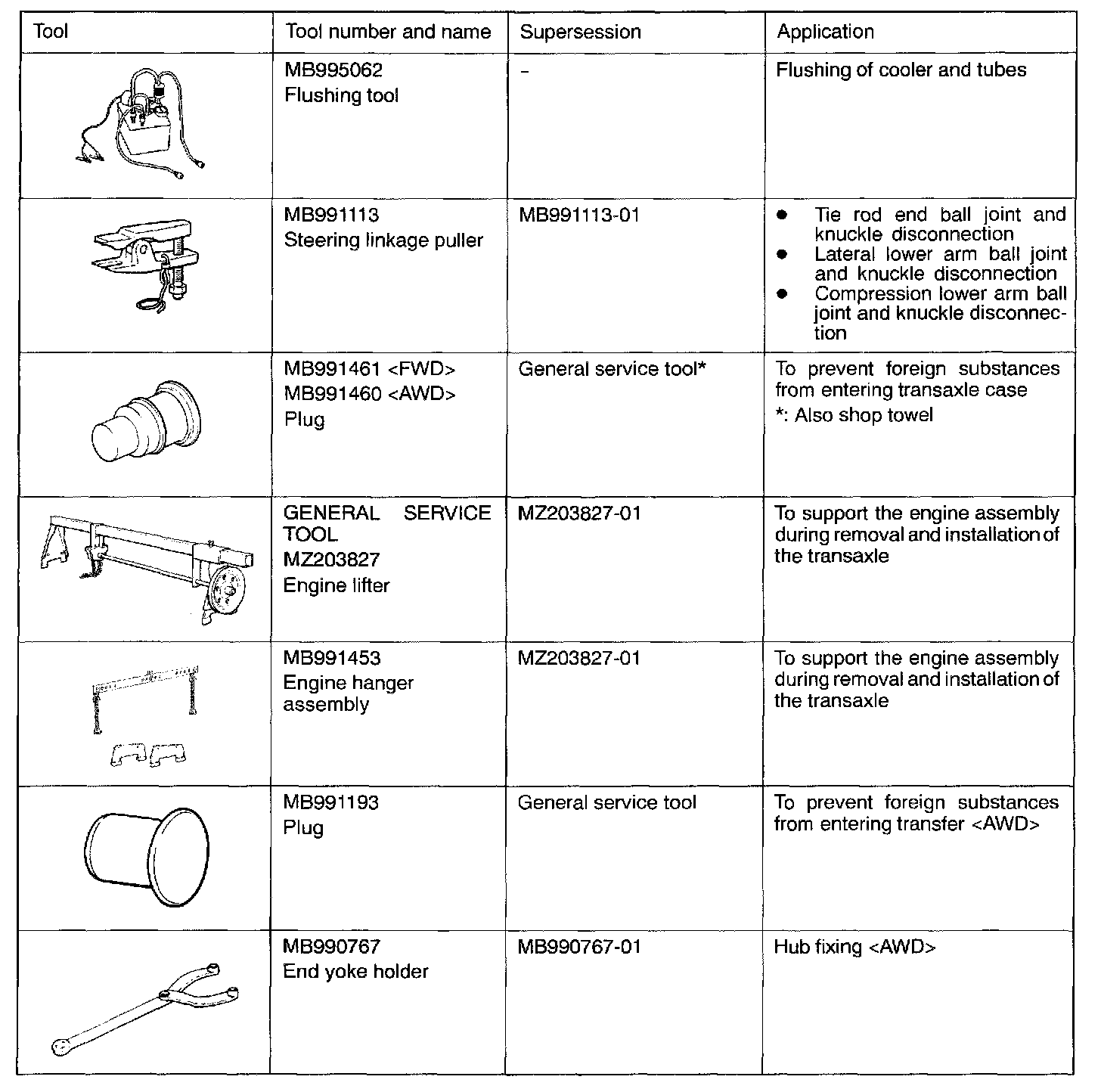

Part 2 Of 2:





SPECIAL TOOLS
