Road Test Procedures

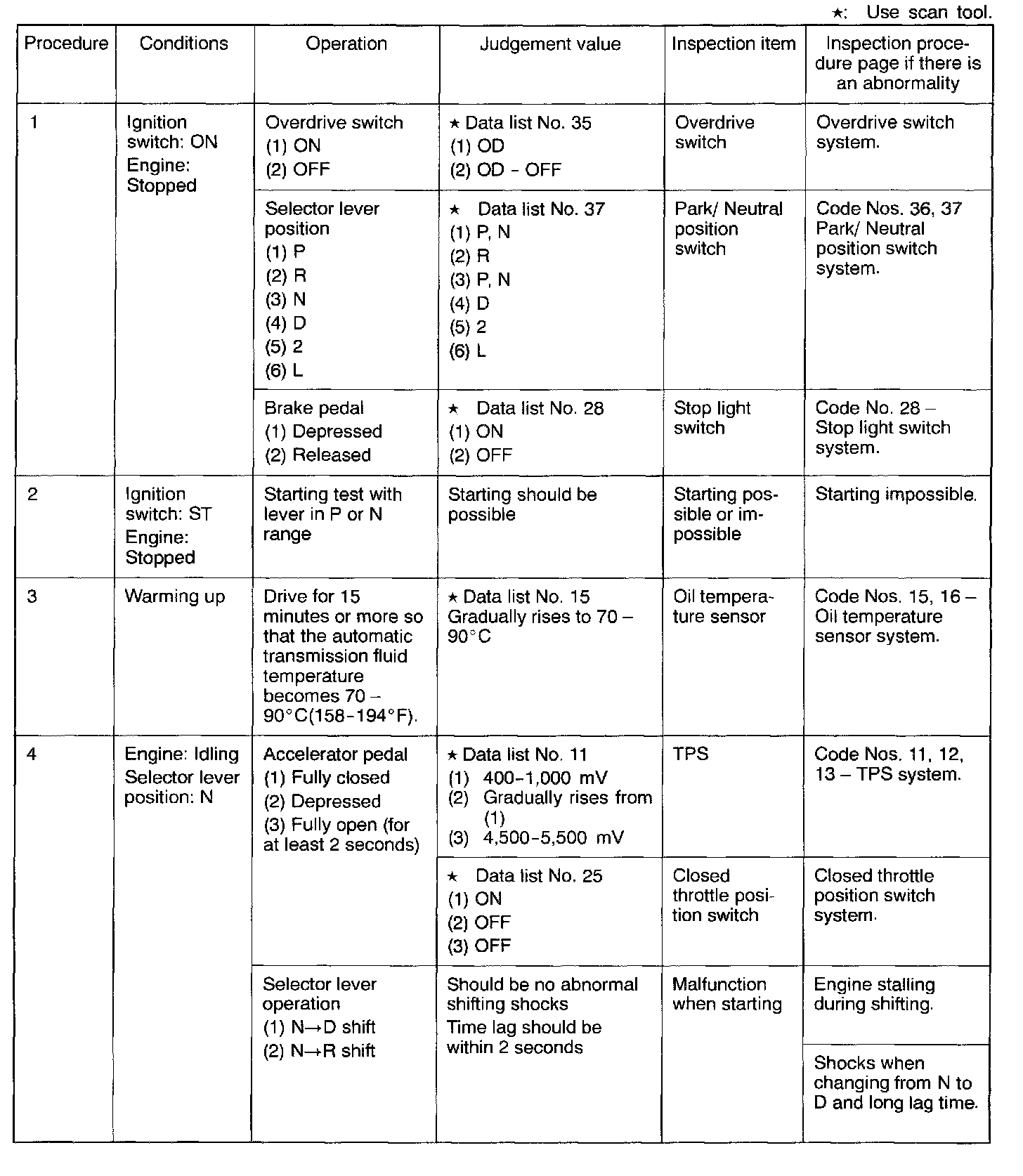

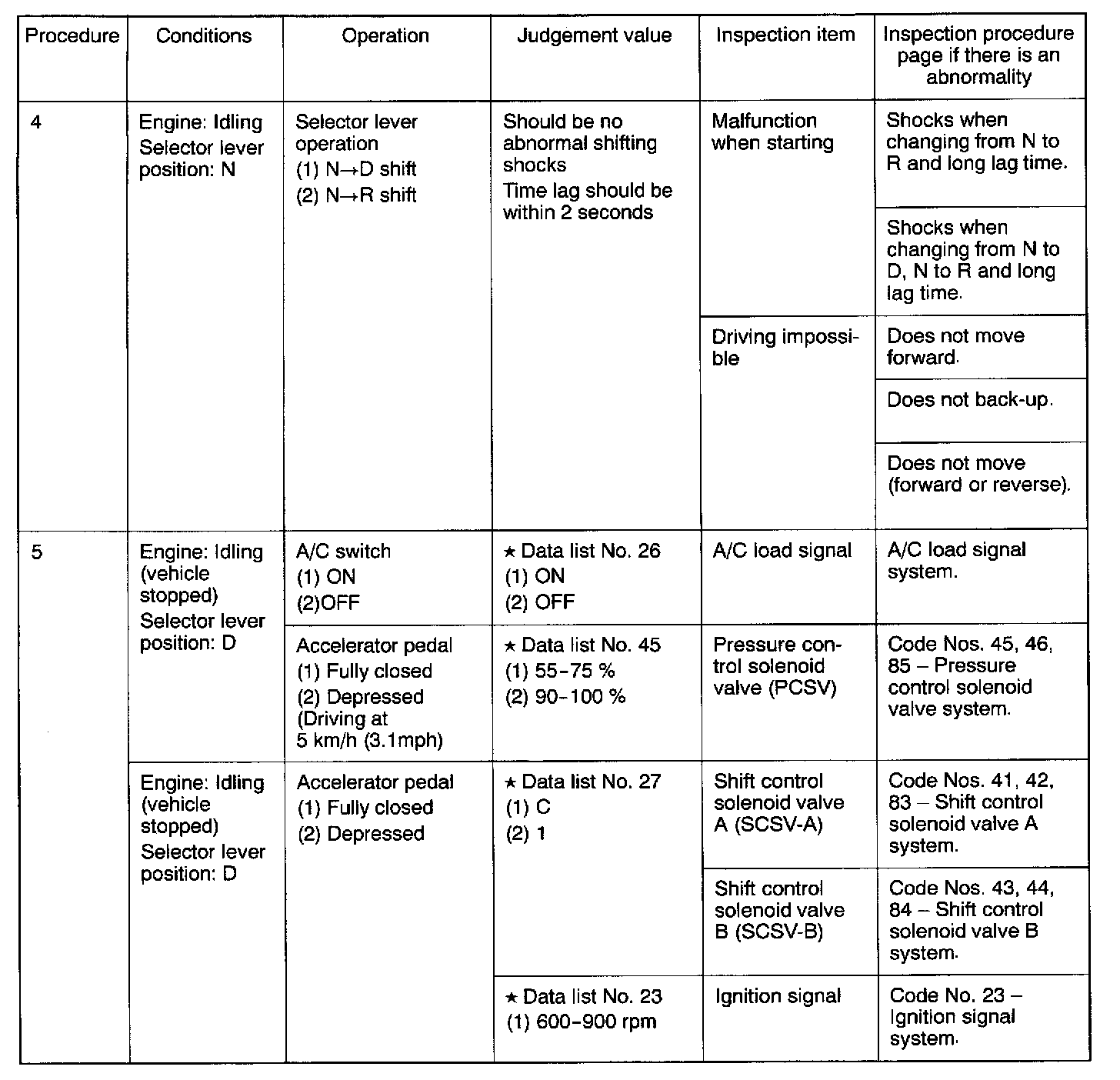

ROAD TEST

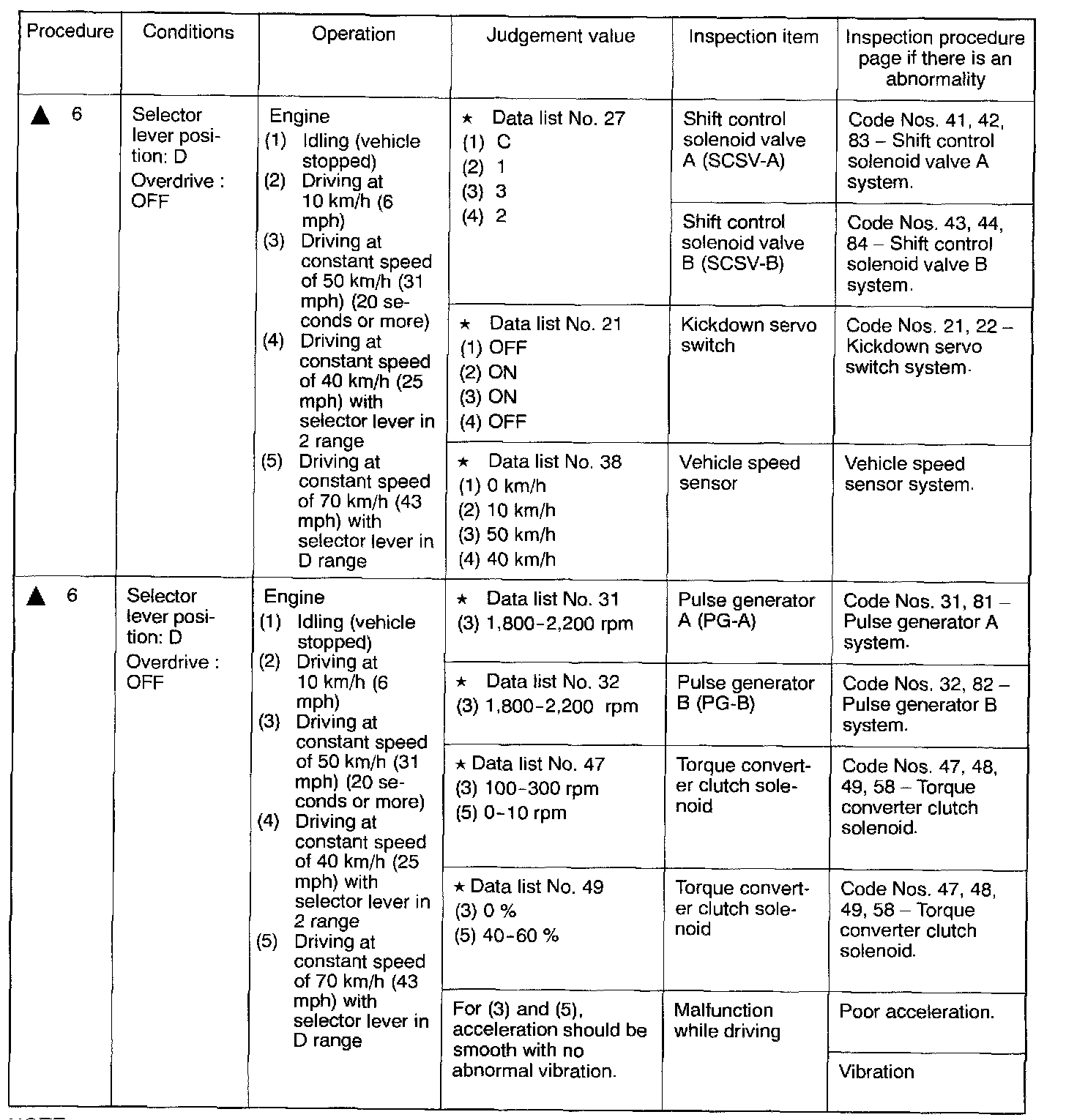

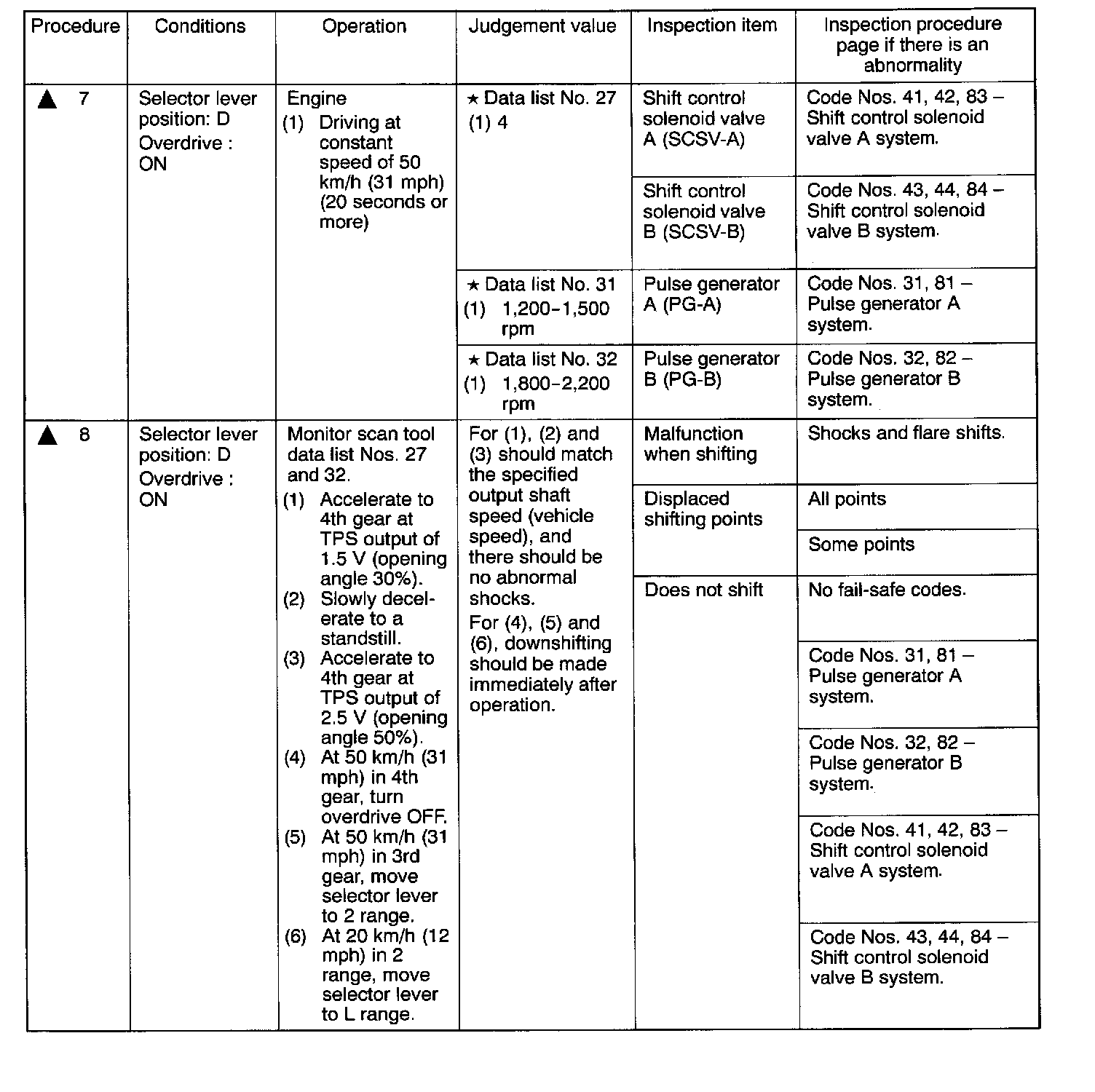

NOTE: Tests marked with a Triangle (Procedures 6-8) should be carried out on a road that is as straight and level as possible.
