Electrical Diagrams

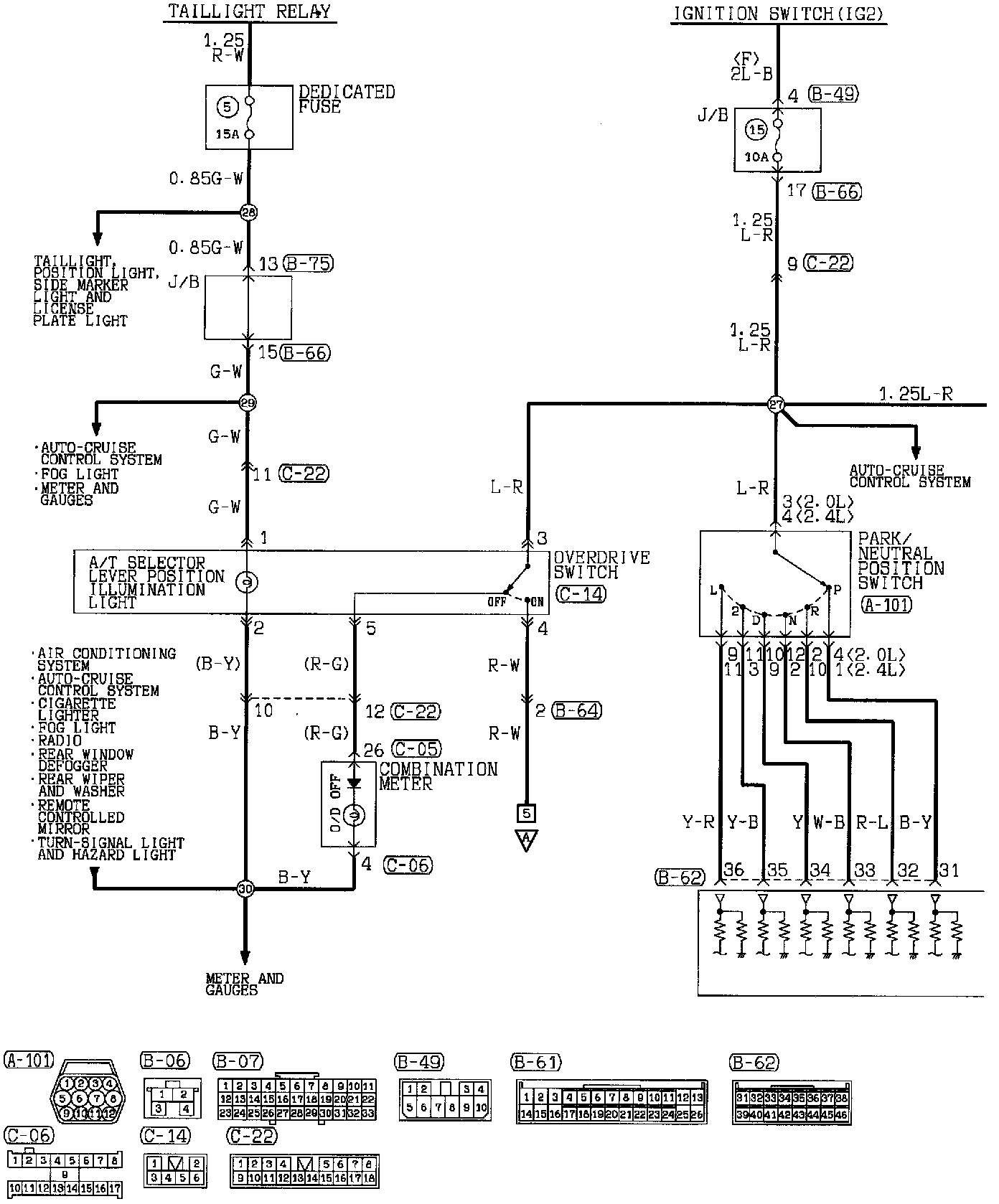

ELC 4-Speed Automatic Transaxle (Part 1 Of 6):

Combination Meter
Dedicated Fuse
ELC 4-Speed Automatic Transaxle Control Module
J/B
Park/Neutral Position Switch
Overdrive Switch

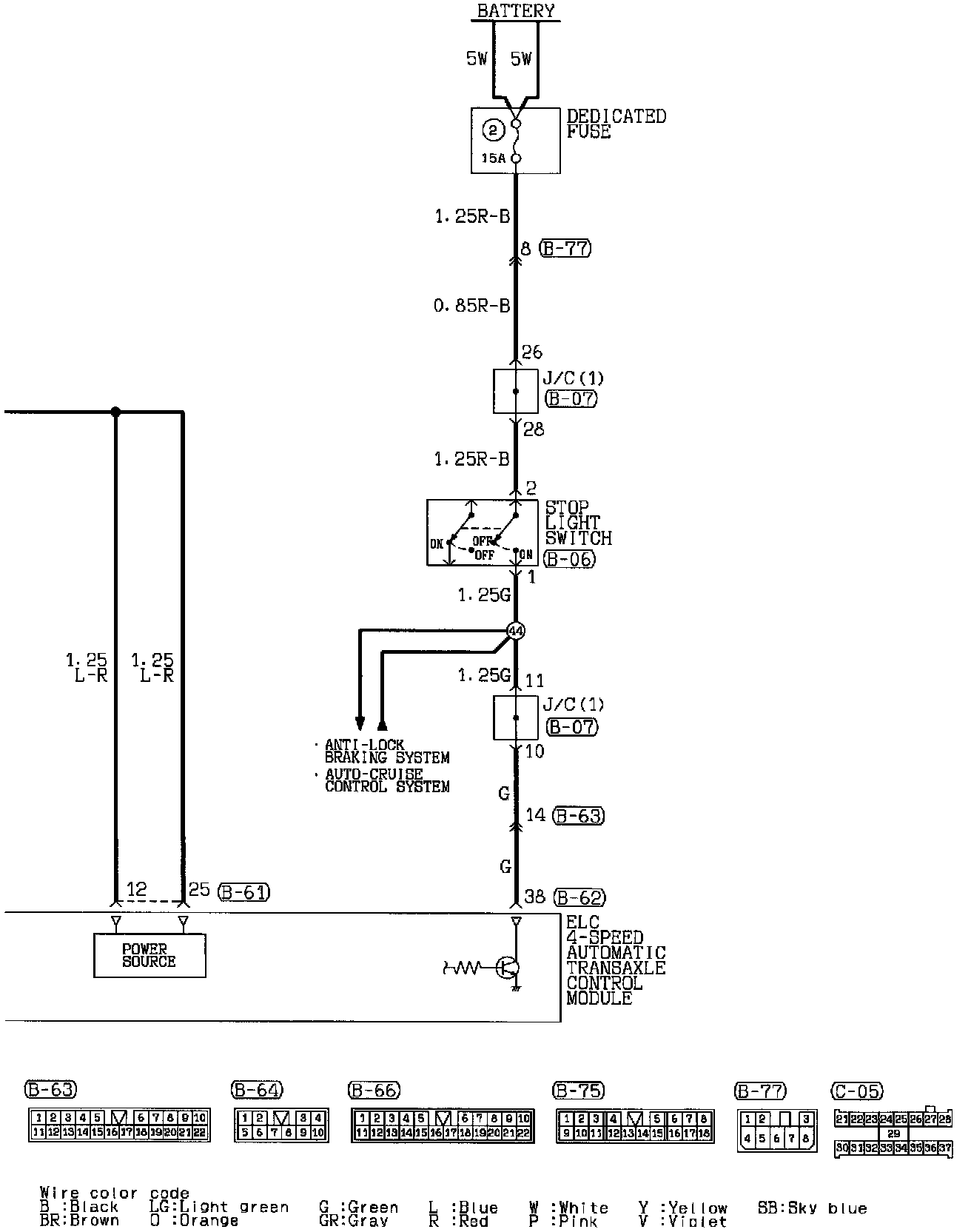

ELC 4-Speed Automatic Transaxle (Part 2 Of 6):

Dedicated Fuse
ELC 4-Speed Automatic Transaxle Control Module
- Power Source
J/C (1)
Stop Light Switch

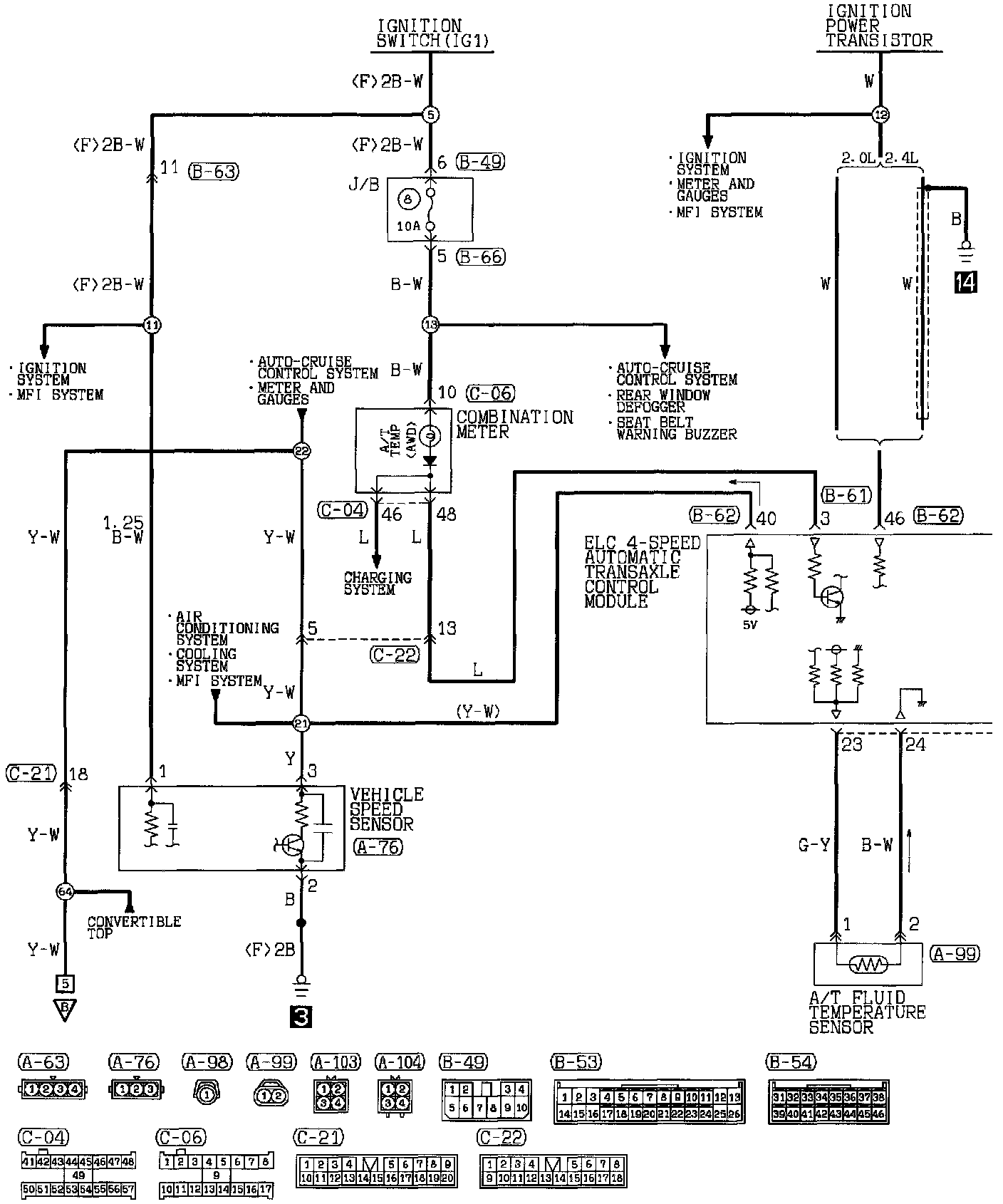

ELC 4-Speed Automatic Transaxle (Part 3 Of 6):

A/T Fluid Temperature Sensor
Combination Meter
ELC 4-Speed Automatic Transaxle Control Module
J/B
Vehicle Speed Sensor

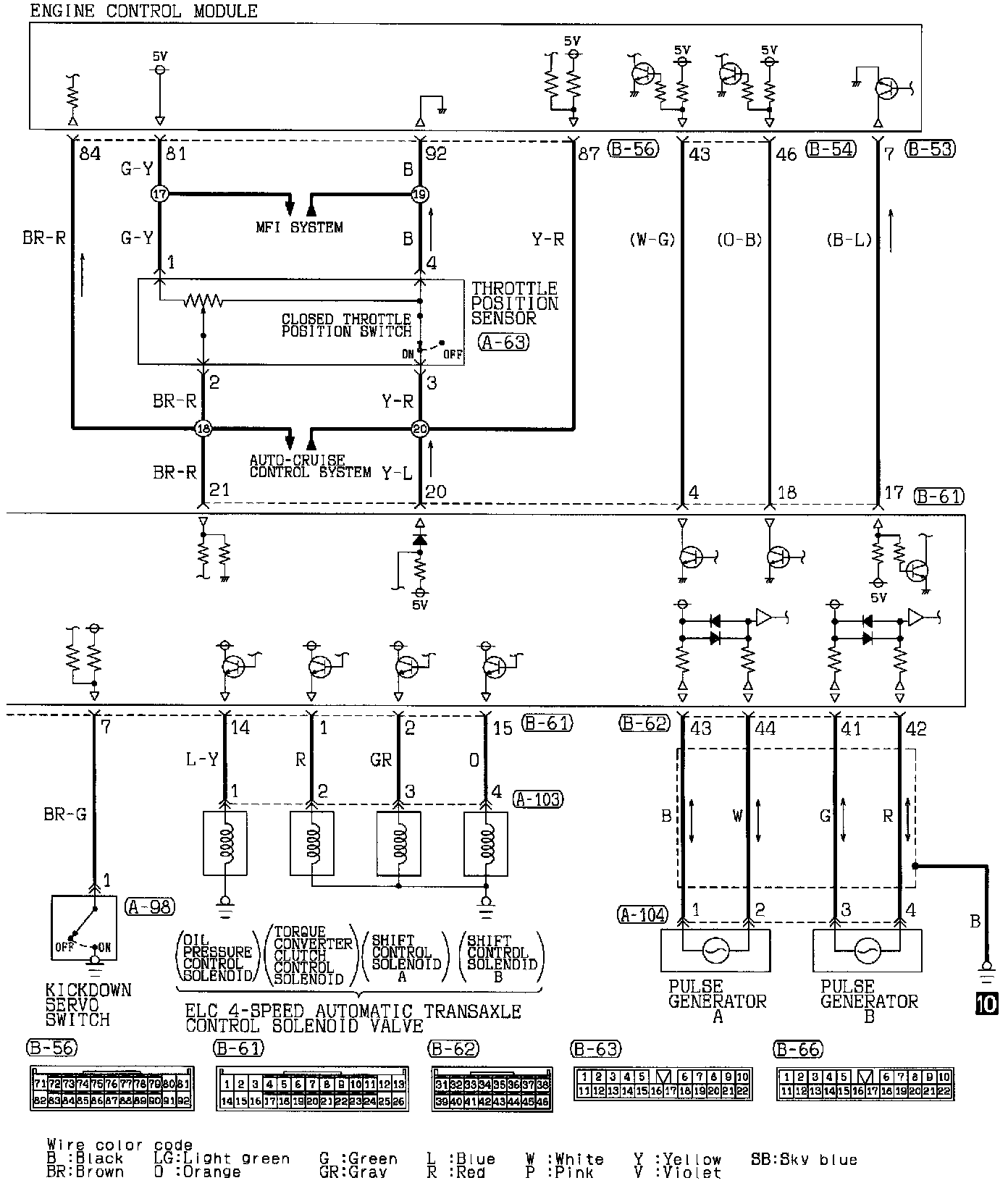

ELC 4-Speed Automatic Transaxle (Part 4 Of 6):

ELC 4-Speed Automatic Transaxle Control Module
ELC 4-Speed Automatic Transaxle Control Solenoid Valve
Engine Control Module
Kickdown Servo Switch
Pulse Generator A and B
Throttle Position Sensor

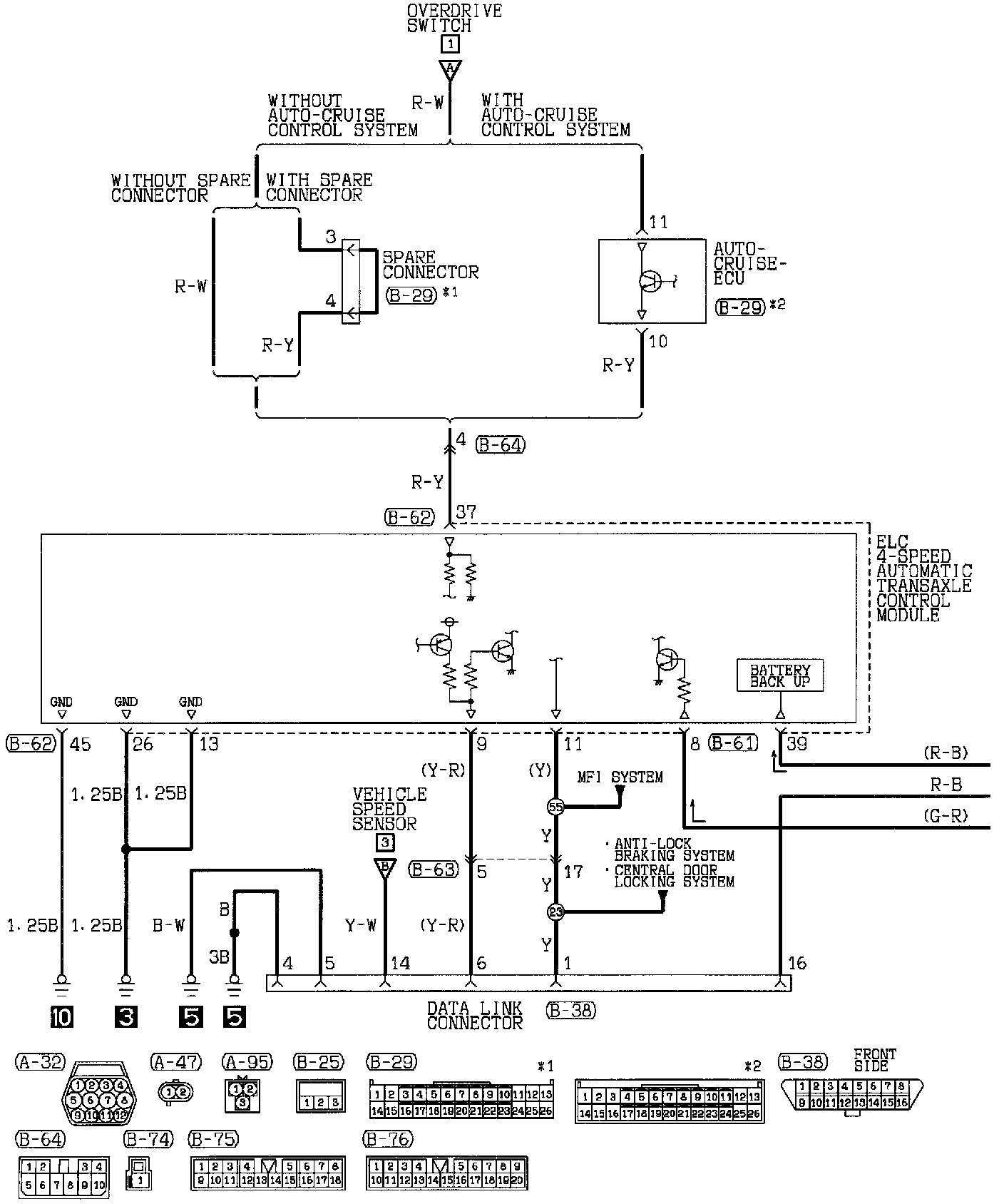

ELC 4-Speed Automatic Transaxle (Part 5 Of 6):

Auto-Cruise-ECU
Data Link Connector
ELC 4-Speed Automatic Transaxle Control Module
- Battery Back Up

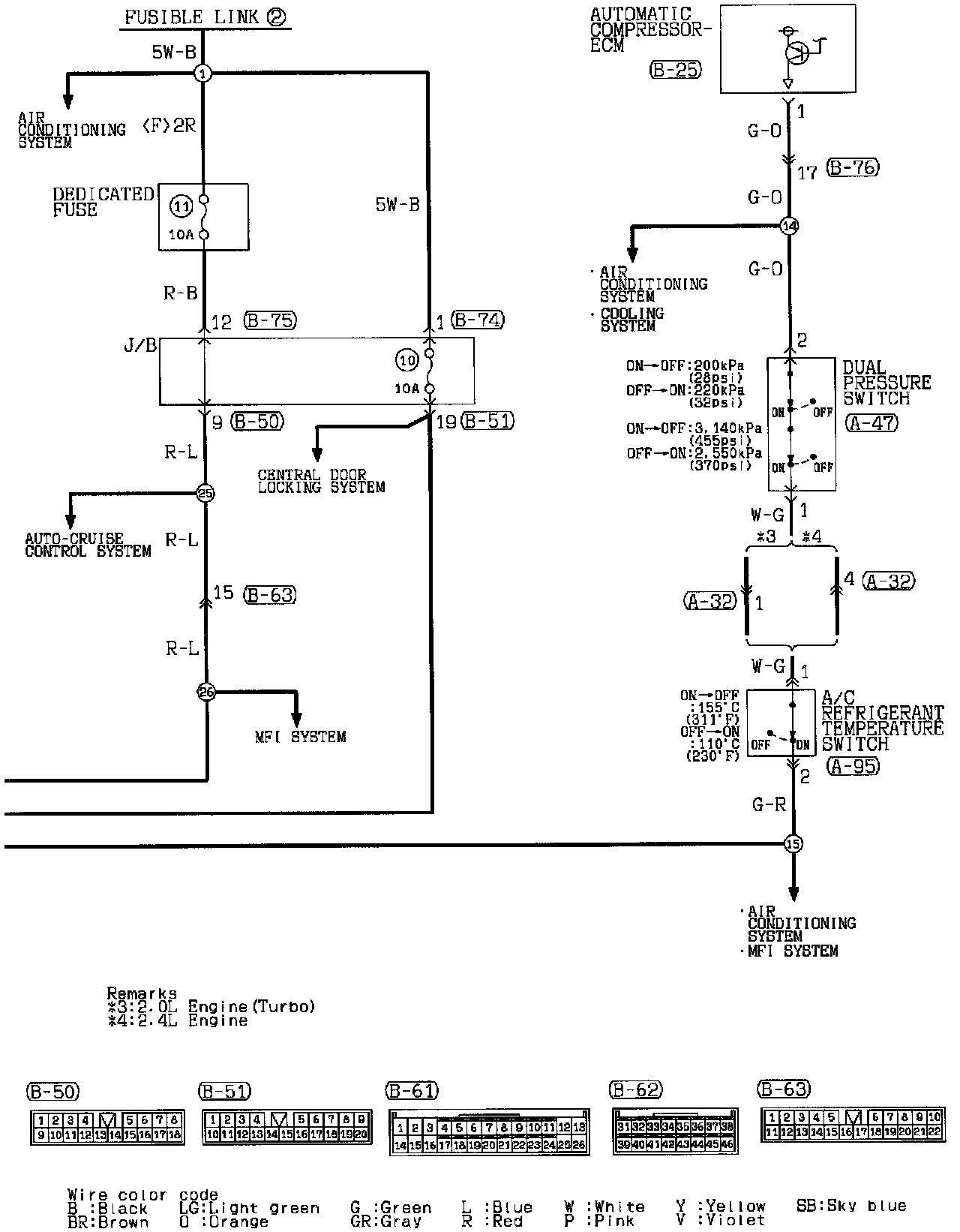

ELC 4-Speed Automatic Transaxle (Part 6 Of 6):

A/C Refrigerant Temperature Switch
Automatic Compressor-ECM
Dedicated Fuse
Dual Pressure Switch
J/B
