Component Tests

THROTTLE POSITION SENSOR CHECK




1. Disconnect the throttle position sensor connector.

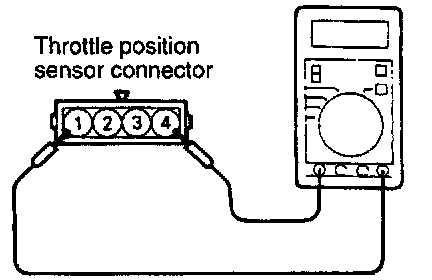

2. Measure the resistance between the throttle position sensor side connector terminal 1 and terminal 4.
Standard value: 3.5-6.5 K Ohms

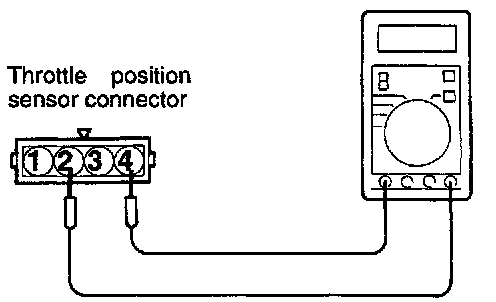

3. Measure the resistance between the throttle position sensor side connector terminal 2 and terminal 4.

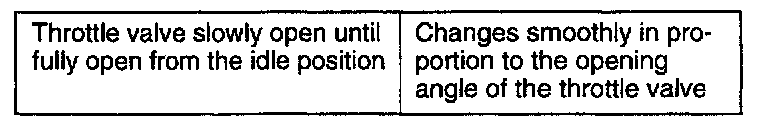

4. If the resistance is outside the standard value, or if it doesn't change smoothly, replace the throttle position sensor.

NOTE: Always adjust the throttle position sensor after replacement.
