Component Inspection

FUEL TANK DIFFERENTIAL PRESSURE SENSOR CHECK

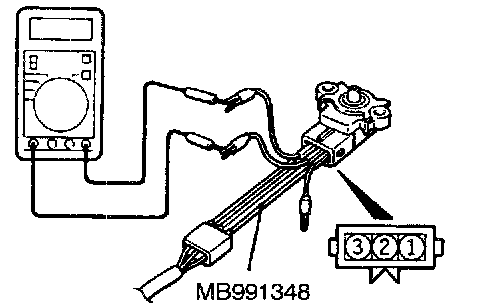

1. Disconnect the fuel tank differential pressure sensor connector and connect the special tool between the terminals of the disconnected connector
2. Turn the ignition switch to ON and take a reading of the following output voltage.
Between terminals (2) and (3)
Standard value: 2.0 - 3.0 V
