Powertrain Management: Locations

COMPONENT LOCATIONS

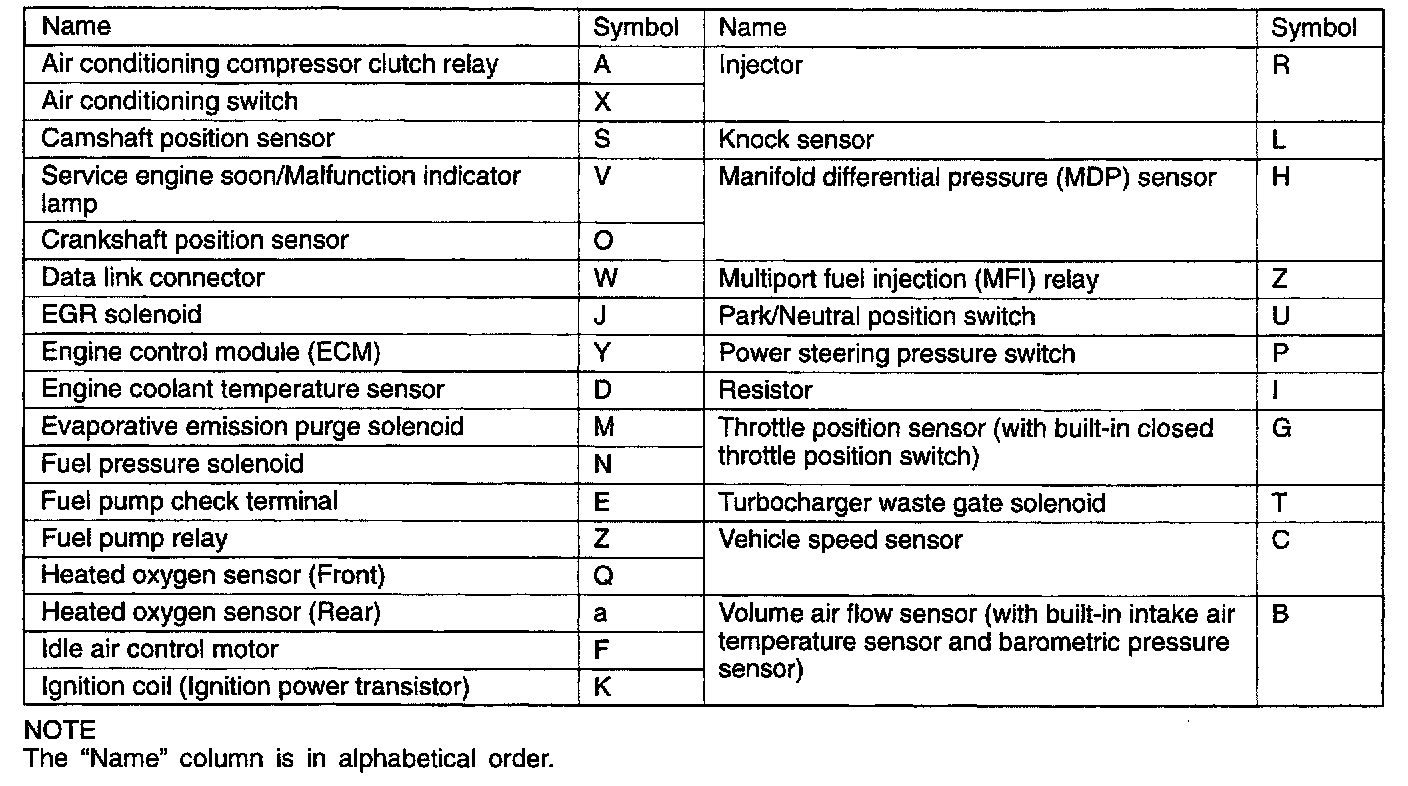

LOCATION CHART

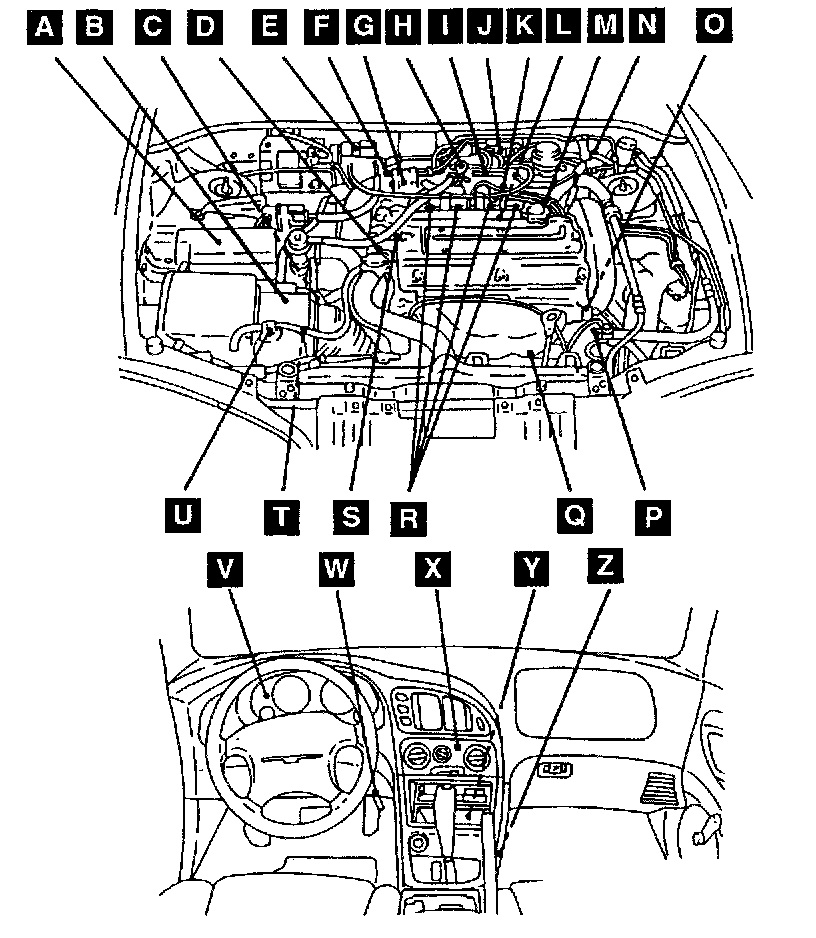

VEHICLE VIEWS

NOTE: For specific locations, refer to the individual component/subsystem
