Throttle Cable/Linkage: Service and Repair

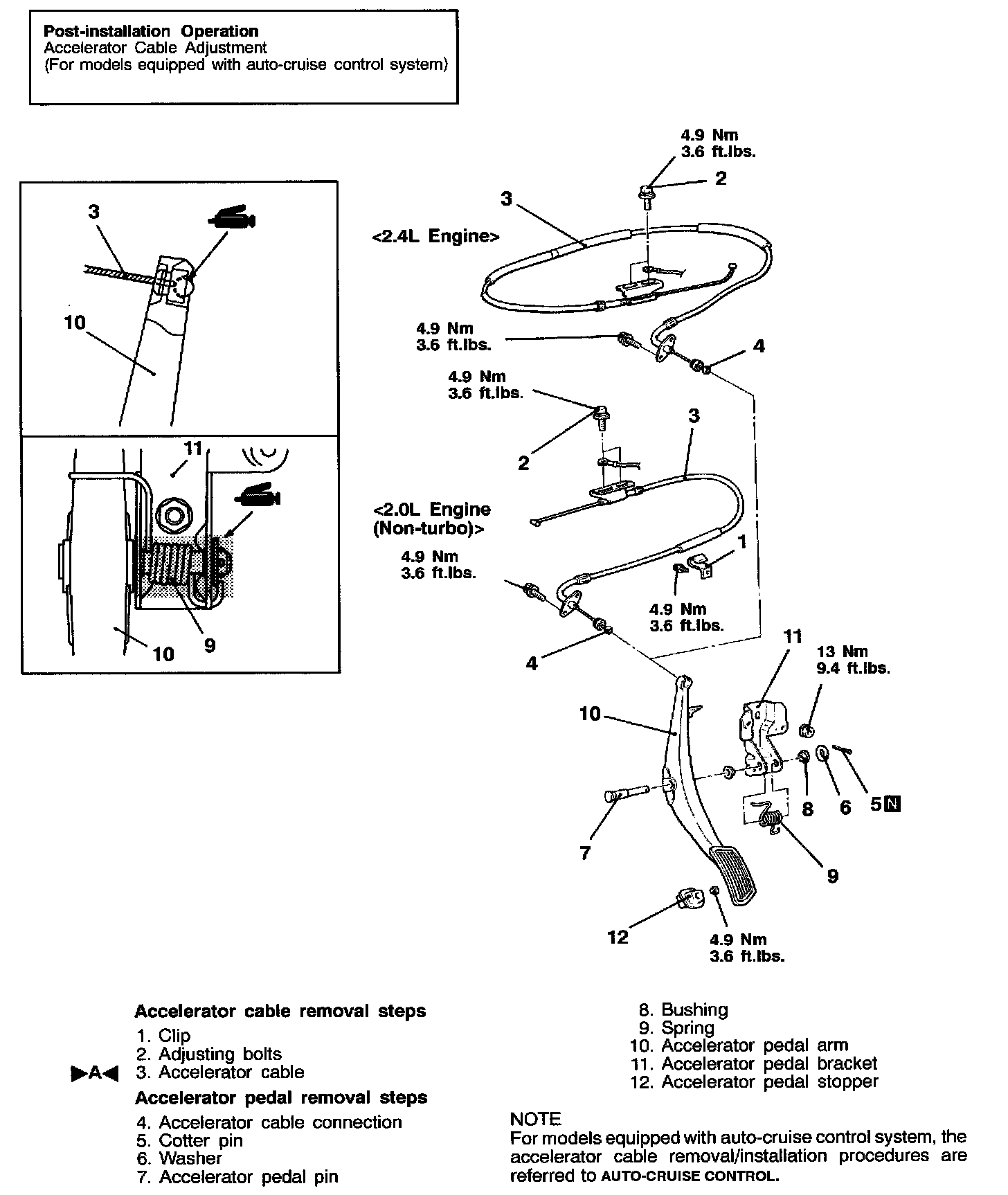

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

2.4L Engine:




>A< ACCELERATOR CABLE INSTALLATION

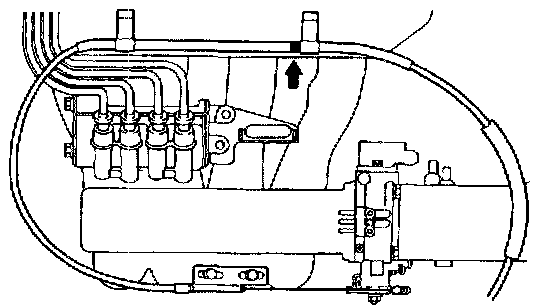

Clamp the accelerator cable so that its marking is as shown.
