Removal and Installation

COMPONENTS

REMOVAL STEPS
1. Accelerator cable connection
2. Air hose "C" <2.0L Engine (Turbo)>
3. Air intake hose <2.4L Engine>
4. TPS connector
5. IAC motor connector
6. Vacuum hose connection
7. Heater hose connection
8. Charge air cooler fitting <2.0L Engine (Turbo)>
9. Gasket <2.0L Engine (Turbo)>
10. Throttle body
11. Throttle body gasket

INSTALLATION STEPS
Installation is in the reverse order of Removal.
1. Accelerator cable connection
2. Air hose "C" <2.0L Engine (Turbo)>
3. Air intake hose <2.4L Engine>
4. TPS connector
5. IAC motor connector
6. Vacuum hose connection
7. Heater hose connection
8. Charge air cooler fitting <2.0L Engine (Turbo)>
9. Gasket <2.0L Engine (Turbo)>
10. Throttle body
11. Throttle body gasket

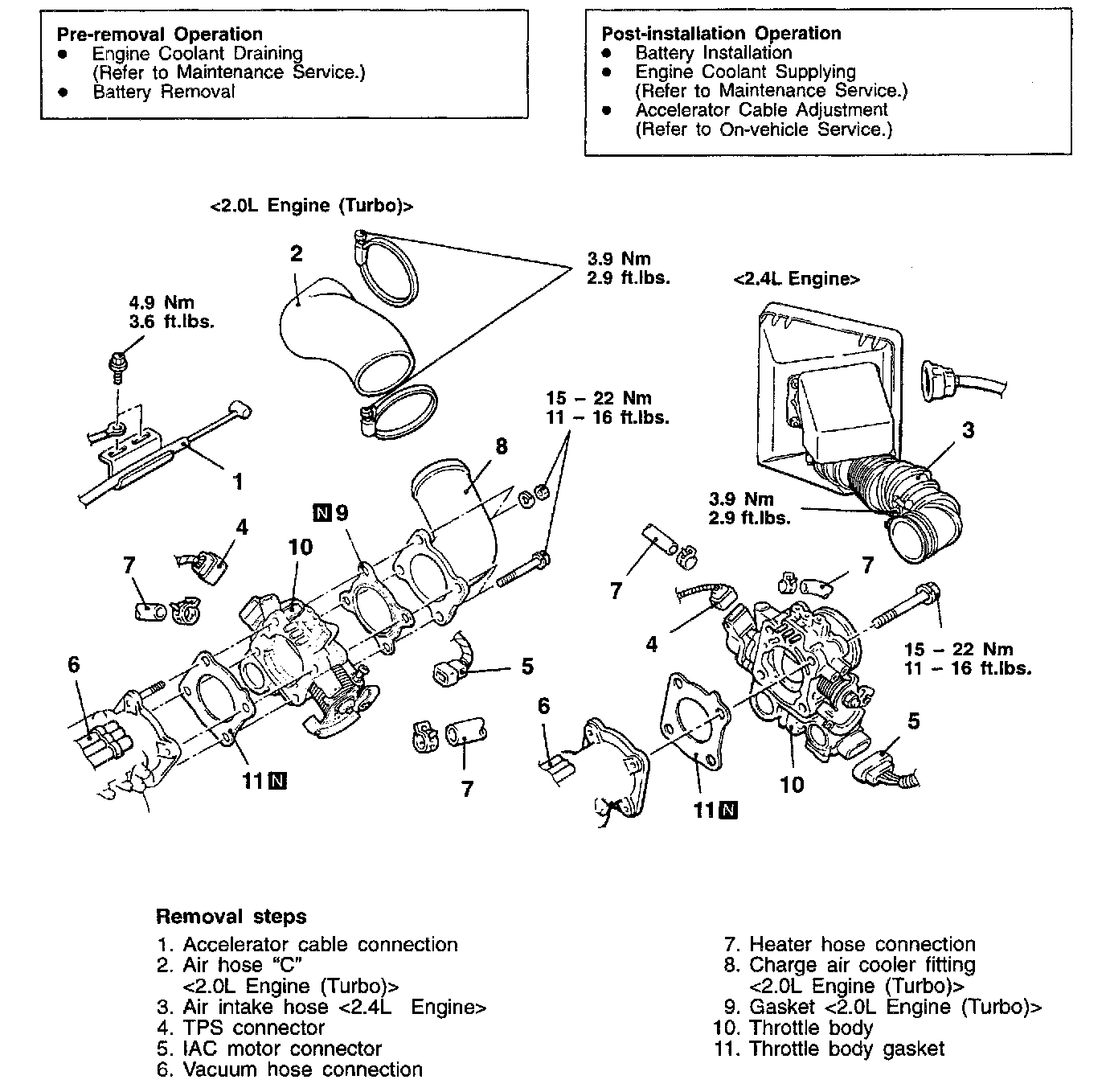

Install the throttle body gasket so that the projection is where shown in the illustration.

CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.
