Fuel Tank Cut Valve: Testing and Inspection
FUEL CUT OFF VALVE CHECK

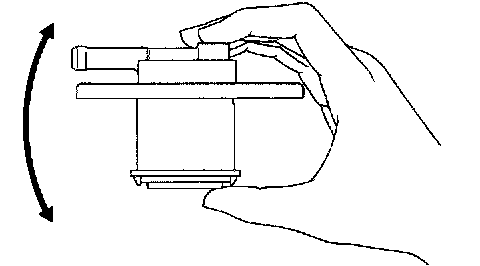

If the sound of the float valve moving (knocking sound) can be heard when the valve assembly is gently shaken up and down, then the valve is okay.
