Fuel Pressure Control Solenoid: Testing and Inspection

FUEL PRESSURE SOLENOID CHECK

NOTE: When disconnecting the vacuum hose, always make a mark so that it can be reconnected at original position.

1. Disconnect the vacuum hose from the solenoid valve.
2. Disconnect the harness connector.

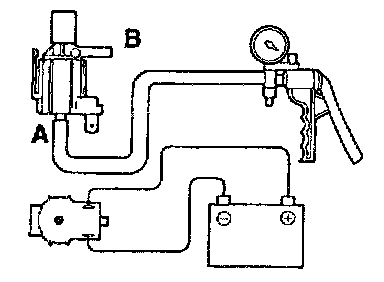

3. Connect a hand vacuum pump to the nipple.

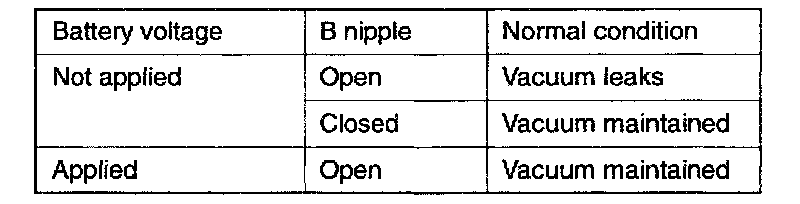

4. Connect a battery to the solenoid valve and apply a vacuum to check air-tightness.

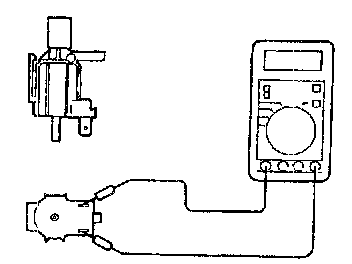

5. Measure the resistance between the terminals of the solenoid valve.
Standard value: 36-44 Ohms [at 20°C (68°F)]
