Removal and Installation

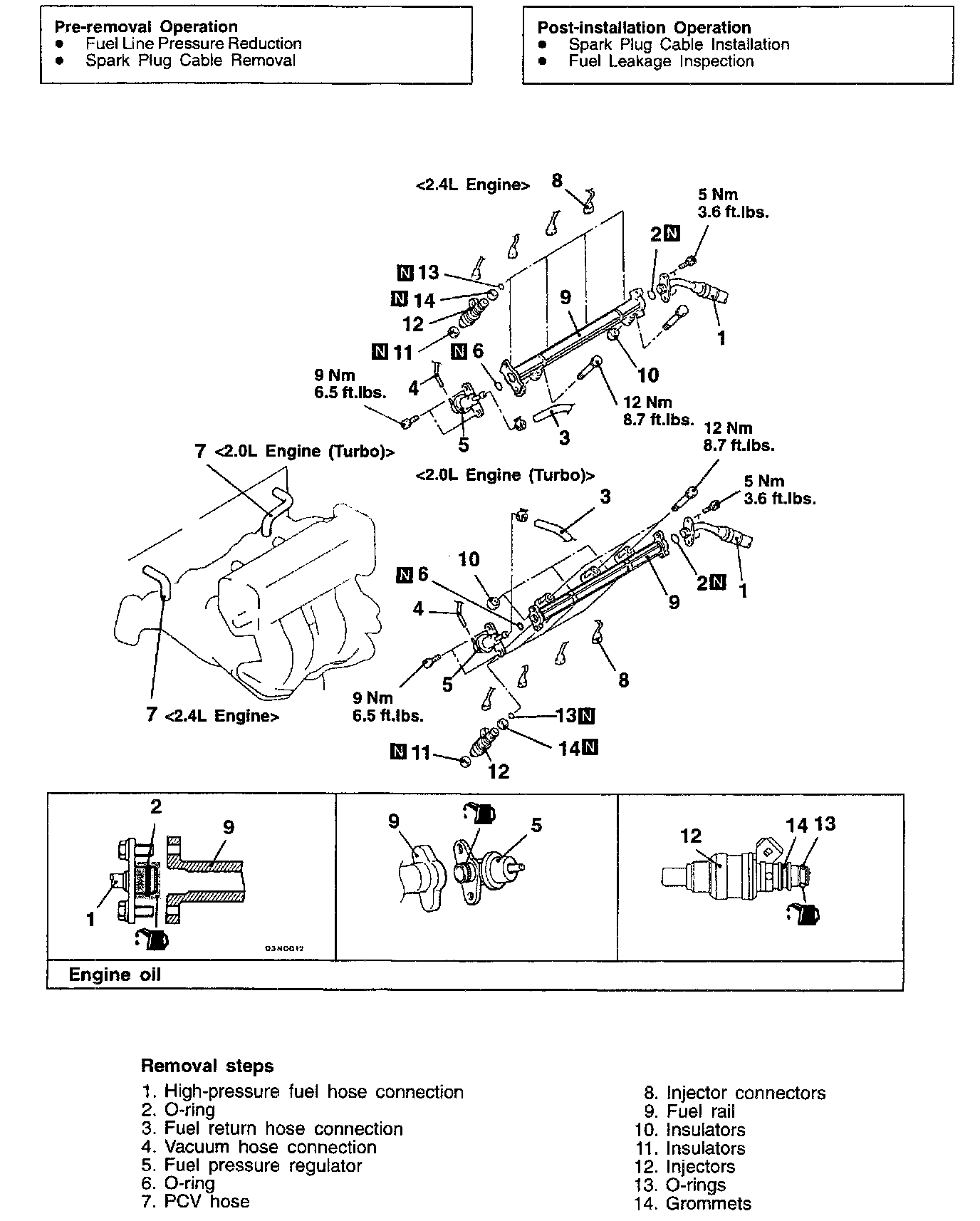

COMPONENTS

REMOVAL STEPS

1. High-pressure fuel hose connection
2. O-ring
3. Fuel return hose connection
4. Vacuum hose connection
5. Fuel pressure regulator
6. O-ring
7. PCV hose
8. Injector connectors
9. Fuel rail

Remove the fuel rail (with the injectors attached to it.)

CAUTION: Do not drop the injector.

10. Insulators
11. Insulators
12. Injectors

Remove the fuel rail (with the injectors attached to it.)

CAUTION: Do not drop the injector.

13. 0-rings
14. Grommets

INSTALLATION STEPS
Installation is in the reverse order of Removal.

1. High-pressure fuel hose connection

When connecting the high-pressure fuel hose to the fuel rail, apply a small amount of clean engine oil to the hose union, and then insert, being careful not to damage the 0-ring.

CAUTION: Do not let the engine oil get into the fuel rail.

2. O-ring
3. Fuel return hose connection
4. Vacuum hose connection
5. Fuel pressure regulator

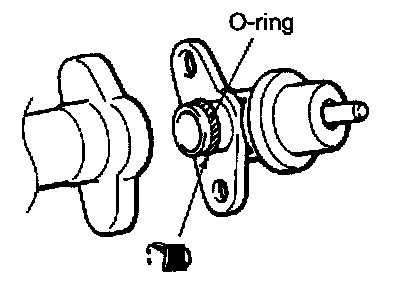

1. Apply a small amount of clean engine oil to a new O-ring and insert it to the fuel rail carefully.

CAUTION: Do not let the engine oil get into the fuel rail.

2. If the fuel pressure regulator does not move smoothly, the O-ring may be folded. Then, remove the regulator to check the O-ring for damage.
3. Tighten the regulator to the specified torque.
Tightening torque: 8.8 Nm (6.5 ft.lbs.)

6. O-ring
7. PCV hose
8. Injector connectors
9. Fuel rail
10. Insulators
11. Insulators
12. Injectors

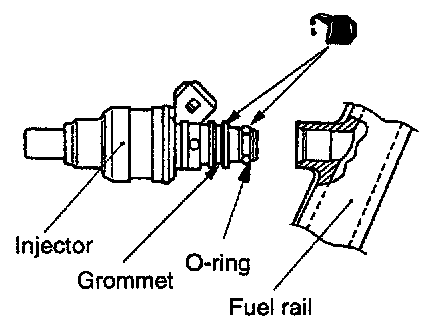

1. Apply a small amount of clean engine oil to the 0-ring.

CAUTION: Do not let the engine oil get into the fuel rail.

2. While turning the injector to the left and right, install it to the fuel rail.
3. Check to be sure that the injector turns smoothly. If it does not turn smoothly, the 0-ring may be trapped, remove the injector and then re-insert it into the fuel rail and check once again.

13. 0-rings
14. Grommets
