Canister Vent Valve: Testing and Inspection

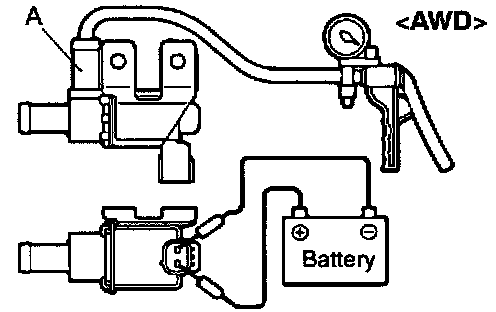

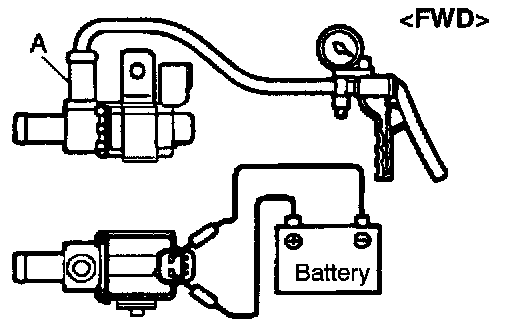

1. Connect a hand vacuum pump to nipple (A) of the solenoid.

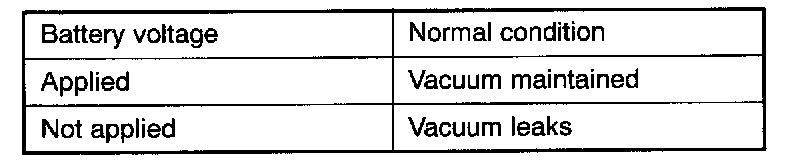

2. Check airtightness by applying a vacuum with voltage applied directly from the battery to the evaporative emission ventilation solenoid and without applying voltage.

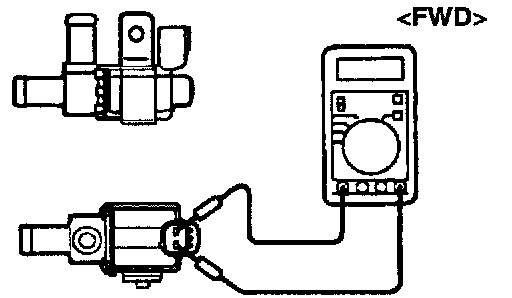

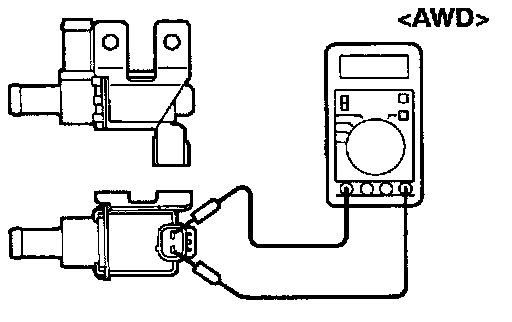

3. Measure the resistance between the terminals of the solenoid.
Standard value: 17 - 21 Ohm (at 20° C (68° F)]
