Normal Scan Data Values

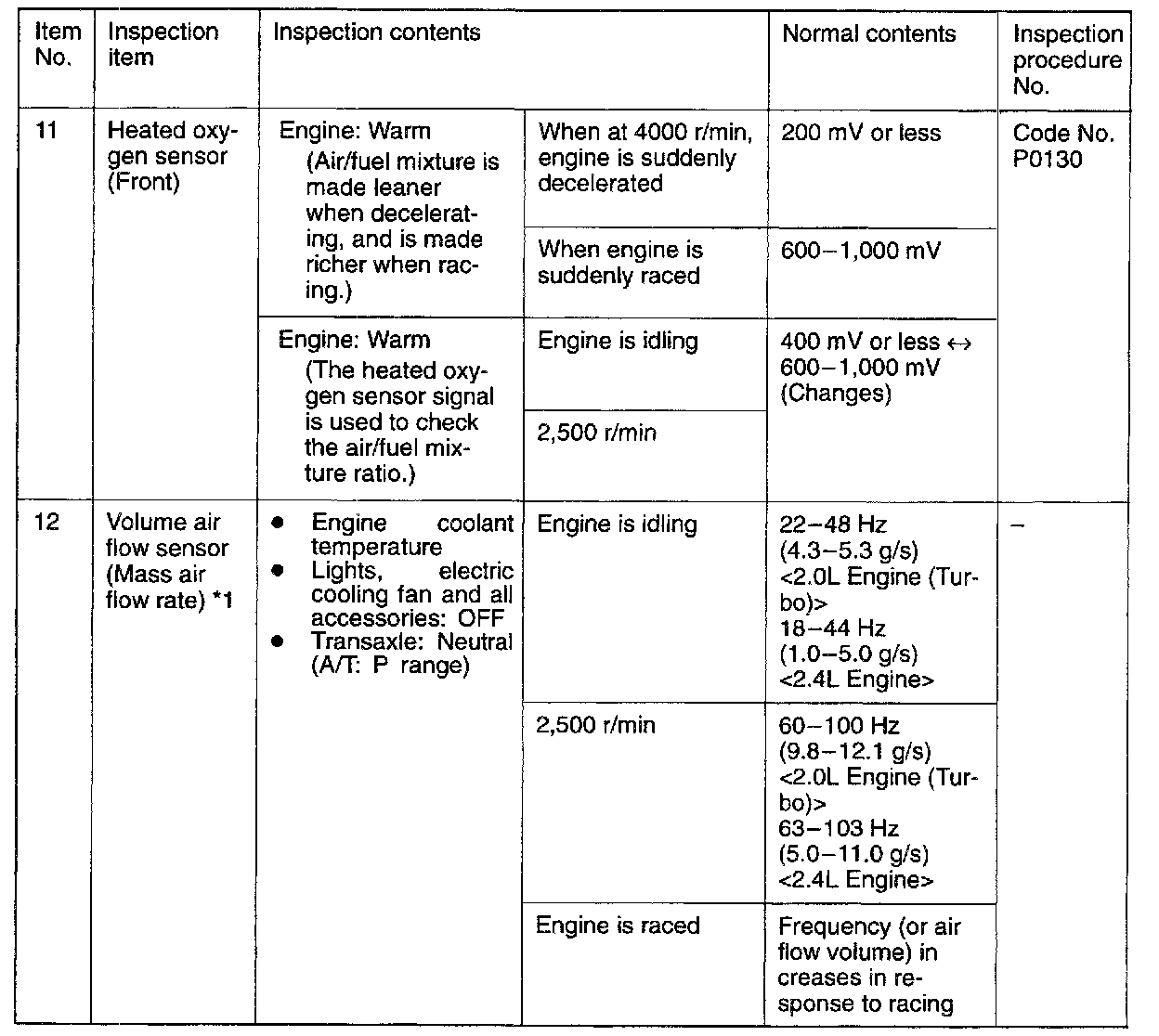

Items 11, 12:

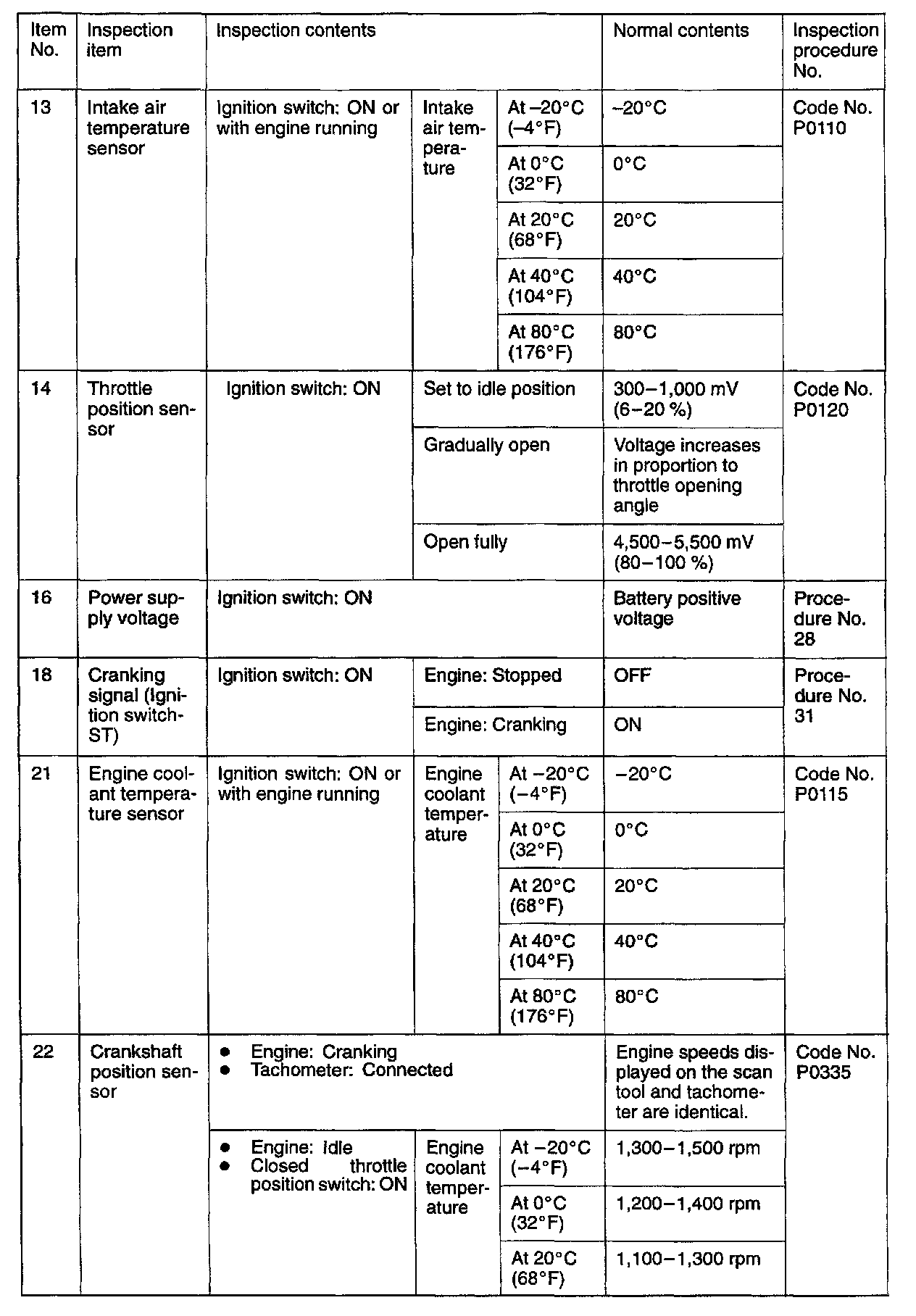

Items 13,14,16,18,21:

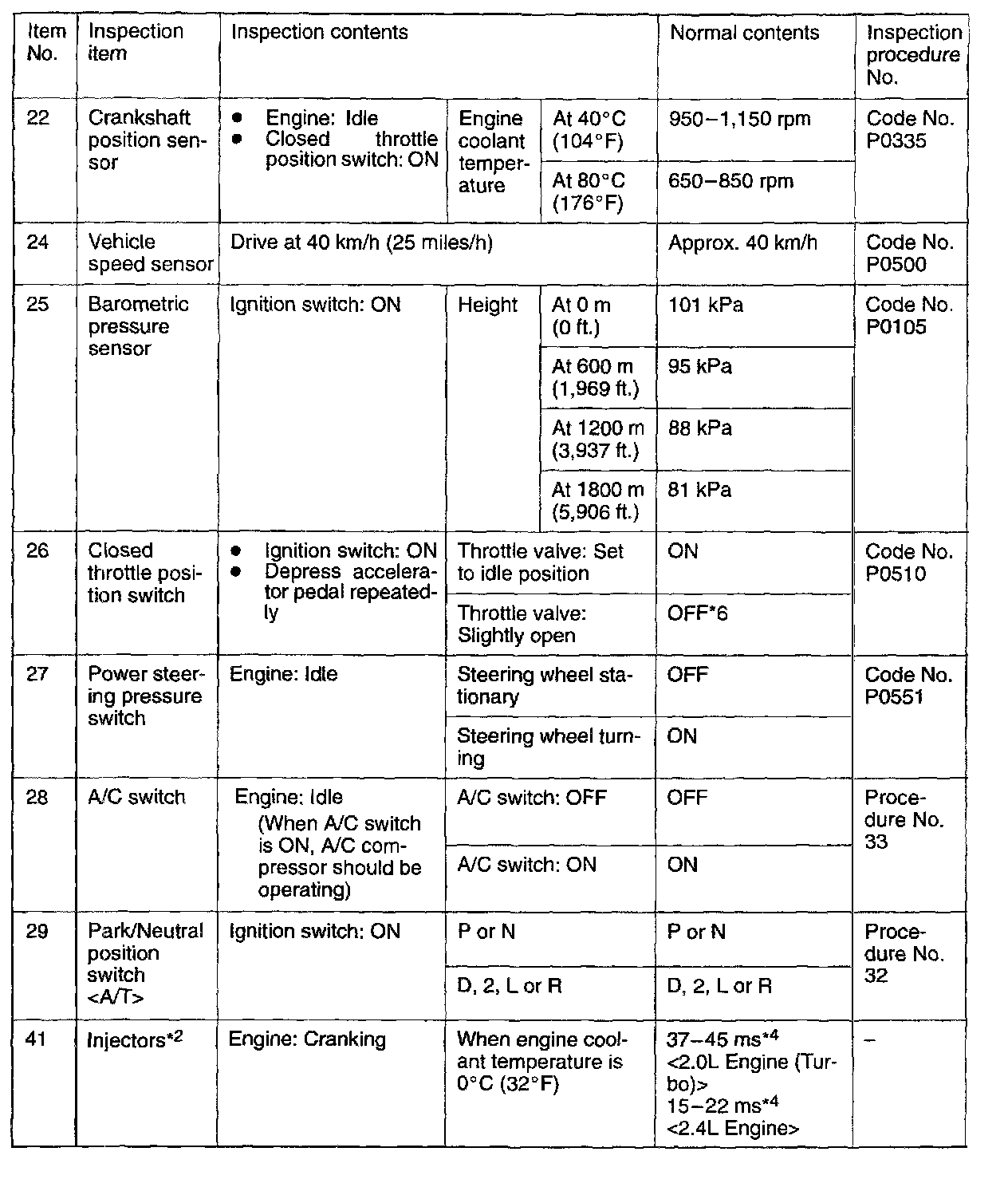

Items 22,24,25,26,27,28,29,41:

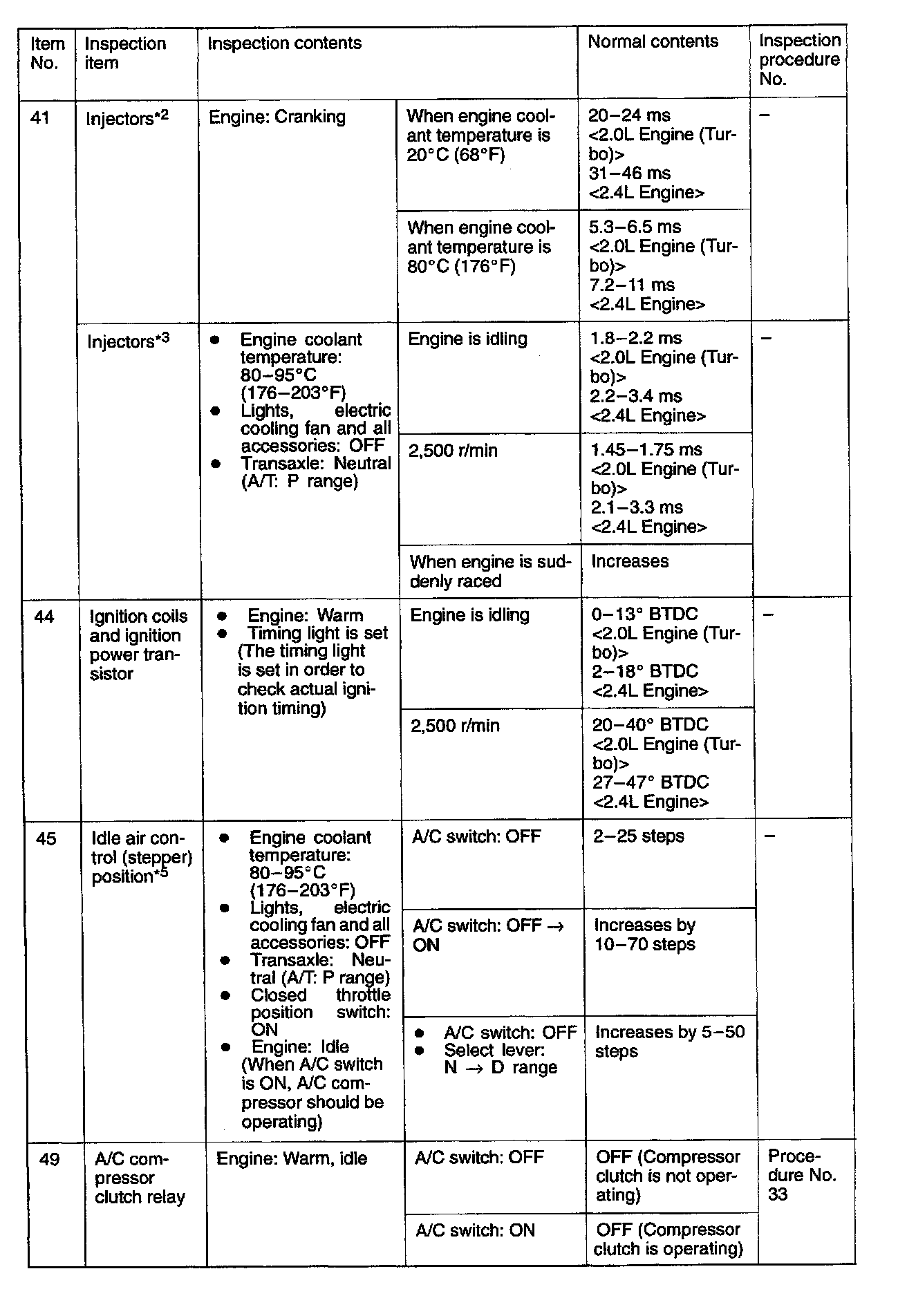

Items 41,44,45,49:

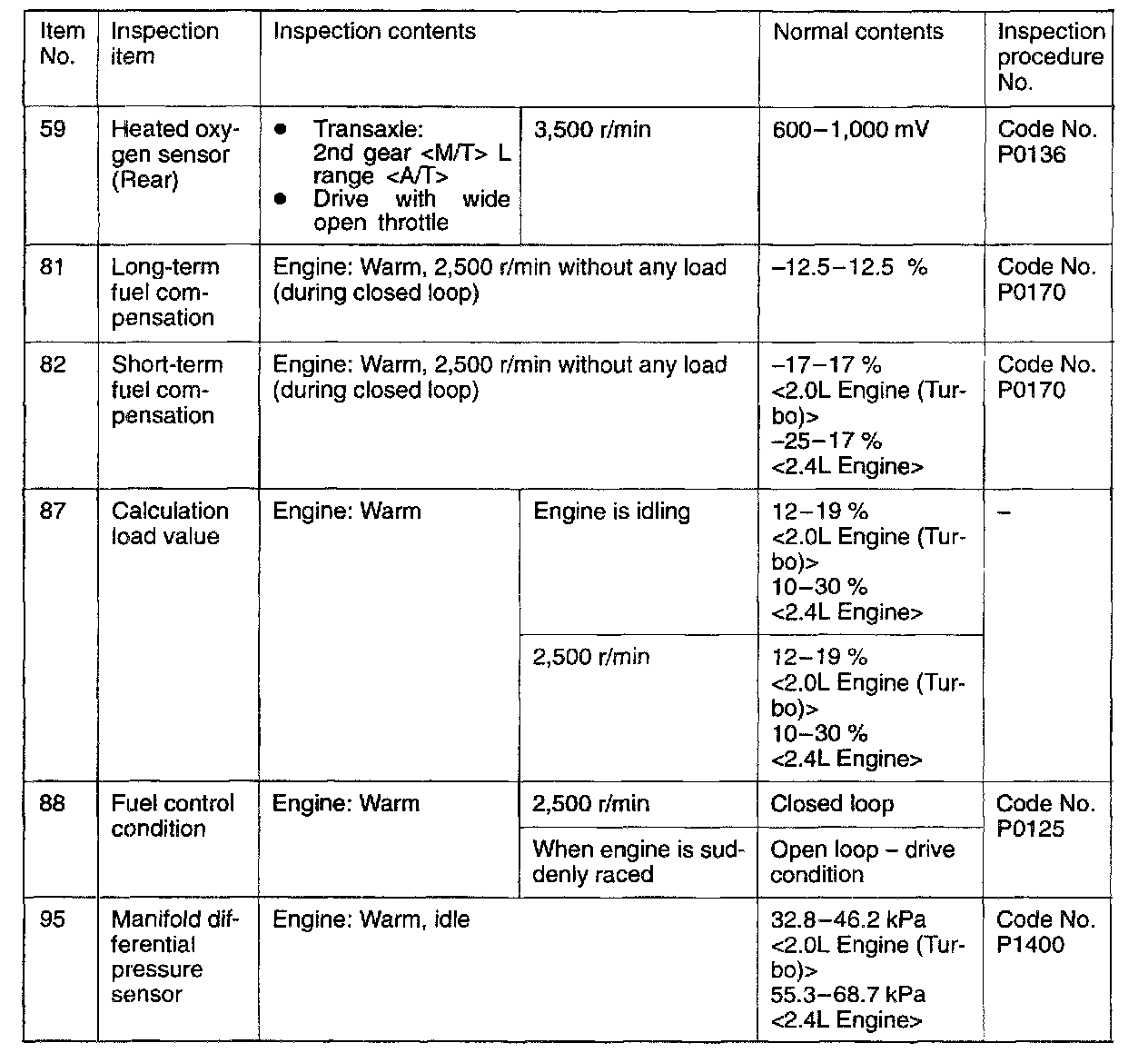

Items 59,81,82,87,88,95:

NORMAL SCAN DATA VALUES

NOTES FOR DATA LIST ITEMS
*1: In a new vehicle [driven approximately 500 km (300 mile) or less], the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency.
*2: The injector drive time represents the time when the cranking speed is at 250 rpm or below when the power supply voltage is 11 V.
*3: In a new vehicle [driven approximately 500 km (300 mile) or less], the injector drive time is sometimes 10 % longer than the standard time.
*4: Fuel is injected into all cylinders simultaneously.
*5: In a new vehicle [driven approximately 500 km (300 mile) or less], the step of the stepper motor is sometimes 30 steps greater than the standard value.
*6: If the throttle position sensor voltage rises 50 - 100 mV from the voltage when the engine is at idle and the closed throttle position switch turns from on to off at this time, the sensors are normal. If the throttle position sensor voltage rises 100 mV from the voltage when the engine is at idle, the throttle valve opens, and the closed throttle position switch turns from on to off at this time, the sensors should be adjusted.
