Component Inspection

INSPECTION PROCEDURE USING AN ANALYZER

VOLUME AIR FLOW SENSOR




Measurement method
1. Disconnect the volume air flow sensor connector, and connect the special tool (test harness: MB991348) in between. (All terminals should be connected.)

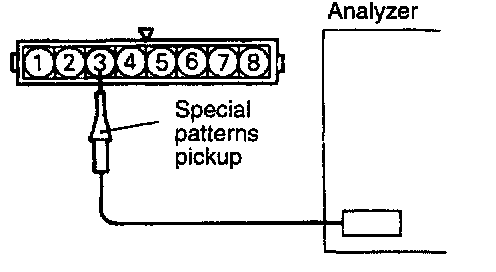

2. Connect the analyzer special patterns pickup to volume air flow sensor connector terminal 3.

Alternate method (Test harness not available)
1. Connect the analyzer special patterns pickup to ECM terminal 90.

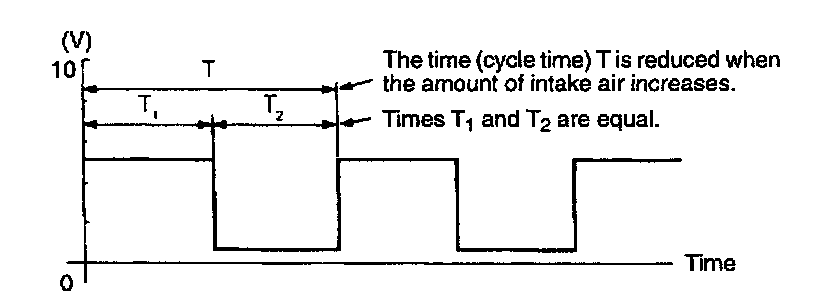

Standard Wave Pattern

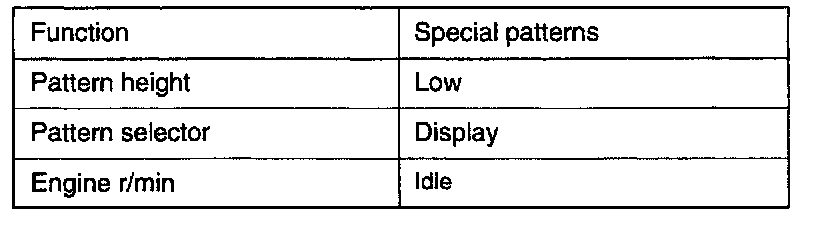

Observation conditions




Standard wave pattern

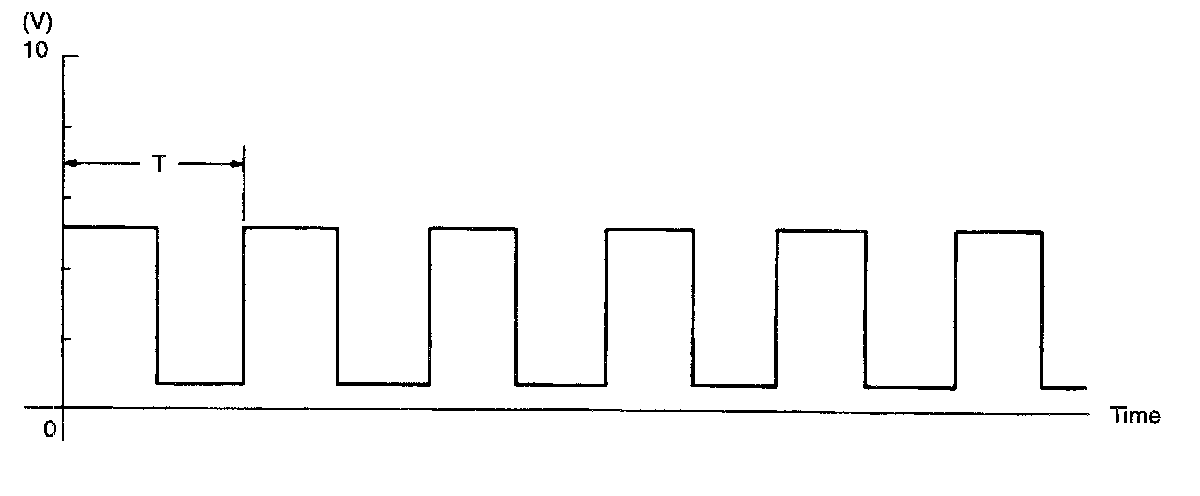

Observation conditions (pattern changes with engine speed changes.)

Wave pattern observation points
1. Check to be sure that cycle time T becomes shorter and the frequency increases when the engine speed is increased.




Examples of abnormal wave patterns

Example 1

Cause of problem
- Sensor interface malfunction

Wave pattern characteristics

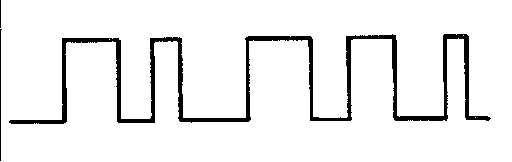

- Rectangular wave pattern is output even when the engine is not started.

Example 2

Cause of problem
- Damaged rectifier or vortex generation column

Wave pattern characteristics
- Unstable wave pattern with non-uniform frequency. However, when an ignition leak occurs during acceleration, the wave pattern will be distorted temporarily, even if the volume air flow sensor is normal.
