Rear

HUB BOLT REPLACEMENT
1. Remove the caliper assembly and support it with wire so that it does not fall.
2. Remove the brake drum and brake disc.
3. For vehicles with disc brakes, remove the shoe and lining assembly.

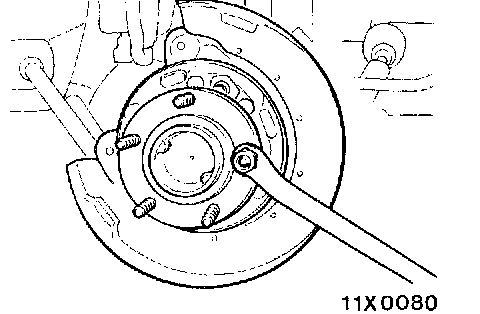

4. Pull the hub bolt out using the special tool.

NOTE: For vehicles with drum brakes, the hub bolts should be removed near the retainer spring installation position in order to maintain enough clearance for removal.

CAUTION: Be sure to tie the cord of the special tool to a nearby part.





5. Use the wheel nuts to securely install the new hub bolts, while being careful of the serrations of the hub bolts and hub.
