Alignment: Testing and Inspection

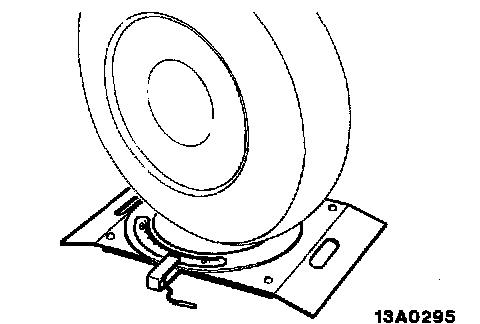

1. Locate front wheels on turning radius gauge and measure steering angle.

Standard value:
Inside wheel: FWD 32° 30' ± 2°; AWD 31° 30' ± 2°
Outside wheel: FWD 27° 00'; AWD 26° 30'

2. When the angle is not within the standard value, the toe is probably incorrect. Adjust toe and recheck steering angle.
