Rear

PROCEDURE

Measure wheel alignment with alignment equipment on level ground. The rear suspension and wheels should be serviced to the normal condition prior to wheel alignment.

TOE-IN





Standard value: 3 ± 3 mm (0.12 ± 0.12 inch)

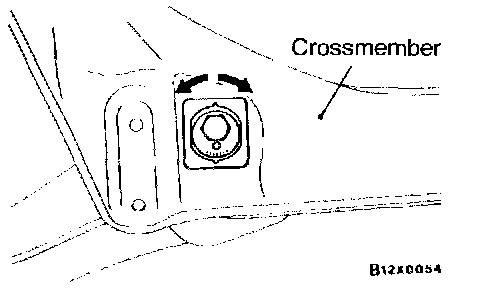

Turn the toe control arm mounting bolt to the left or right by equal amounts to adjust.

L.H.: Turning clockwise toe-out direction
R.H.: Turning clockwise toe-in direction

Furthermore, toe adjustment can be made at graduations of approximately 1.3 mm (0.05 inch).

CAMBER

Standard value:
1°40' ± 30' FWD (Vehicles with 16-inch wheels)
1°20' ± 30' FWD (Vehicles with 14-inch wheels), AWD

NOTE:
1. Camber is preset at the factory and can not be adjusted.
2. If camber is not within the standard value, check and replace bent or damaged parts.
