Rear Combination Light and Back-Up Light

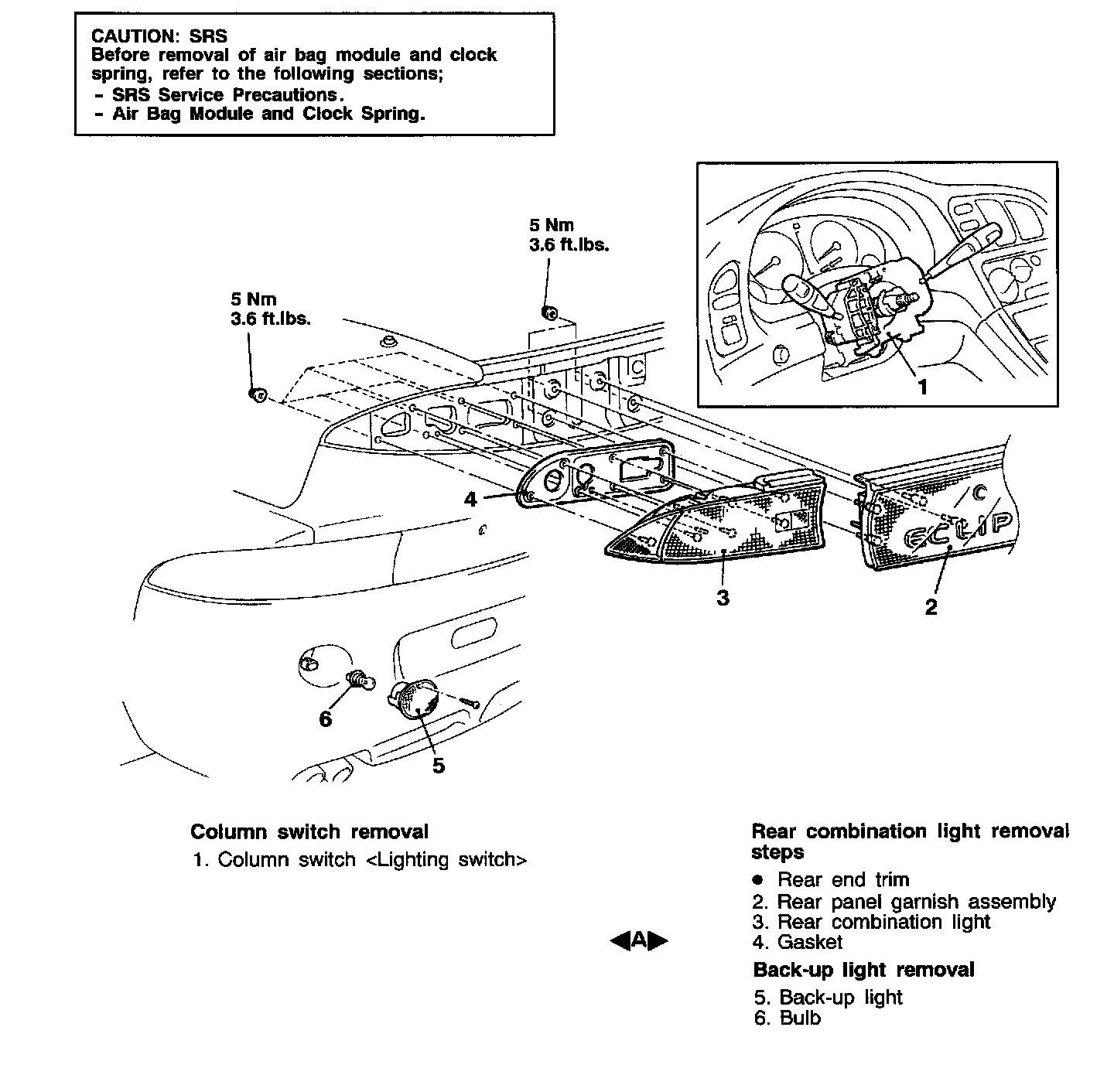

REMOVAL AND INSTALLATION

Rear Combination Light Removal:




REMOVAL SERVICE POINT
REAR COMBINATION LIGHT REMOVAL

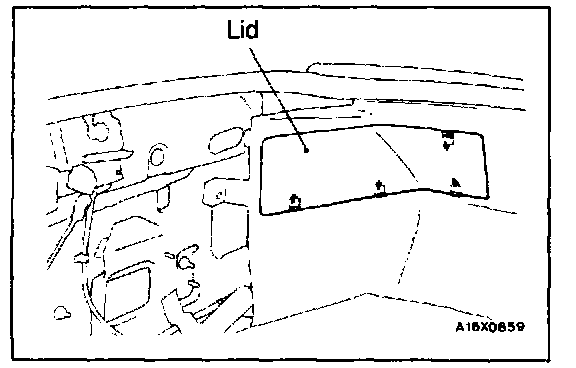

Slide the lock knob of the lid in the direction of the arrow in the illustration to remove the lid, and then remove the rear combination light mounting nut.
