Electrical Diagrams

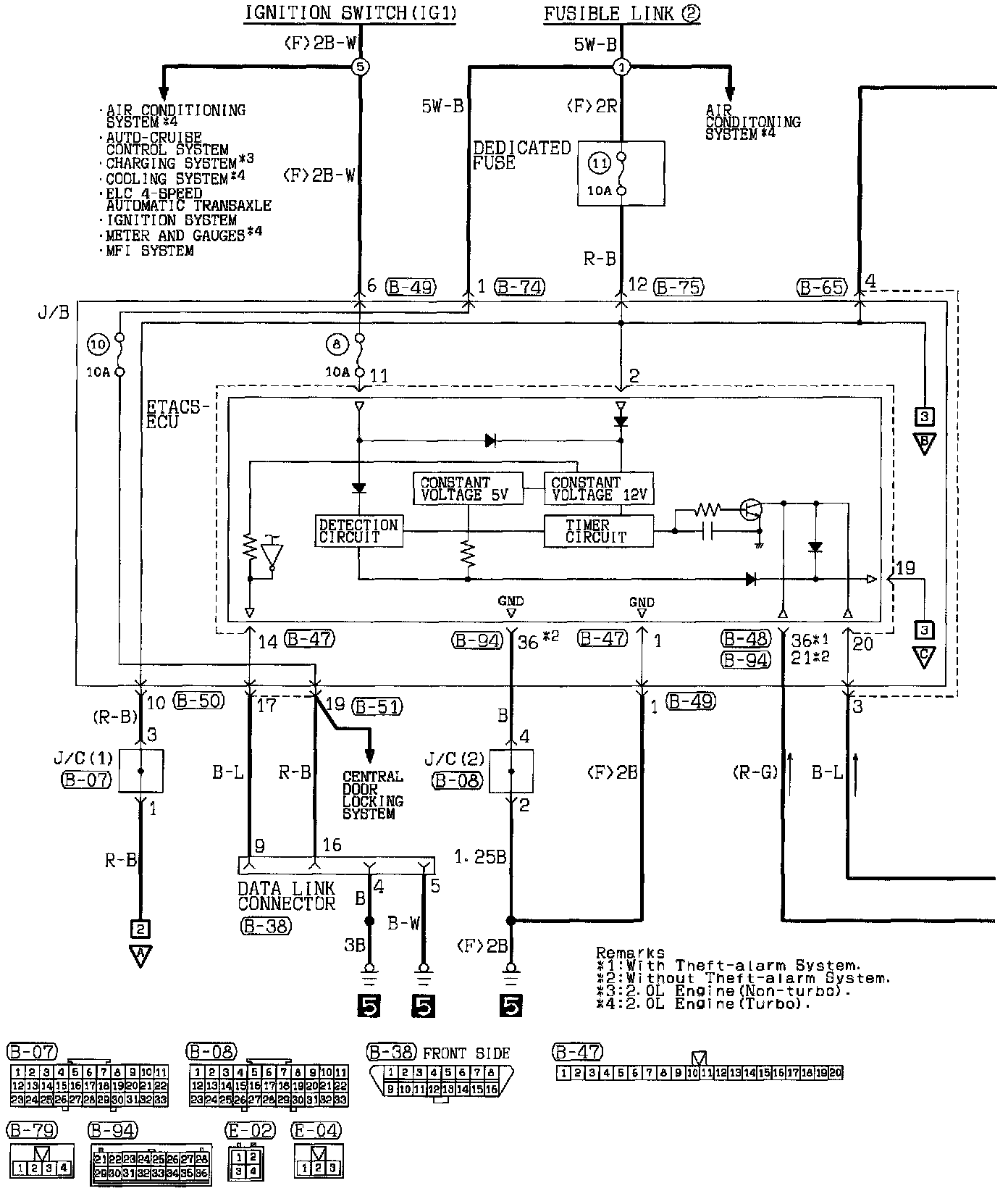

Dome, Foot And Luggage Compartment Light (Part 1 Of 3):

Data Link Connector
Dedicated Fuse
J/B
- ETACS-ECU
J/C (1, 2)

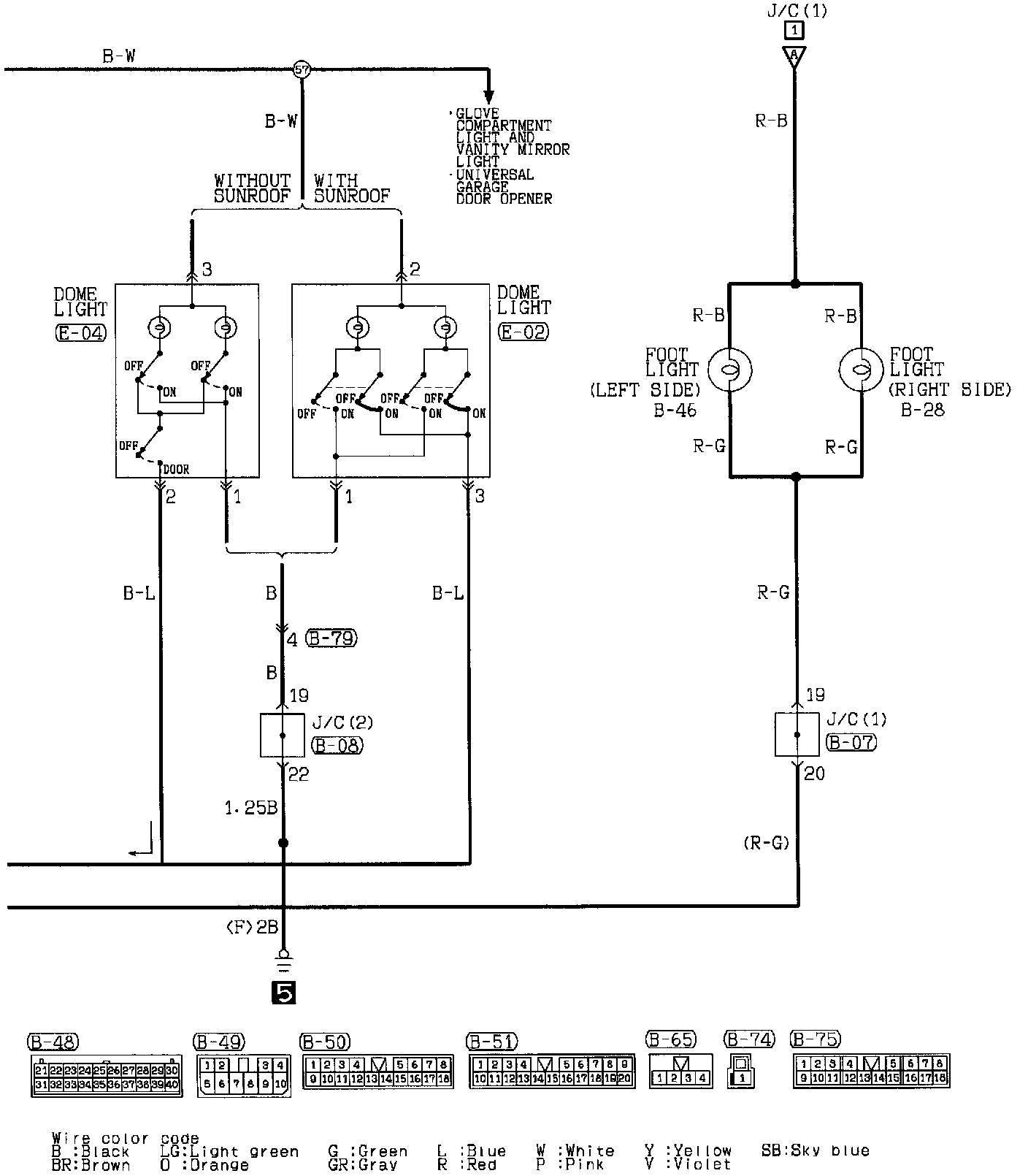

Dome, Foot And Luggage Compartment Light (Part 2 Of 3):

Dome Light
Foot Light (Left & Right)
J/C (1, 2)

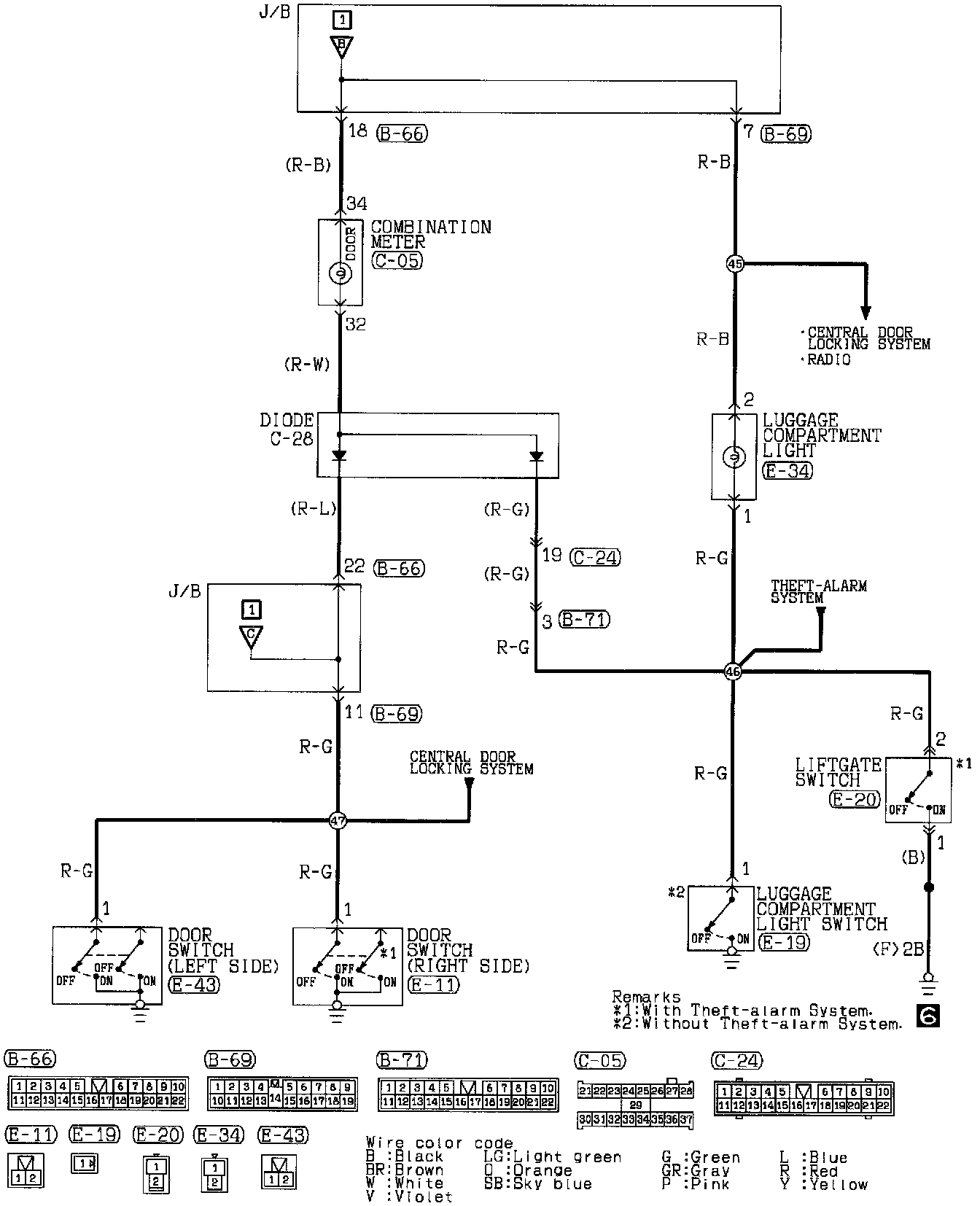

Dome, Foot And Luggage Compartment Light (Part 3 Of 3):

Combination Meter
Diode
Door Switch (Left & Right Side)
J/B
Liftgate Switch
Luggage Compartment Light
Luggage Compartment Light Switch
