Fuel Gauge Resistance Check

FUEL GAUGE CHECK
1. Remove the power supply tightening screw.

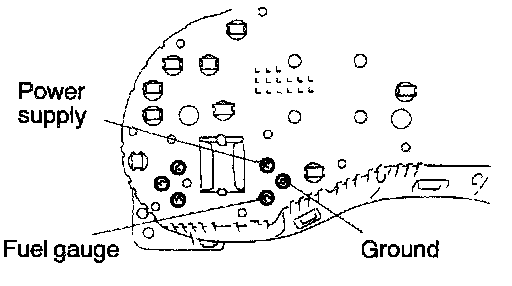

2. Use an ohmmeter to measure the resistance value between the terminals.

Standard value:
Power supply-Ground: 249 ± 30 Ohms
Power supply-Fuel gauge: 127 ± 25 Ohms
Fuel gauge-Ground: 122 ± 10 Ohms

3. If within the standard value, the fuel gauge is OK. If not within the standard value, replace the fuel gauge.
