Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Testing and Inspection
>>
Ignition Switch
>>
Symptom Diagnostic Procedures
>>

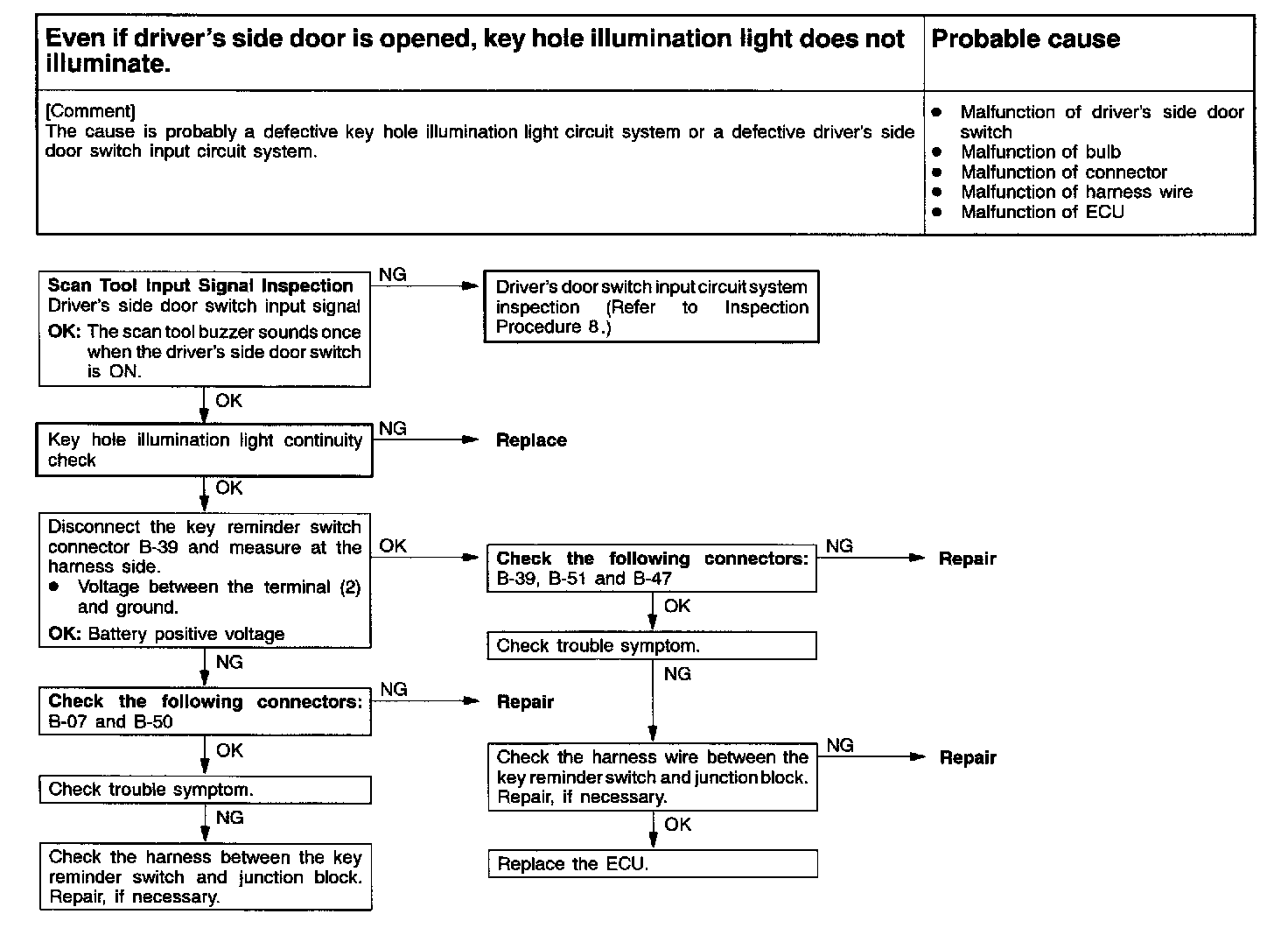

5 Key Hole Illumination INOP Even With Drivers Door Is Opened
5 Key Hole Illumination INOP Even With Drivers Door Is Opened
