A/C Magnetic Clutch - Corrected Service Procedures
No: TSB-02-55-002DATE: March, 2002
MODEL: See Below
SUBJECT:
CORRECTED A/C MAGNETIC CLUTCH SERVICE PROCEDURES - SERVICE MANUAL REVISION
TSB Revision: TSB-02-55-002
PURPOSE
This bulletin contains revised service procedures relating to the A/C magnetic clutch. The A/C magnetic clutch nut tightening torque, which was not included in the original manuals, is added for all affected vehicles, and revised nut installation procedures are included for the 1995-99 Eclipse and 1996-99 Eclipse Spyder.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1995-2003 Eclipse
1996-2003 Eclipse Spyder
1994-95 & 1997-2002 Galant
AFFECTED SERVICE MANUALS
1995 Eclipse Service Manual, Volume 1, Pages 55-34, 37
1996 Eclipse Service Manual, Volume 1, Pages 55-31, 33
1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Pages 55-34, 35
1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Pages 55-35, 36
1999 Eclipse/Eclipse Spyder Service Manual, Volume 3, Pages 55-34, 35
2000 Eclipse Service Manual, Volume 3, Page 55-36
2001 Eclipse Spyder Service Manual (blue manual), Volume 3, Page 55-35
2001 Eclipse/Eclipse Spyder Service Manual (green manual), Volume 4, Page 55-37
2002 Eclipse/Eclipse Spyder Service Manual, Volume 4, Page 55-38
2003 Eclipse/Eclipse Spyder Service Manual, Volume 4, Page 55-47
1994 Galant Service Manual, Volume 1, Page 55-34
1995 Galant Service Manual, Volume 1, Page 55-35
1997 Galant Service Manual, Volume 1, Page 55-34
1998 Galant Service Manual, Volume 2, Page 55-30
1999-2000 Galant Service Manual, Volume 3, Page 55-38
2001 Galant Service Manual, Volume 4, Page 55-37
2002 Galant Service Manual, Volume 4, Page 55-43
SERVICE MANUAL REVISIONS

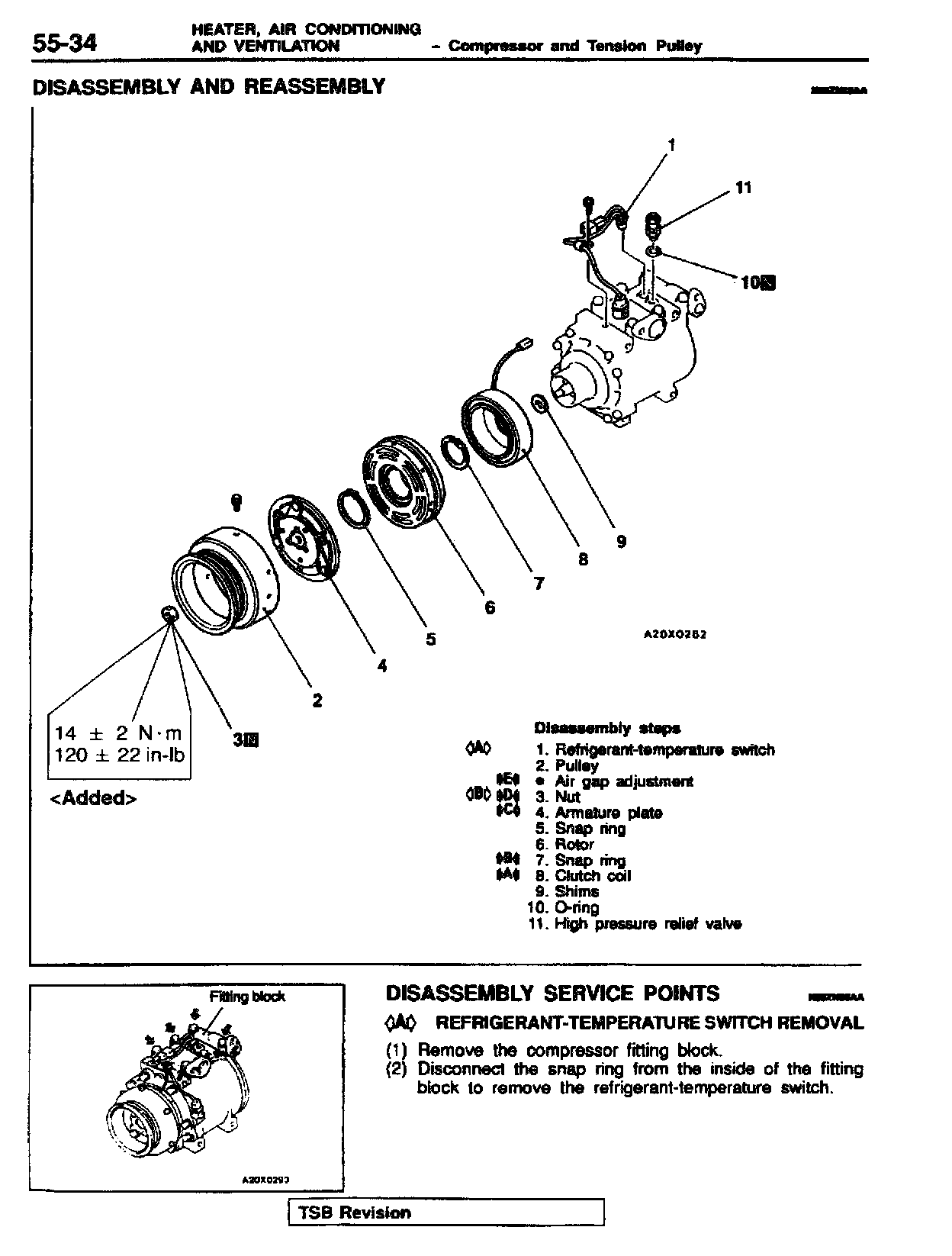

1995 Eclipse, Volume 2, Page 55-34

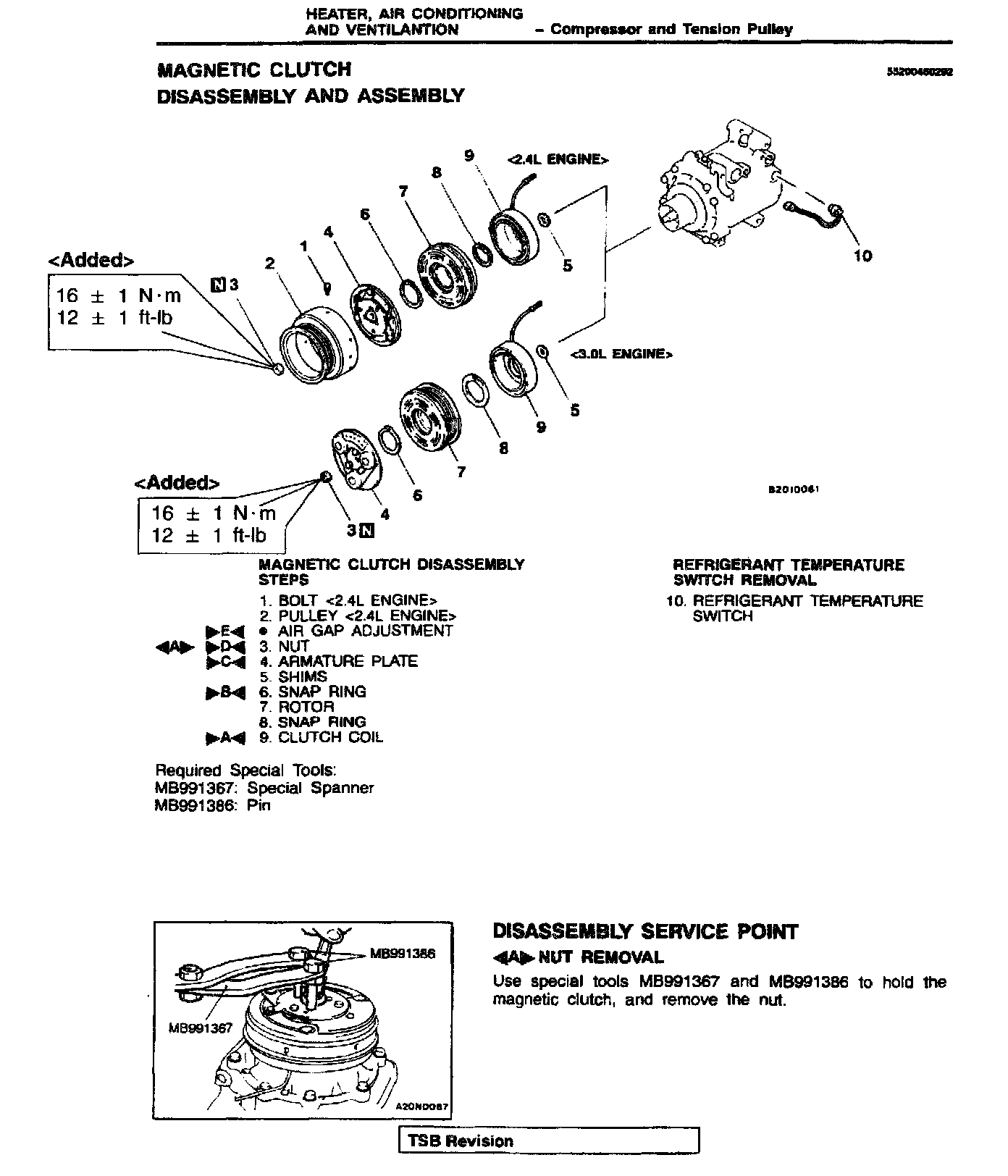

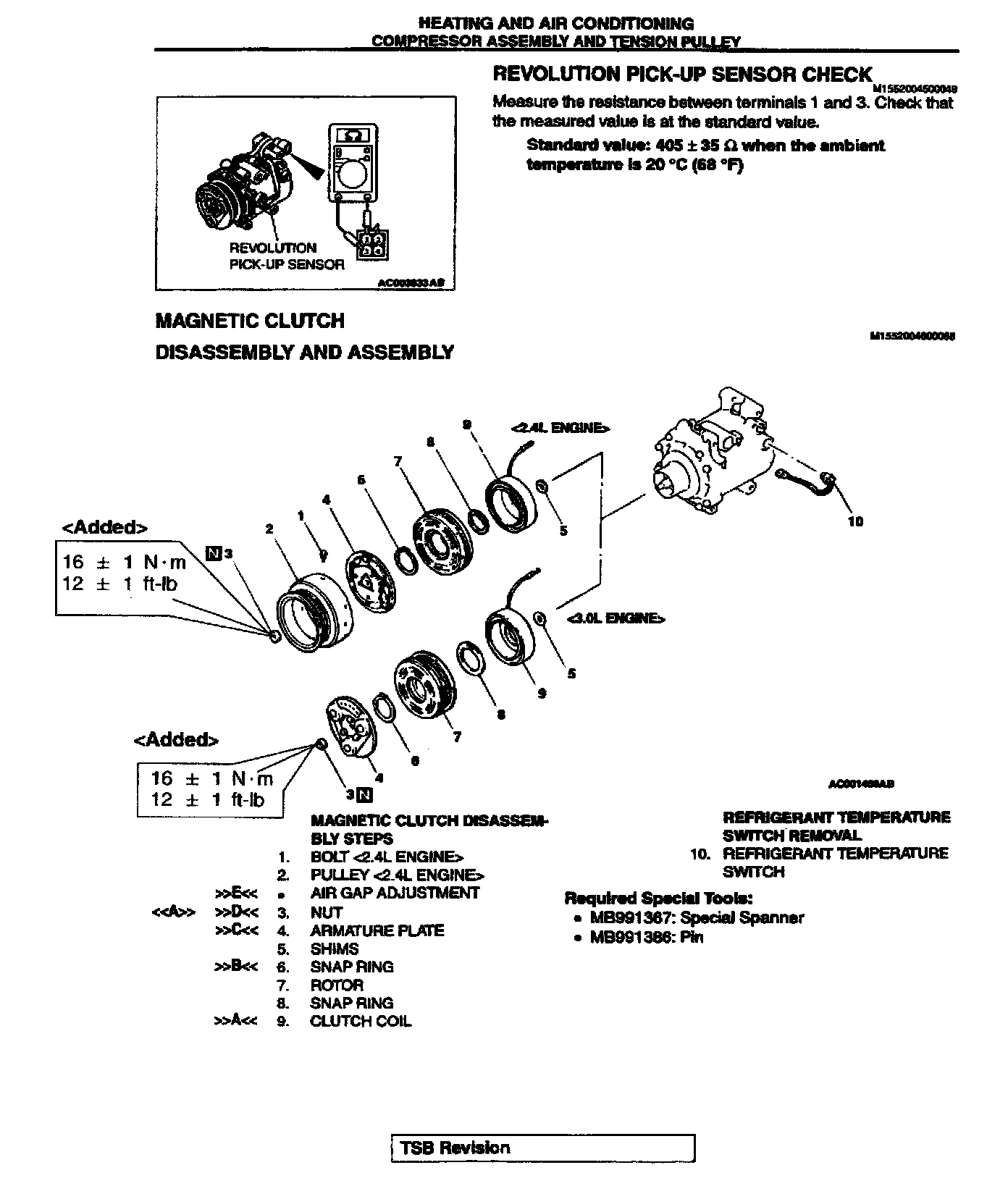

Add the A/C magnetic clutch nut tightening torque as shown:

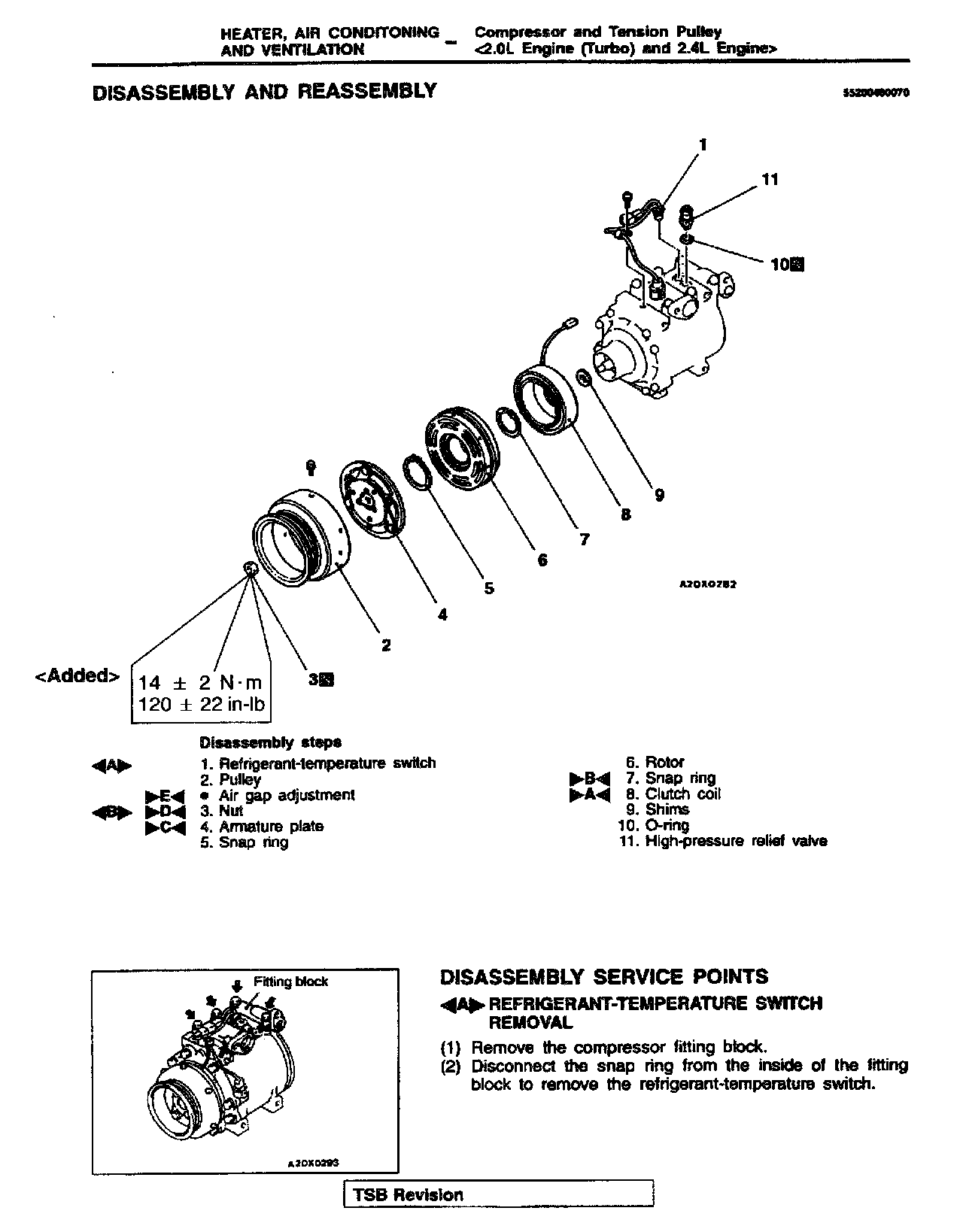

1995 Eclipse, Volume 2, Page 55-37

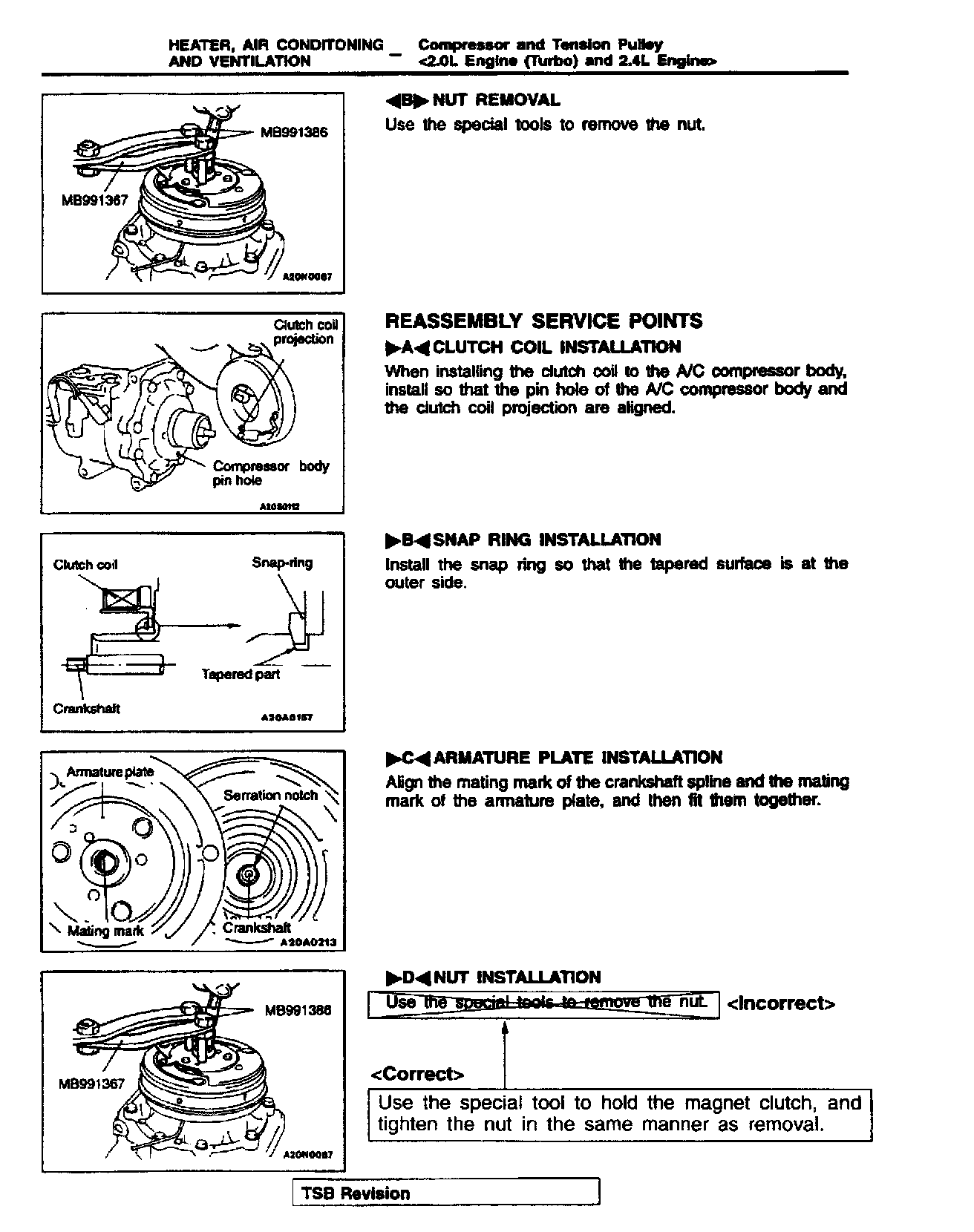

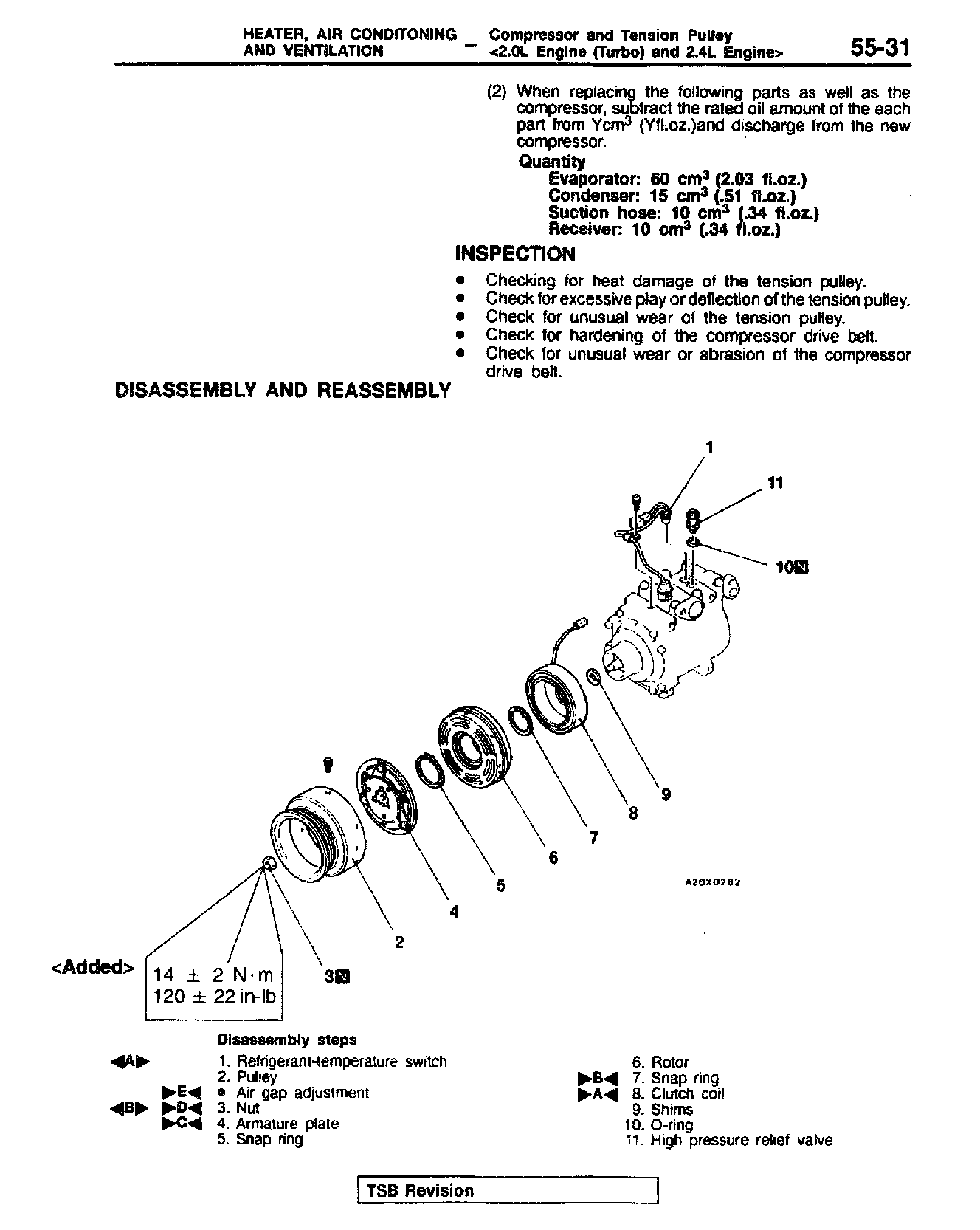

1996 Eclipse, Volume 2, Page 55-31
Add the A/C magnetic clutch nut tightening torque as shown:
1996 Eclipse, Volume 2, Page 55-33

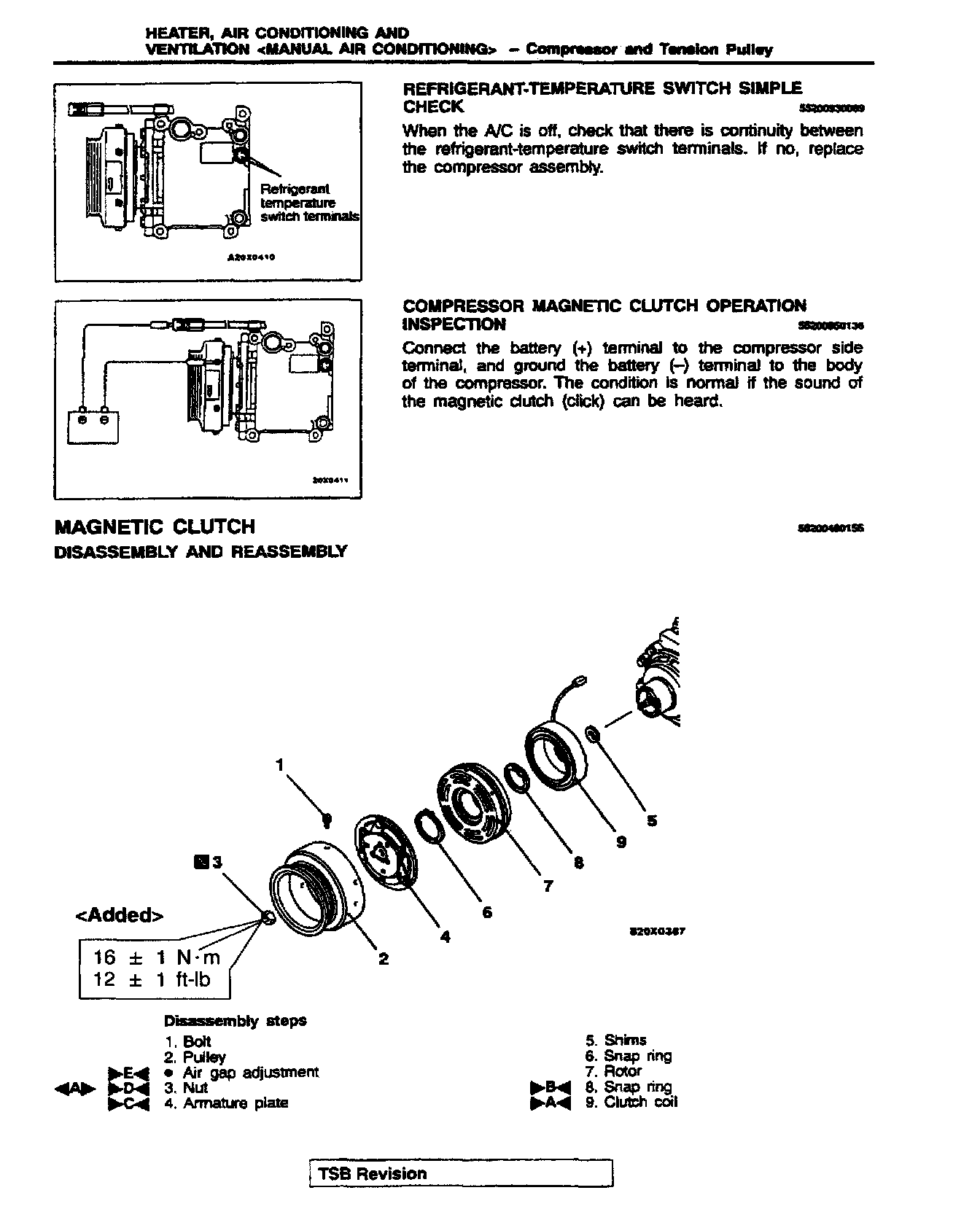

1997 & 1999 Eclipse, Page 55-34; 1998 Eclipse, Page 55-35
Add the A/C magnetic clutch nut tightening torque as shown:

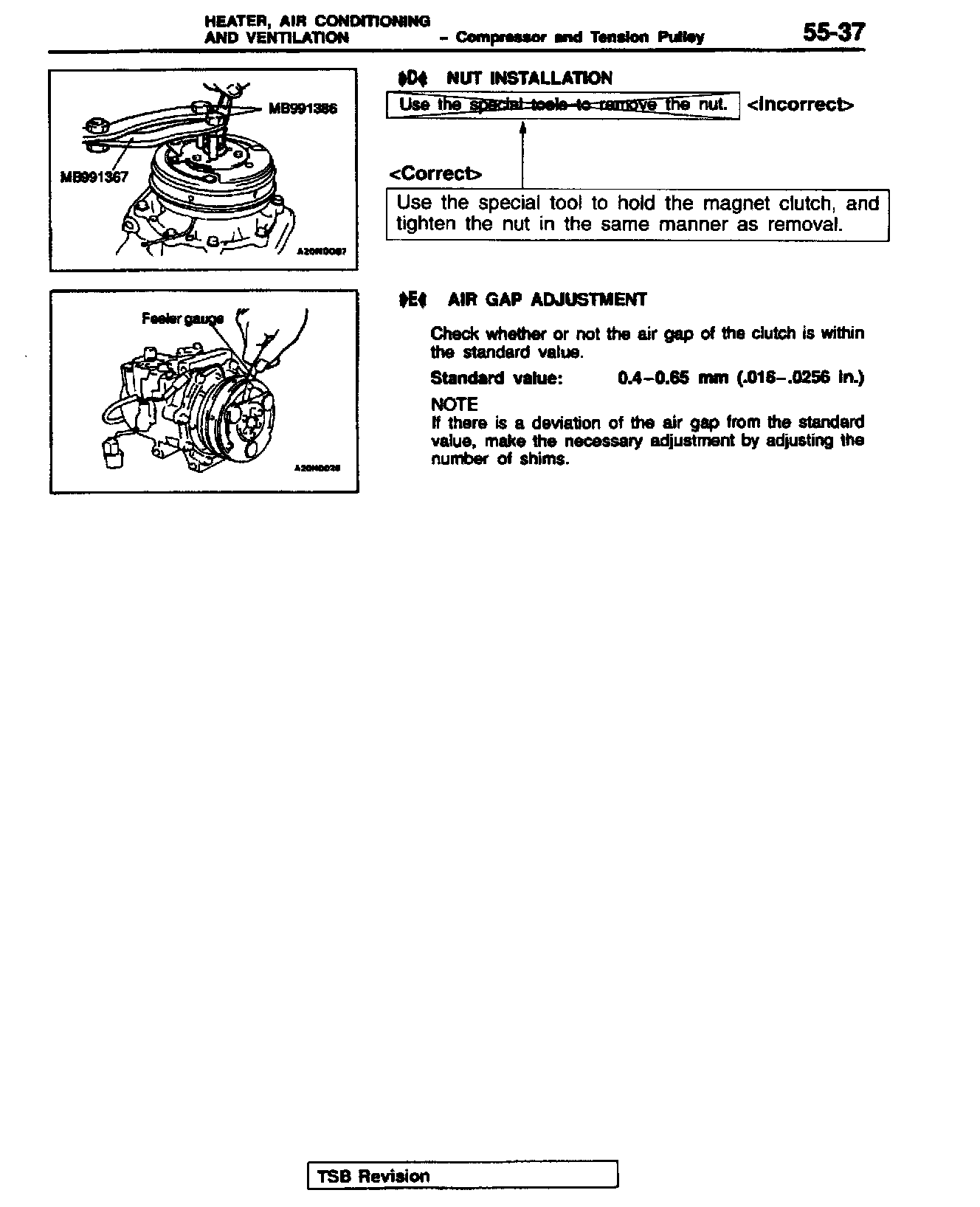

1997 & 1999 Eclipse, Page 55-35; 1998 Eclipse, Page 55-36

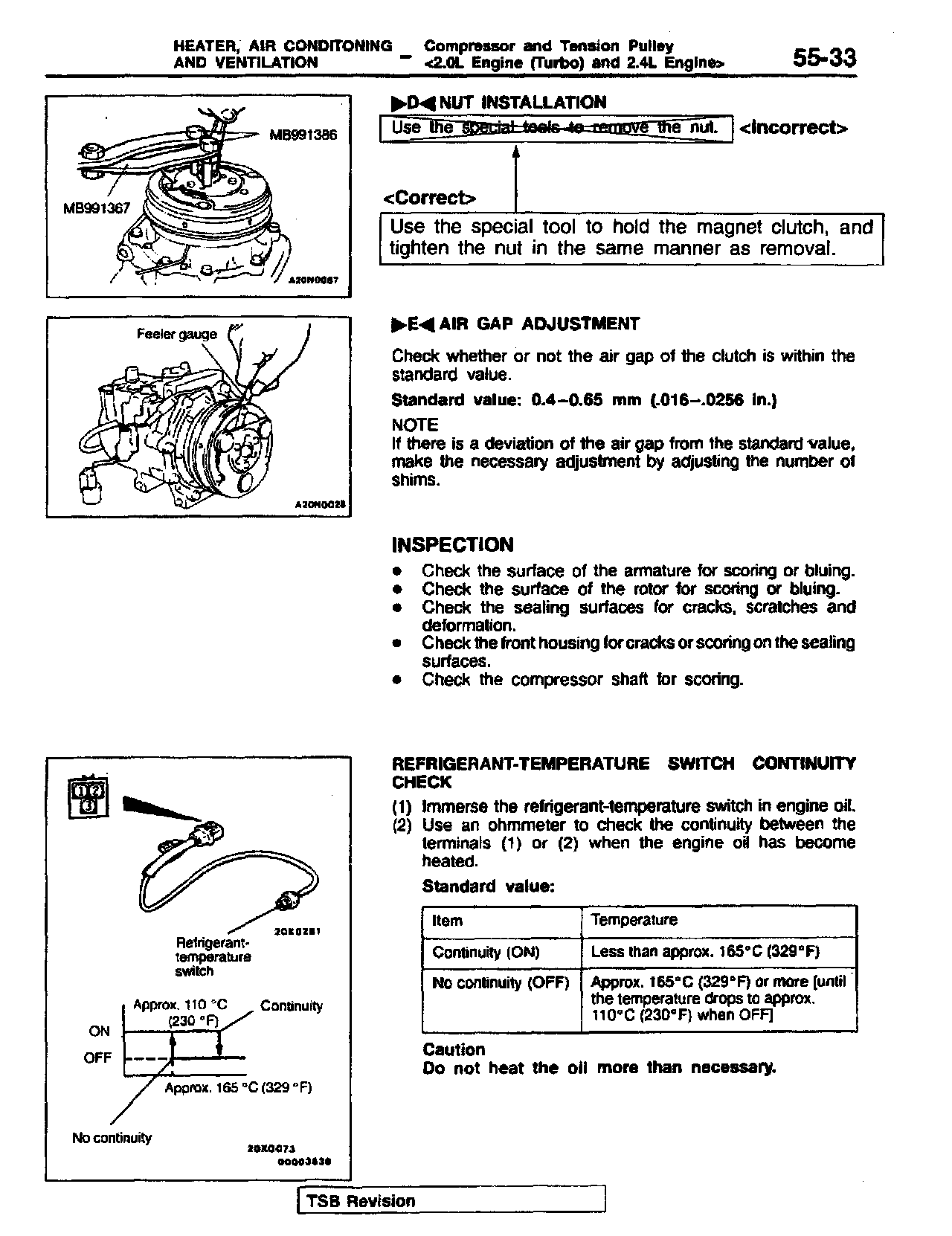

2000 Eclipse, Page 55-36; 2001 Eclipse Spyder (blue manual), Page 55-35; 1999-2000 Galant, Page 55-38
Add the A/C magnetic clutch nut tightening torque as shown:
2001 Eclipse/Eclipse Spyder (green manual), Page 55-37; 2002 Eclipse/Eclipse Spyder, Page 55-38;
2003 Eclipse/Eclipse Spyder, Page 55-47; 2001 Galant, page 55-37; 2002 Galant, Page 55-43
Add the A/C magnetic clutch nut tightening torque as shown:
1994 Galant, Page 55-34
Add the A/C magnetic clutch nut tightening torque as shown:
1995 Galant, Page 55-35; 1997 Galant, Page 55-34; 1998 Galant, Page 55-30 Add the A/C magnetic clutch nut tightening torque as shown:
