Hose/Line HVAC: Service and Repair

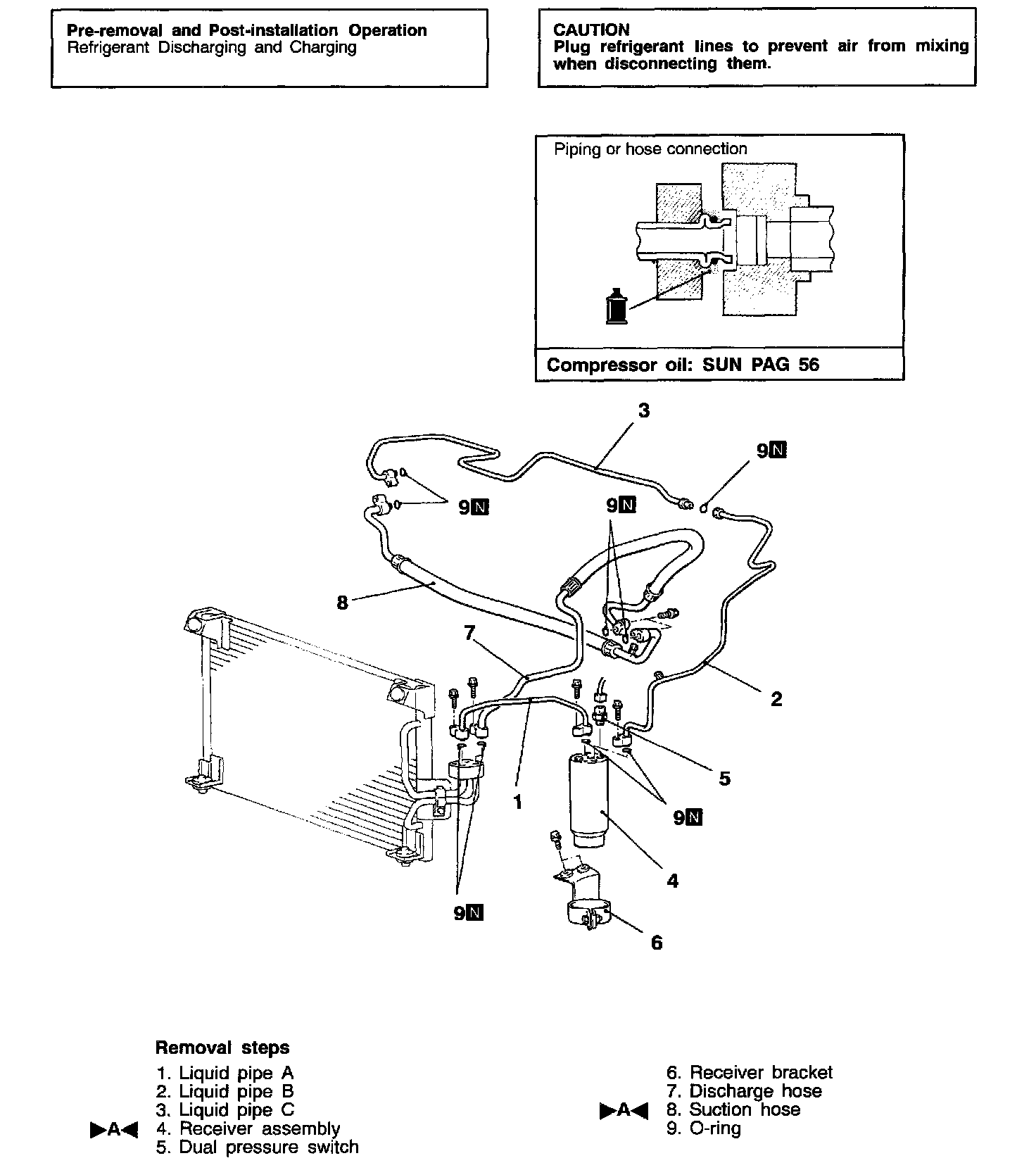

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>A< SUCTION HOSE, RECEIVER ASSEMBLY INSTALLATION
When replacing the suction hose or the receiver assembly, refill them with a specified amount of compressor oil.
Compressor oil: SUN PAG 56
Quantity:
Suction hose: 10 Cubic.cm (0.34 fl.oz.)
Receiver: 10 Cubic.cm (0.34 fl.oz.)
