REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT

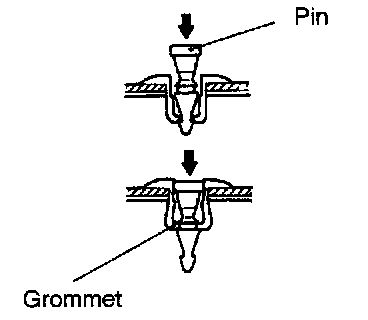

CLIP REMOVAL
1. Use a Phillips-head screwdriver to push inward the pin (at the center of the clip) to a depth of about 2 mm (0.08 in.).
2. Pull the clip outward to remove it.
CAUTION: Do not push the pin inward more than necessary because it may damage the grommet, or the pin may fall in, if pushed too far.
INSTALLATION SERVICE POINTS

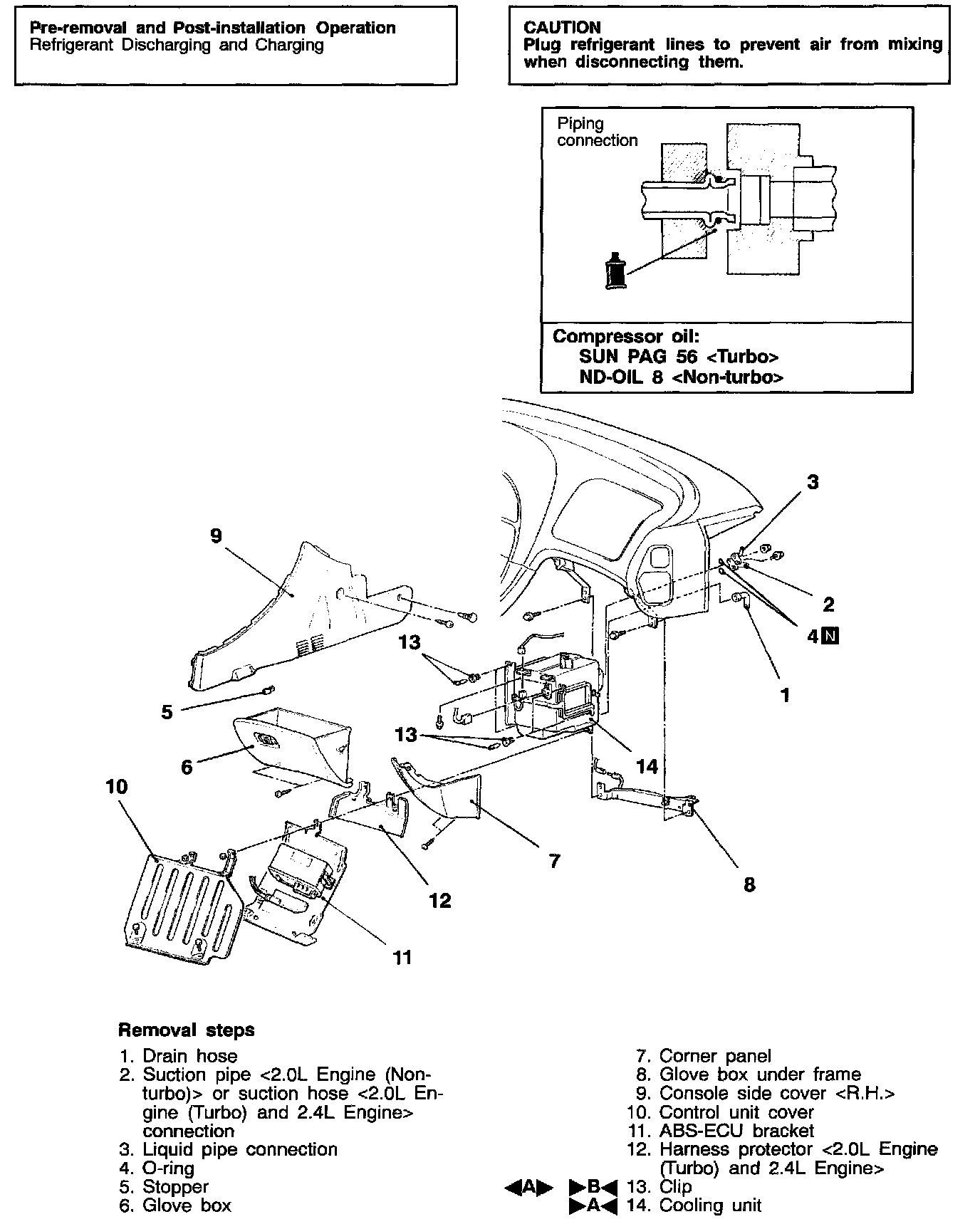

>A< COOLING UNIT INSTALLATION
When replacing the cooling unit with new one, refill the evaporator with a specified amount of compressor oil.
Compressor oil: SUN PAG 56
Quantity: 60 Cubic.cm (2.03 fl.oz.)
>B< CLIP INSTALLATION
1. With the pin pulled out, insert the clip into the hole.
2. Push the pin inward until the pin's head is flush with the grommet.
