Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Evaporator Case >> Service and Repair >> Disassembly and Reassembly

Disassembly and Reassembly

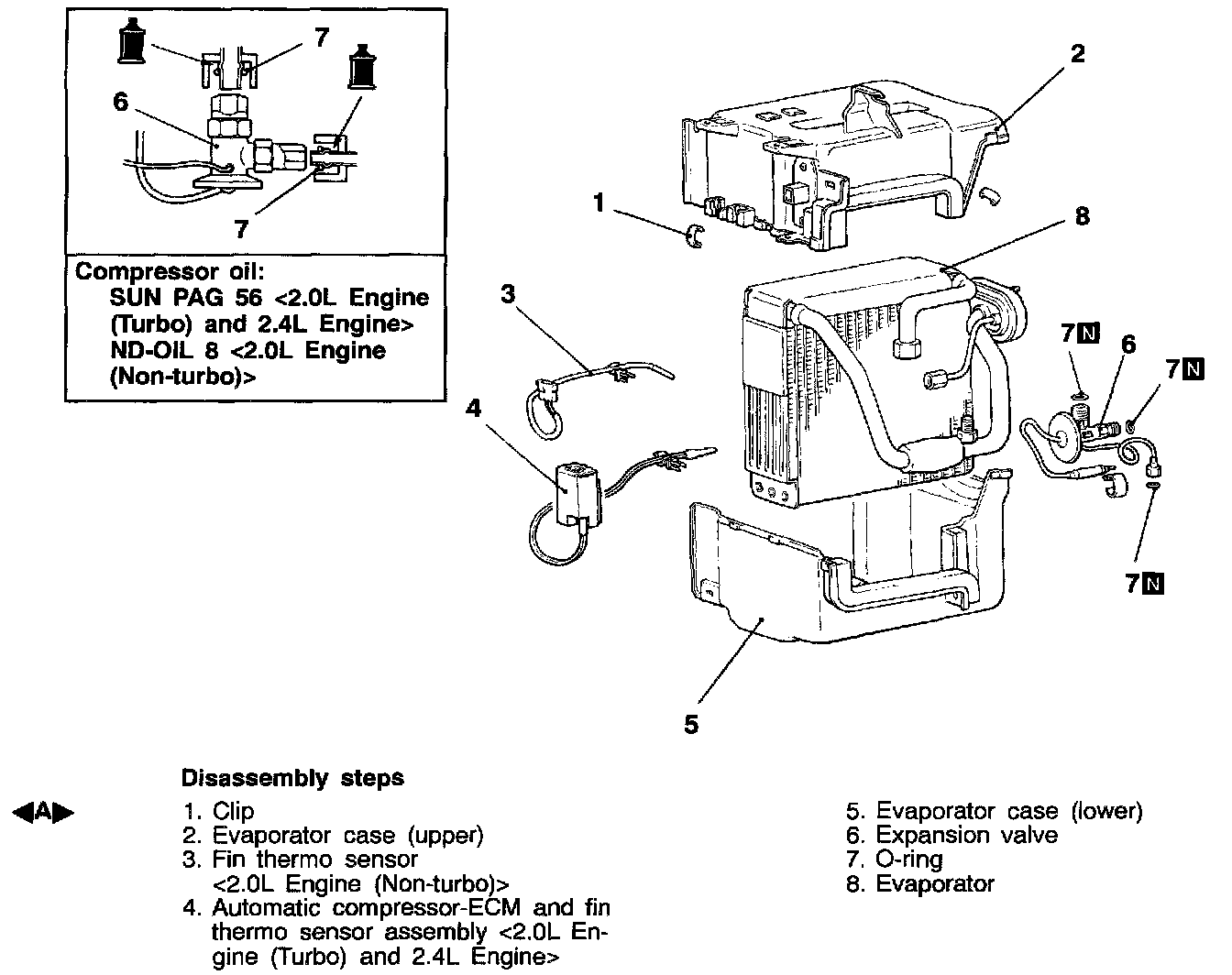

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINT

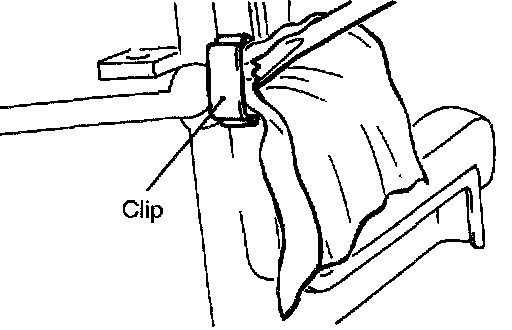

CLIP REMOVAL
Remove the clips with a flat-tipped screwdriver covered with a shop towel to prevent damage to case surfaces.
