Disassembly and Reassembly

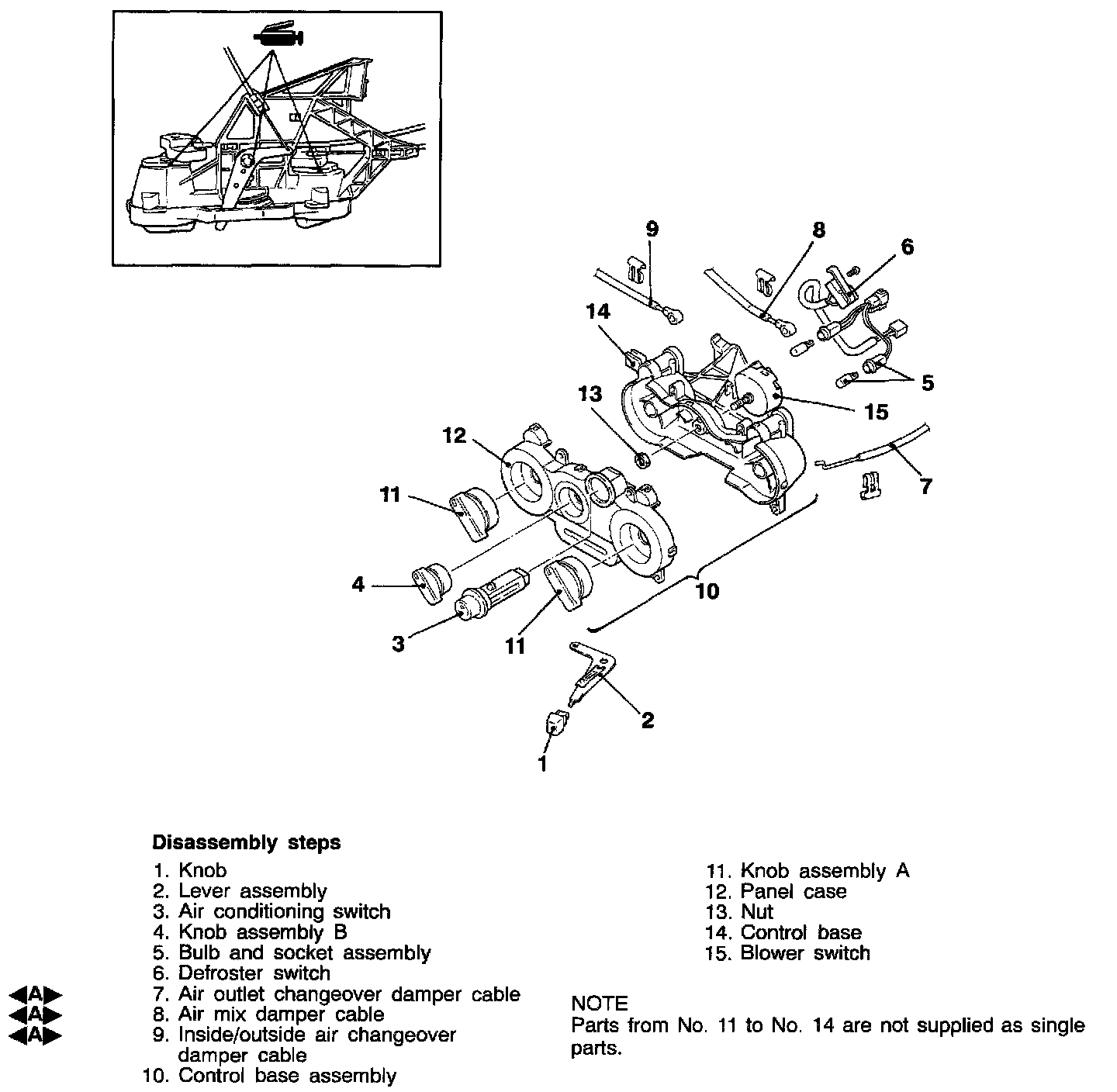

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINT




AIR OUTLET CHANGEOVER DAMPER CABLE/AIR MIXING DAMPER CABLE/INSIDE/OUTSIDE AIR CHANGEOVER DAMPER CABLE REMOVAL

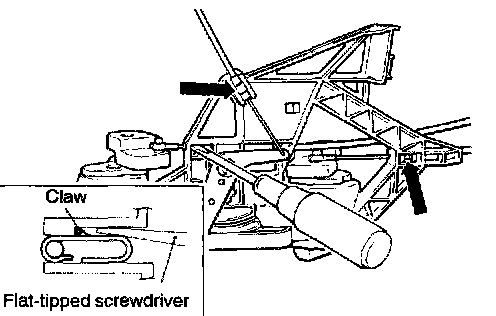

Insert a flat-tipped screwdriver to disengage the claws and then remove the cables.
