Component Inspection

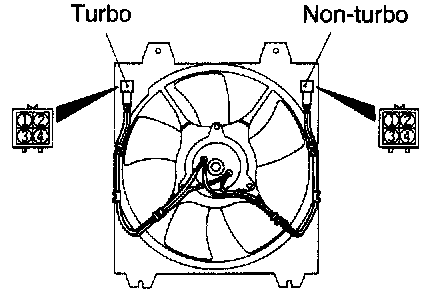

CONDENSER FAN MOTOR CHECK
1. Check that the condenser fan motor operates when battery voltage (+) is applied to terminal 1 and terminal 4 is grounded (-).
2. In this same condition, apply battery (+) voltage to terminal 3 and ground
