Blower Motor Resistor: Testing and Inspection

RESISTOR RESISTANCE CHECK
Use an ohmmeter to measure the resistance between the terminals as indicated below. Check that the measured value is at the standard value.

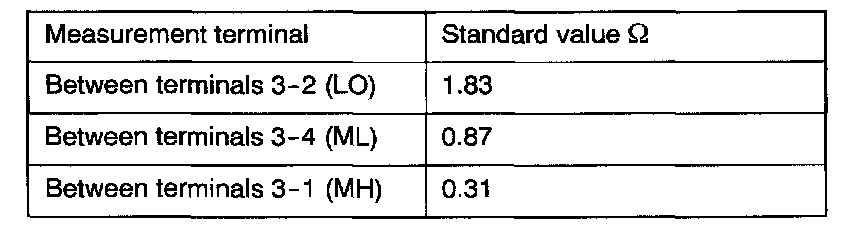

Standard value:
