Exhaust Pipe: Service and Repair

REMOVAL AND INSTALLATION

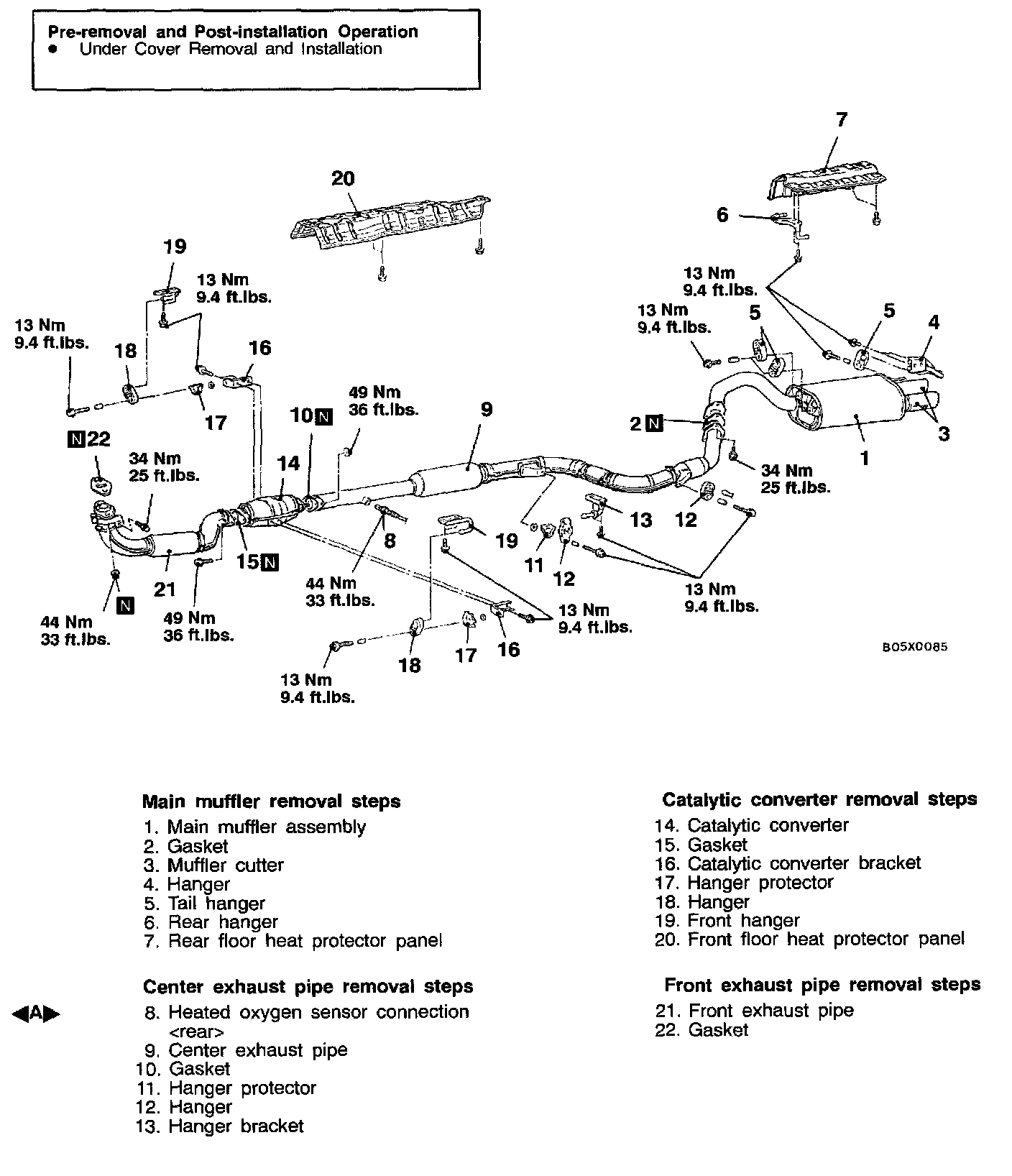

<2.0L Engine (Non-turbo)>

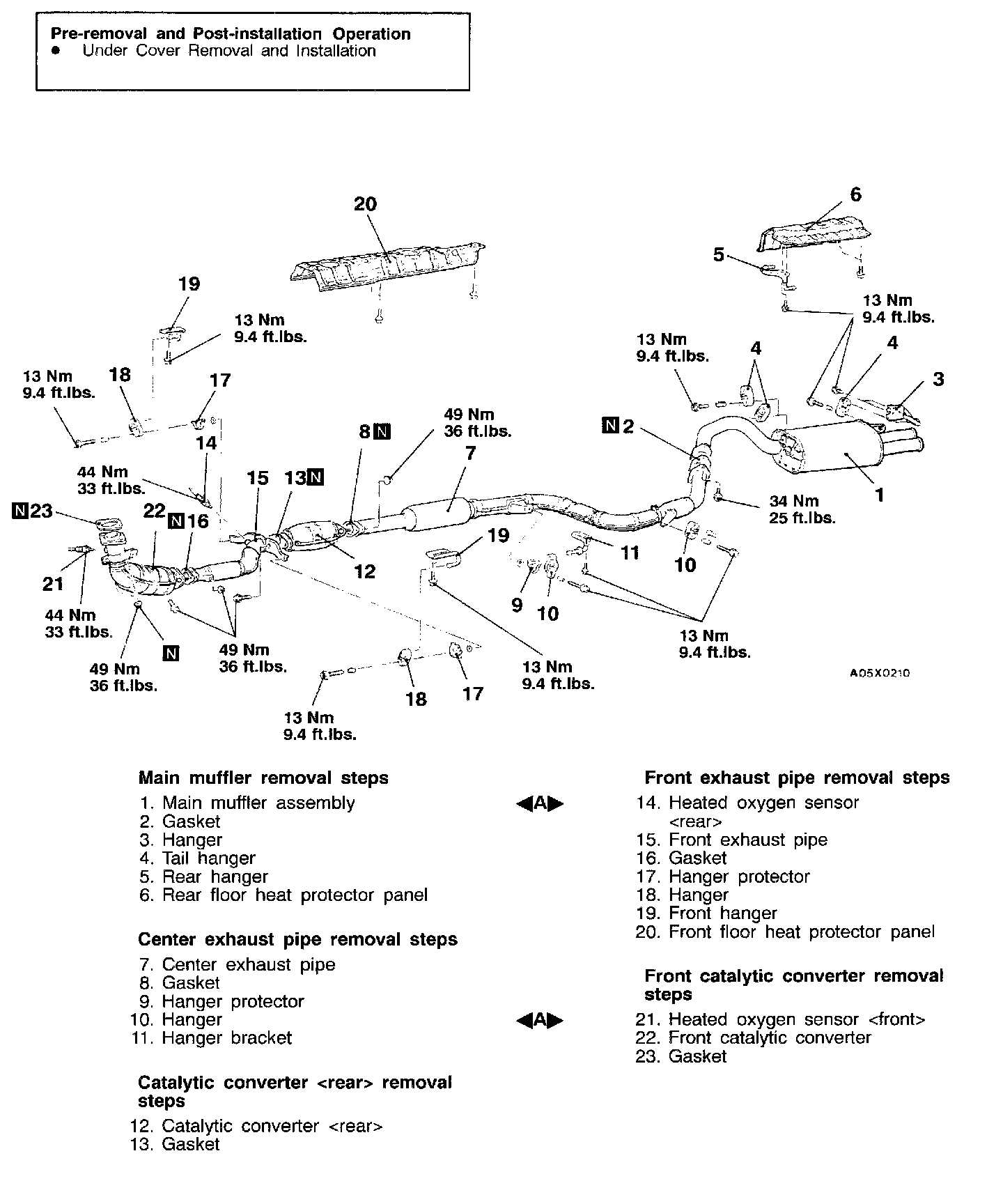

<2.0L Engine (Turbo)-FWD>

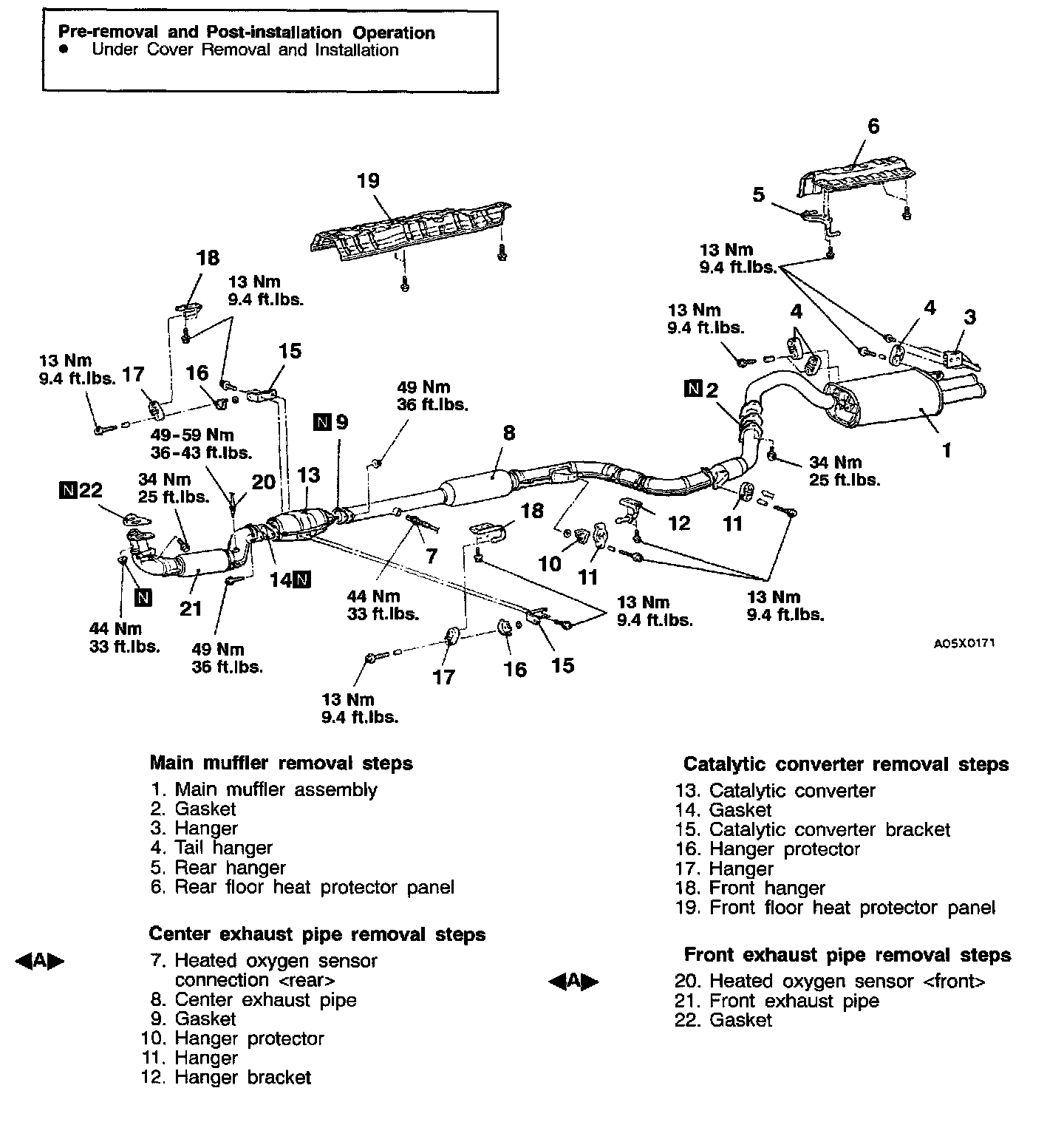

<2.0L Engine (Turbo)-AWD>

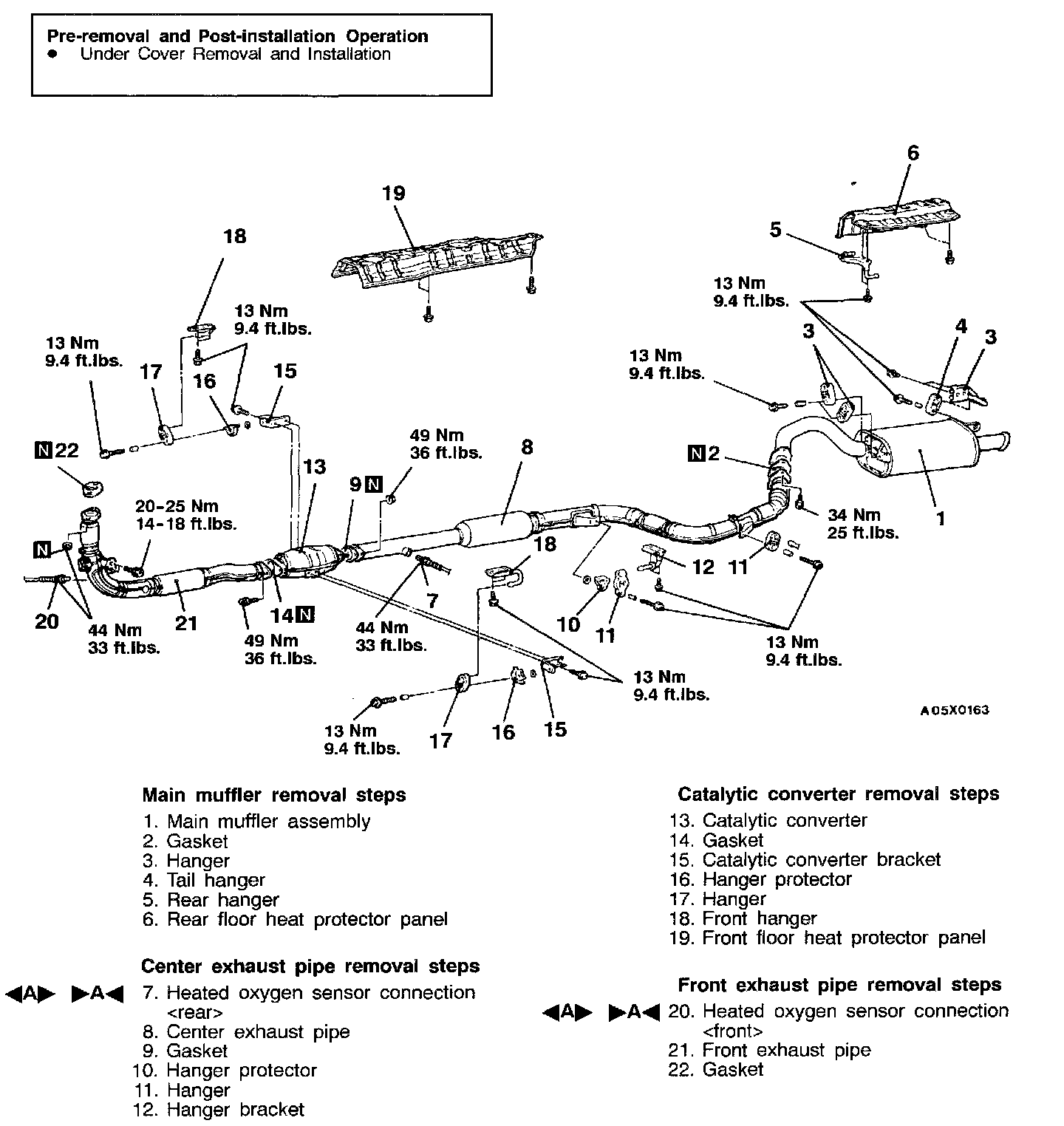

<2.4L Engine-Vehicles for Federal>





<2.4L Engine-Vehicles for California>

Removal Service Point

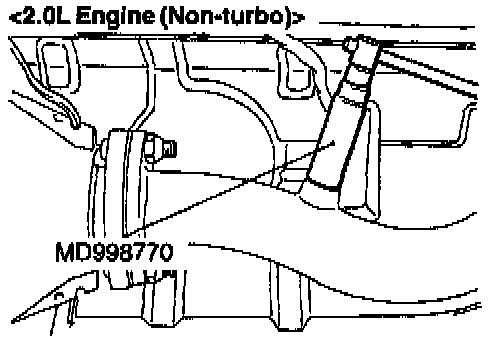

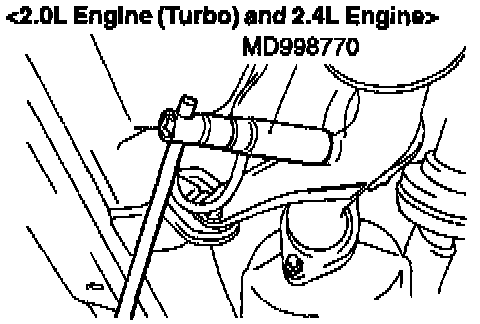

[A] Heated Oxygen Sensor /Heated Oxygen Sensor Disconnection








For 2.0L Engine (Non-turbo), the exhaust manifold threads must be cleaned with an 18 mm (0.7 inch) x 1.5 + 6E tap after the heated oxygen sensor has been disconnected.

Installation Service Point
]A[ Heated Oxygen Sensor /Heated Oxygen Sensor Connection
If reusing the original sensor, coat the sensor threads with an antiseize compound such as Loctite 771-64 or equivalent. New sensors have compound on the threads and do not require an additional coating.
