Component Tests and General Diagnostics

Manifold Vacuum Check





1. Before inspection, set vehicles in the following condition:
- Engine coolant temperature: 80 - 95°C (176 - 203° F)
- Lights, electric cooling fan, and accessories: OFF
- Transaxle: Neutral (P range on vehicles with A/T)

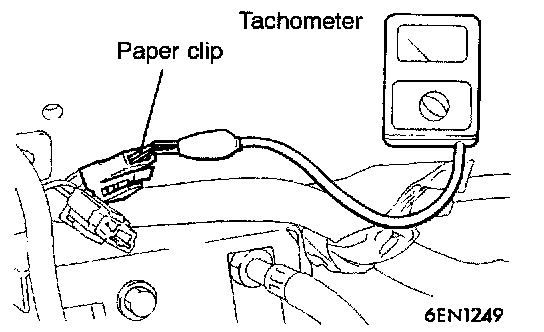

2. Set up the tachometer or connect the scan tool to the data link connector.

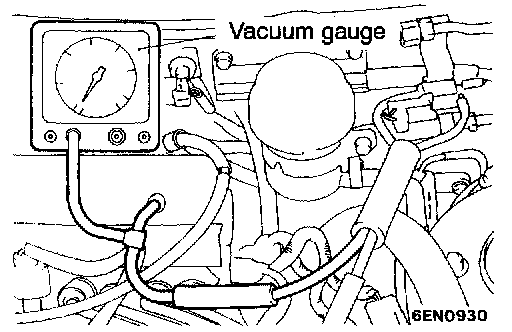

3. Attach a three-way joint to the vacuum hose connected between the intake manifold plenum and the fuel pressure solenoid valve and connect a vacuum gauge.
4. Start the engine, and check that the curb idle speed is within the standard value range.
Standard value: 750 ± 100 r/min
5. Check the manifold vacuum.
Limit: min. 60 kPa (18 in.Hg)
