Intake and Exhaust Manifolds

REMOVAL AND INSTALLATION

Installation Service Points

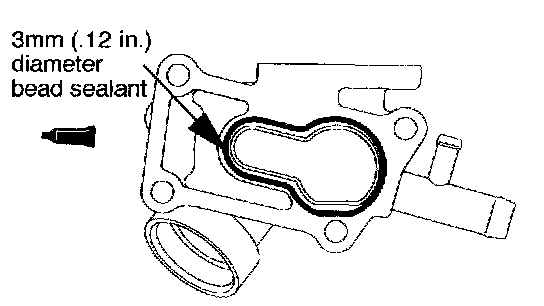

]A[ Sealant Application To Thermostat Housing





Specified sealant: Mitsubishi Genuine Part No. MD970389 or equivalent

NOTE:
1. Be sure to install the housing quickly while the sealant is wet (within 15 minutes).
2. After installation, keep the sealed area away from the oil and coolant for approximately 1 hour.

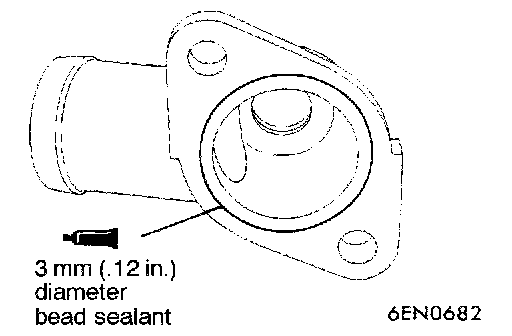

]B[ Sealant Application To Water Outlet Fitting





Specified sealant: Mitsubishi Genuine Part No. MD970389 or equivalent

NOTE:
1. Be sure to install the housing quickly while the sealant is wet (within 15 minutes).
2. After installation, keep the sealed area away from the oil and coolant for approximately 1 hour.

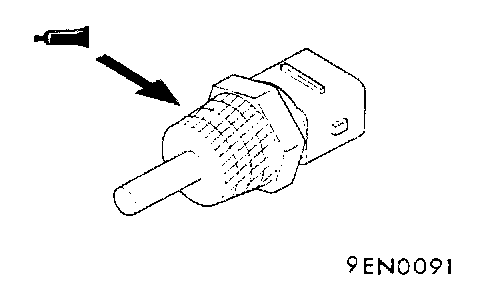

]C[ Sealant Application To Engine Coolant Temperature Sensor





Specified sealant: 3M Nut Locking Part No. 4171 or equivalent

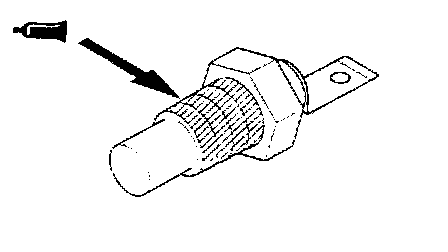

]D[ Sealant Application To Engine Coolant Temperature Gauge Unit





Specified sealant: 3M ATD Part No. 8660 or equivalent
