Generator and Ignition System

REMOVAL AND INSTALLATION

Installation Service Points
]A[ Camshaft Position Sensor Support Installation

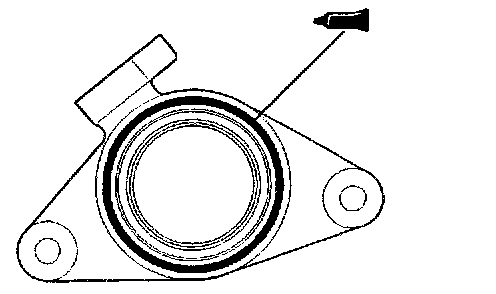

1. Apply a 3 mm bead of Form-In-Place Gasket (FIPG) to the area shown.
Specified sealant: Mitsubishi Genuine Part No. MD970389 or equivalent.

]B[ Camshaft Position Sensing Cylinder Installation
1. Set the No. 1 cylinder to the compression top dead center position (so that the dowel pin of the exhaust camshaft is at the top).

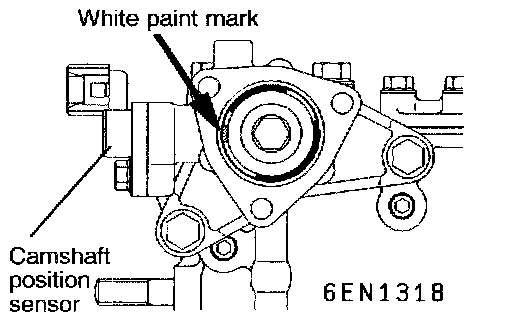

2. Install the camshaft position sensing cylinder so that the white paint mark is facing in the direction shown in the illustration.
