Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Pressure Sender >> Locations

Oil Pressure Sender: Locations

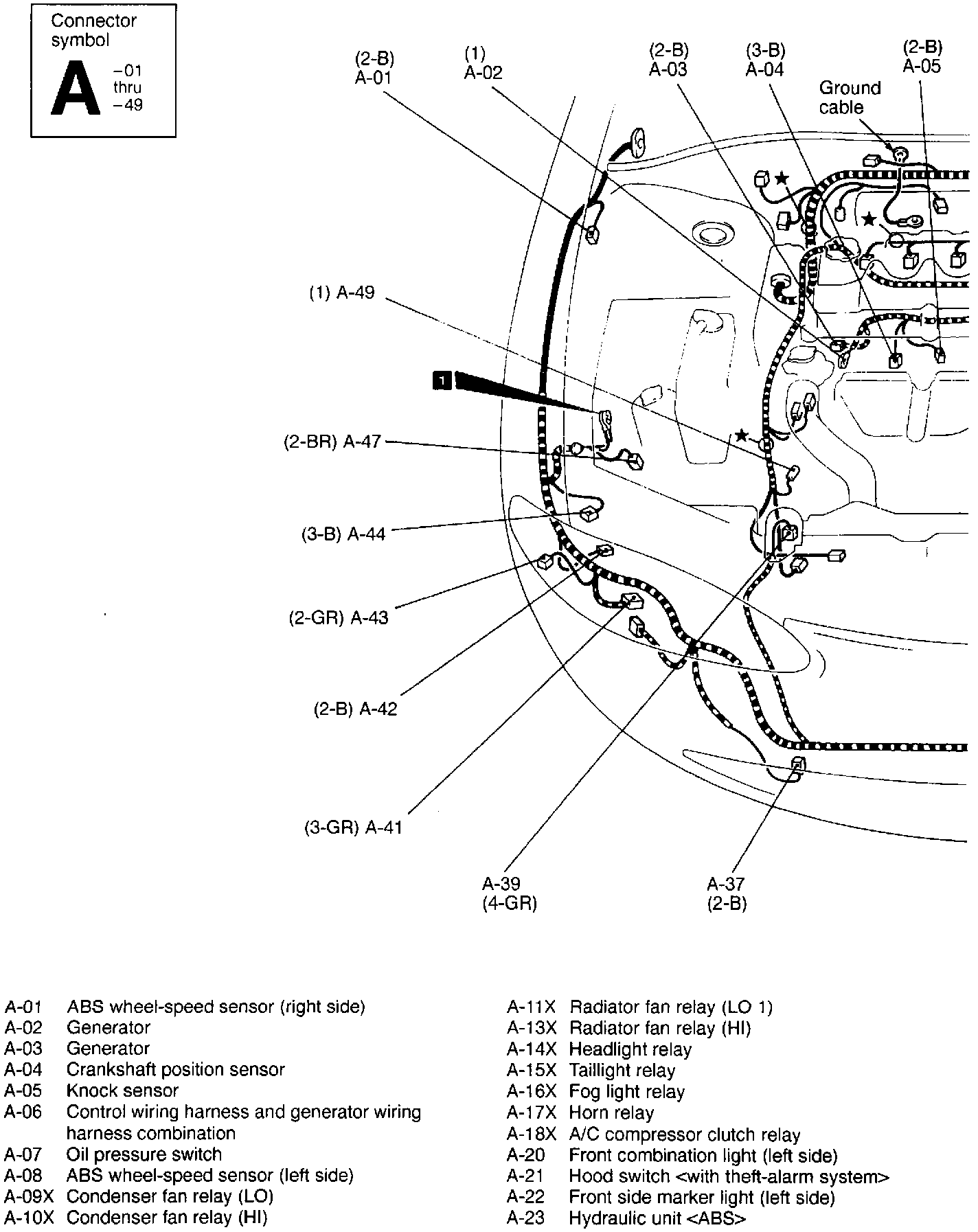

Engine Compartment Harness (Part 1 Of 4):

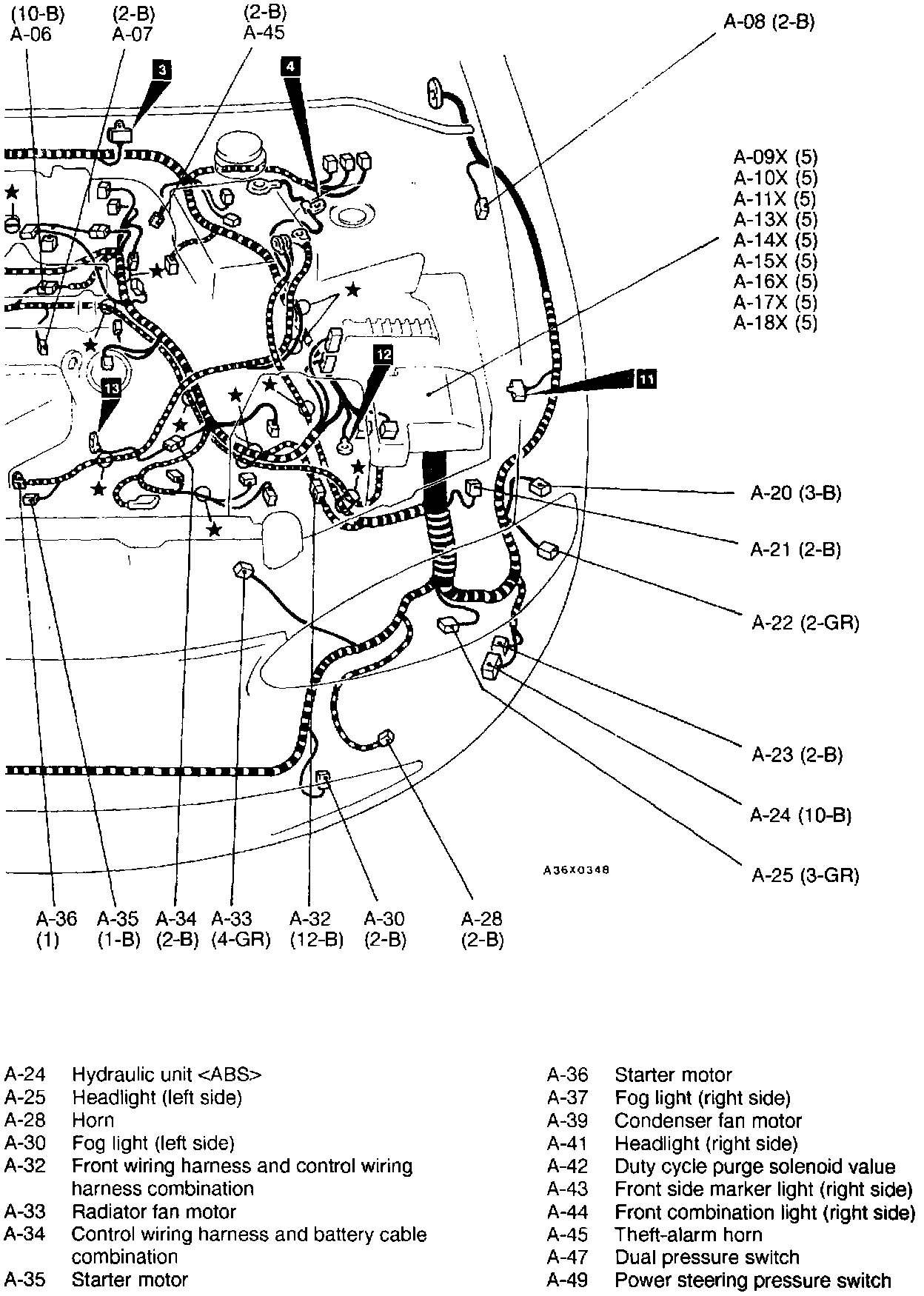

Engine Compartment Harness (Part 2 Of 4):






Connector A-07
