Oil Pressure Gauge Check

OIL PRESSURE GAUGE CHECK

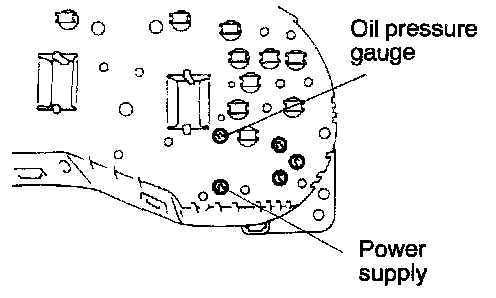

1. Use an ohmmeter to measure resistance between terminals.
Standard value: 42 ± 2 Ohms
2. If within the standard value, the oil pressure gauge is OK.
If not within the standard value, replace the oil pressure gauge.
