Procedure

REMOVAL AND INSTALLATION

Installation Service Point

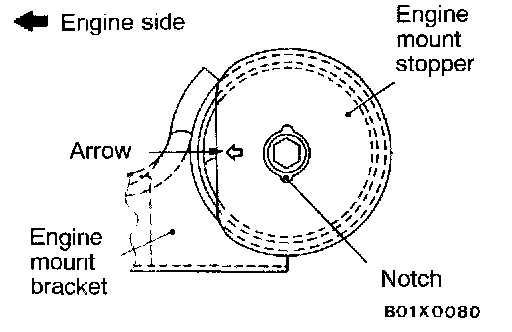

]A[ Engine Mount Stopper Installation





Align the notches on the stopper with the engine mount bracket with the arrow mark facing toward the shown direction. Then install the stopper.

INSPECTION
- Check each insulator for cracks or damage.
- Check each bracket for deformations or damage.
