Engine Mount: Description and Operation

General Information
The engine-transaxle mount is of an inertial axis supporting type whose excellent features have already been proven in many Mitsubishi vehicles. The inertial axis supporting type mount supports the front upper part of the engine at the front and the rear upper part of the transaxle at the rear. This arrangement effectively suppresses the engine vibration.

Construction Diagram

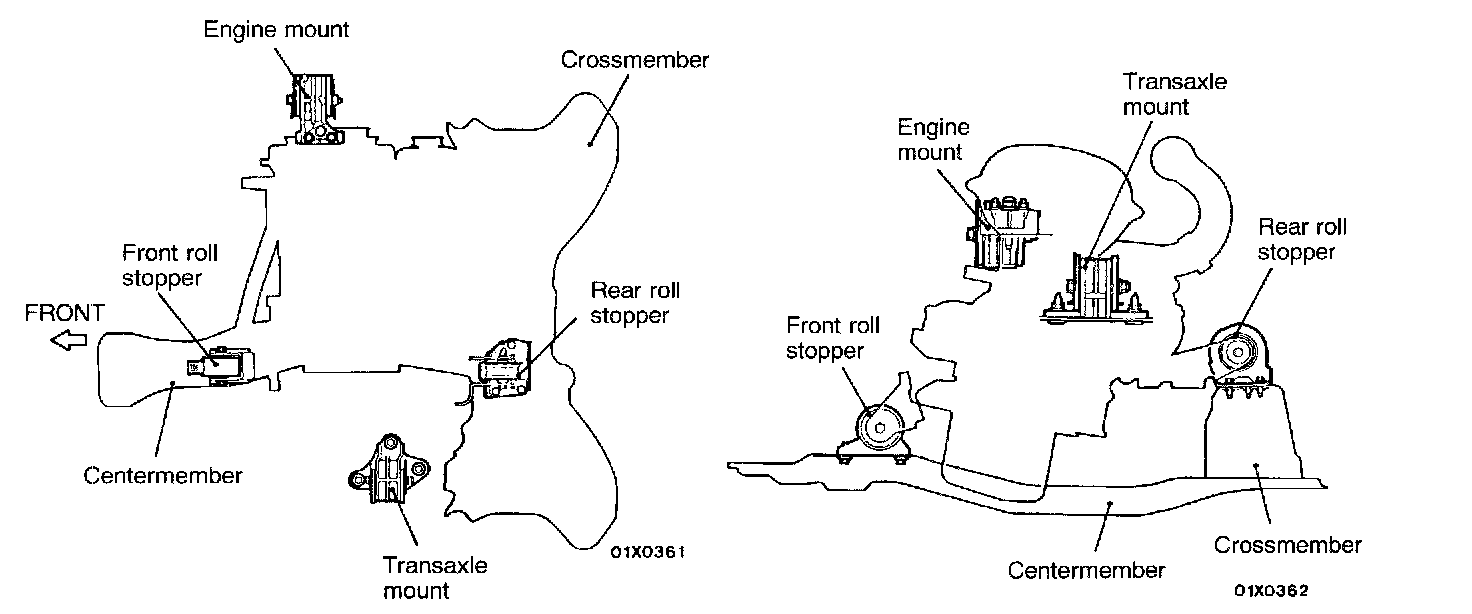

<2.0L Engine (Non-turbo)>

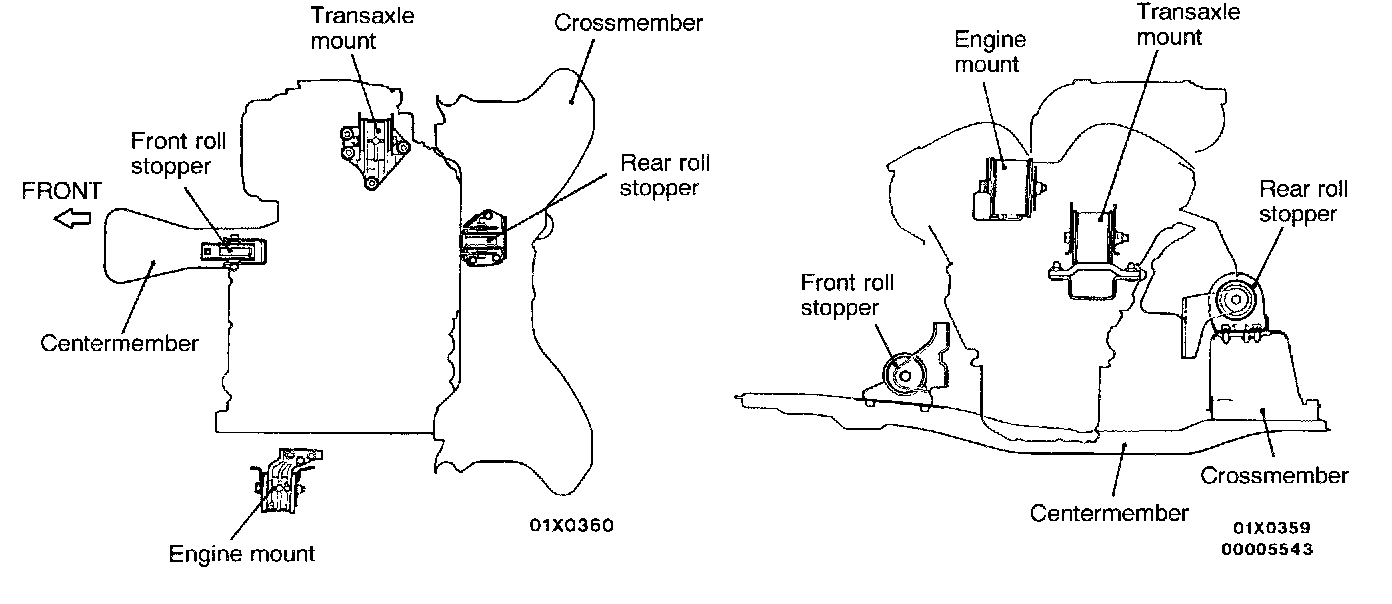

<2.0L Engine (Turbo) and 2.4L Engine>
