Harmonic Balancer - Crankshaft Pulley: Service and Repair

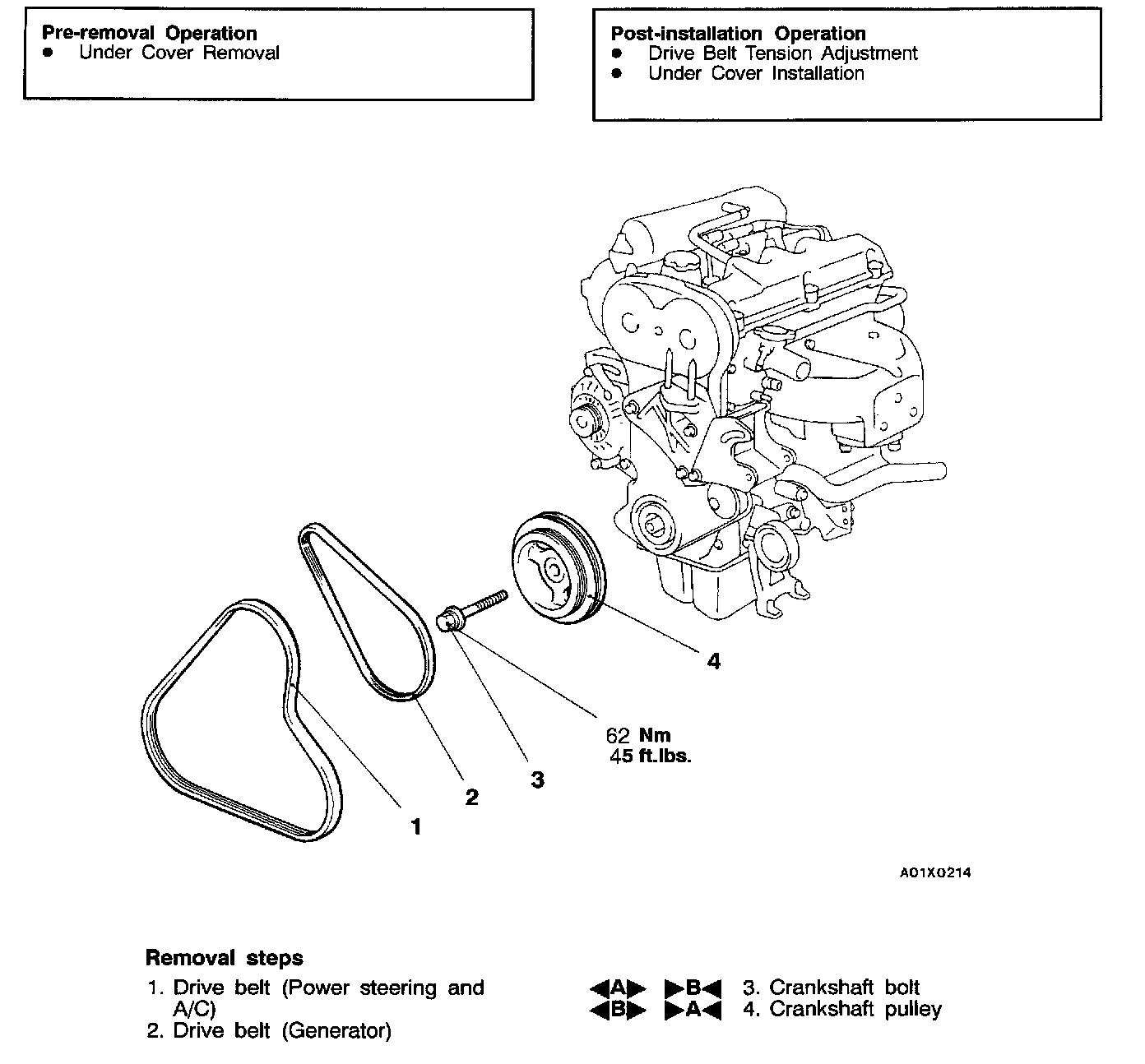

CRANKSHAFT BALANCER BOLT 420A engine 62 N.m 45 ft.lb

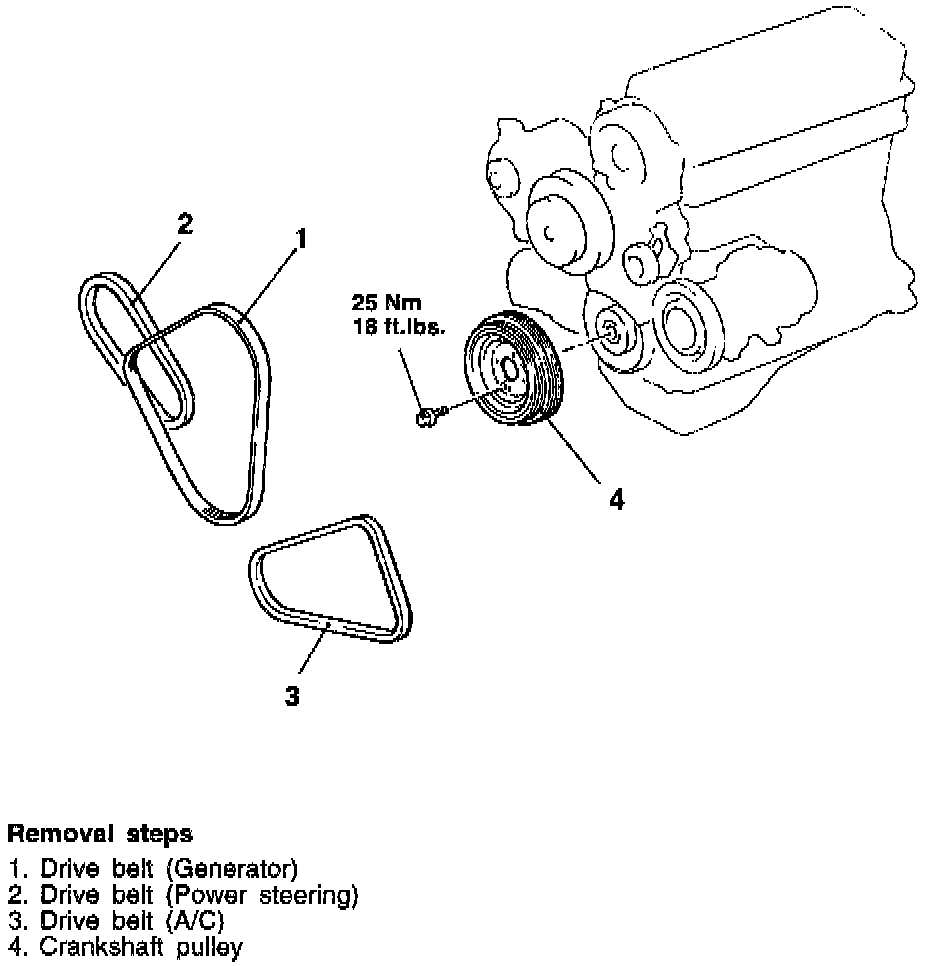

4G63 TURBO AND 2.4 L ENGINE PULLEY RING 25 N.m 18 ft.lb

REMOVAL AND INSTALLATION

Removal Service Points






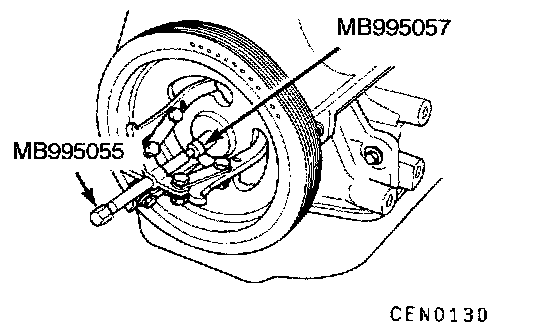

[A] Crankshaft Bolt Removal 420A engine

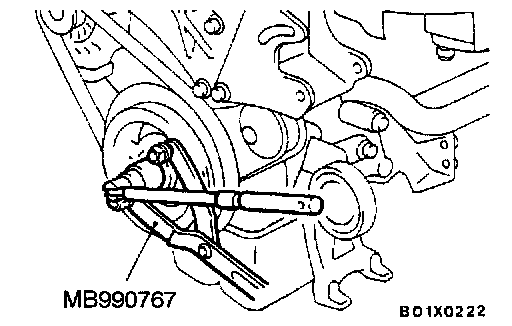

[B] Crankshaft Pulley Removal 420A engine

Installation Service Points






]A[ Crankshaft Pulley Installation 420A engine






]B[ Crankshaft Bolt Installation 420A engine
