Initial Inspection and Diagnostic Overview

Troubleshooting





Overheat





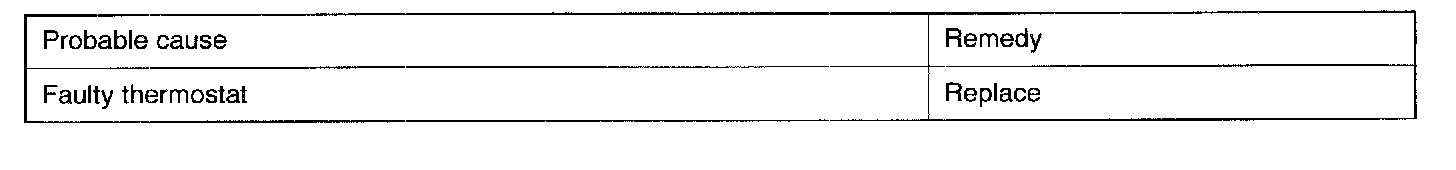

No Rise In Temperature

Troubleshooting Hints
[2.0L Engine (Non-turbo)]
1. Only the radiator fan does not operate.
- Check fusible link No. 7.
2. Only the condenser fan does not operate.
- Check dedicated fuse No. 9.
3. The radiator fan and condenser fan do not operate in the low speed mode, but operate otherwise.
- Check the radiator fan motor relay (LO) and condenser fan motor relay (LO).
- Check the Powertrain control module.
4. The radiator fan and condenser fan do not operate in the high speed mode, but operate otherwise.
- Check the radiator fan motor relay (HI) and condenser fan motor relay (HI).
- Check the powertrain control module.

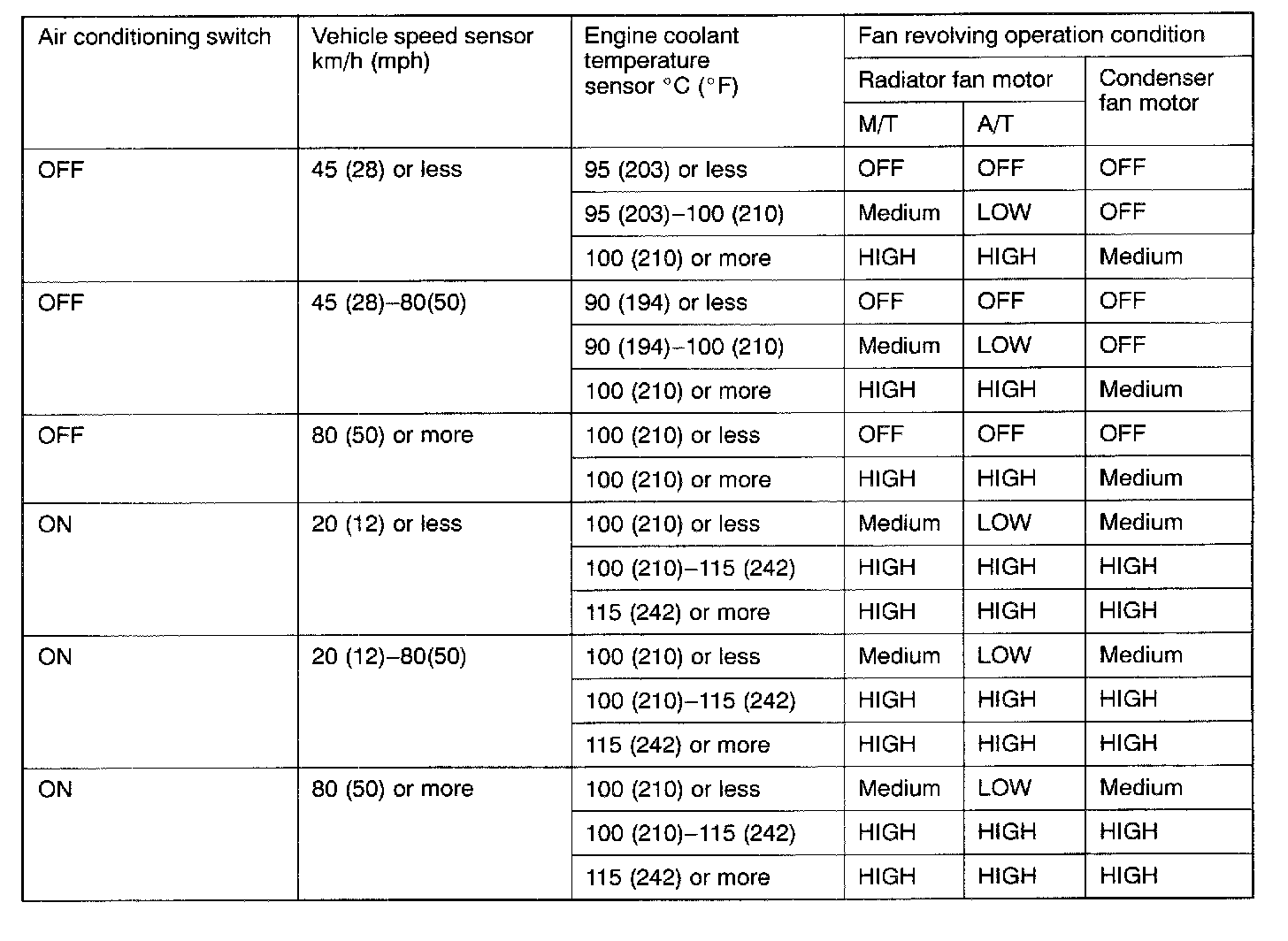

Fan Operating Mode

[2.0L Engine (Turbo) and 2.4L Engine]
1. Only the radiator fan does not operate.
- Check fusible link No. 7.
2. Only the condenser fan does not operate.
- Check dedicated fuse No. 9.
3. The radiator fan and condenser fan do not operate in the low speed mode, but operate otherwise.
- Check the radiator fan motor relay (LO) and condenser fan motor relay (LO).
- Check the engine control module. Powertrain Management
4. The radiator fan and condenser fan do not operate in the high speed mode, but operate otherwise.
- Check the radiator fan motor relay (HI) and condenser fan motor relay (HI).
- Check the engine control module. Powertrain Management

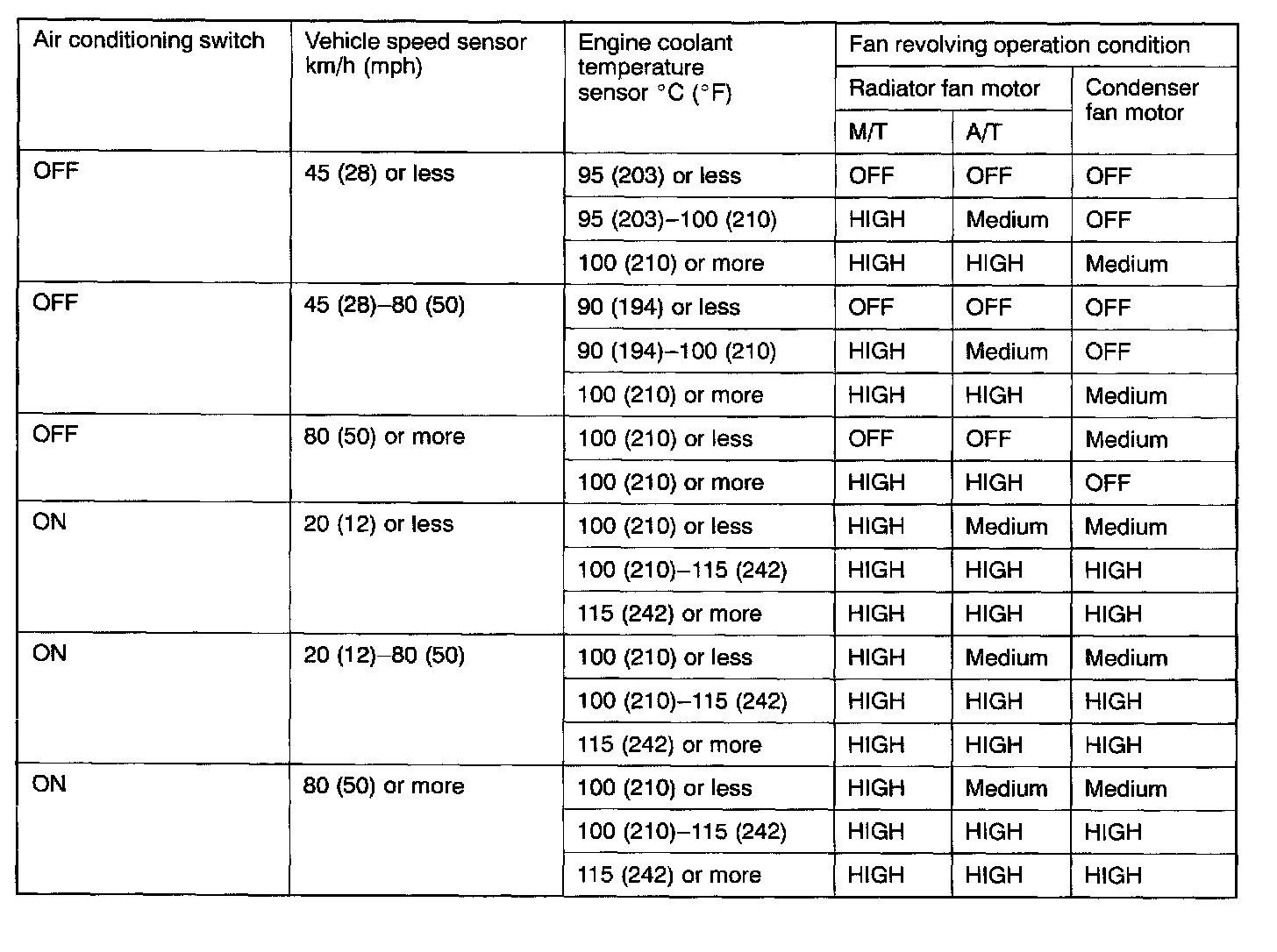

Fan Operating Mode
