Radiator Cooling Fan Motor: Testing and Inspection
INSPECTIONRadiator Fan Motor Check

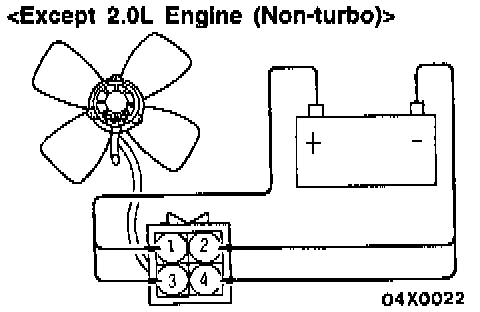

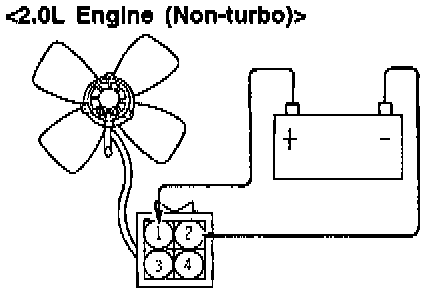

1. Check to be sure that the radiator fan rotates when battery voltage is applied between terminals (as shown in the figure).
2. Check that abnormal noises are not produced while the motor is turning.
