Heater Core: Service and Repair
Instrument Panel, Gauges and Warning Indicators
Restraints and Safety Systems

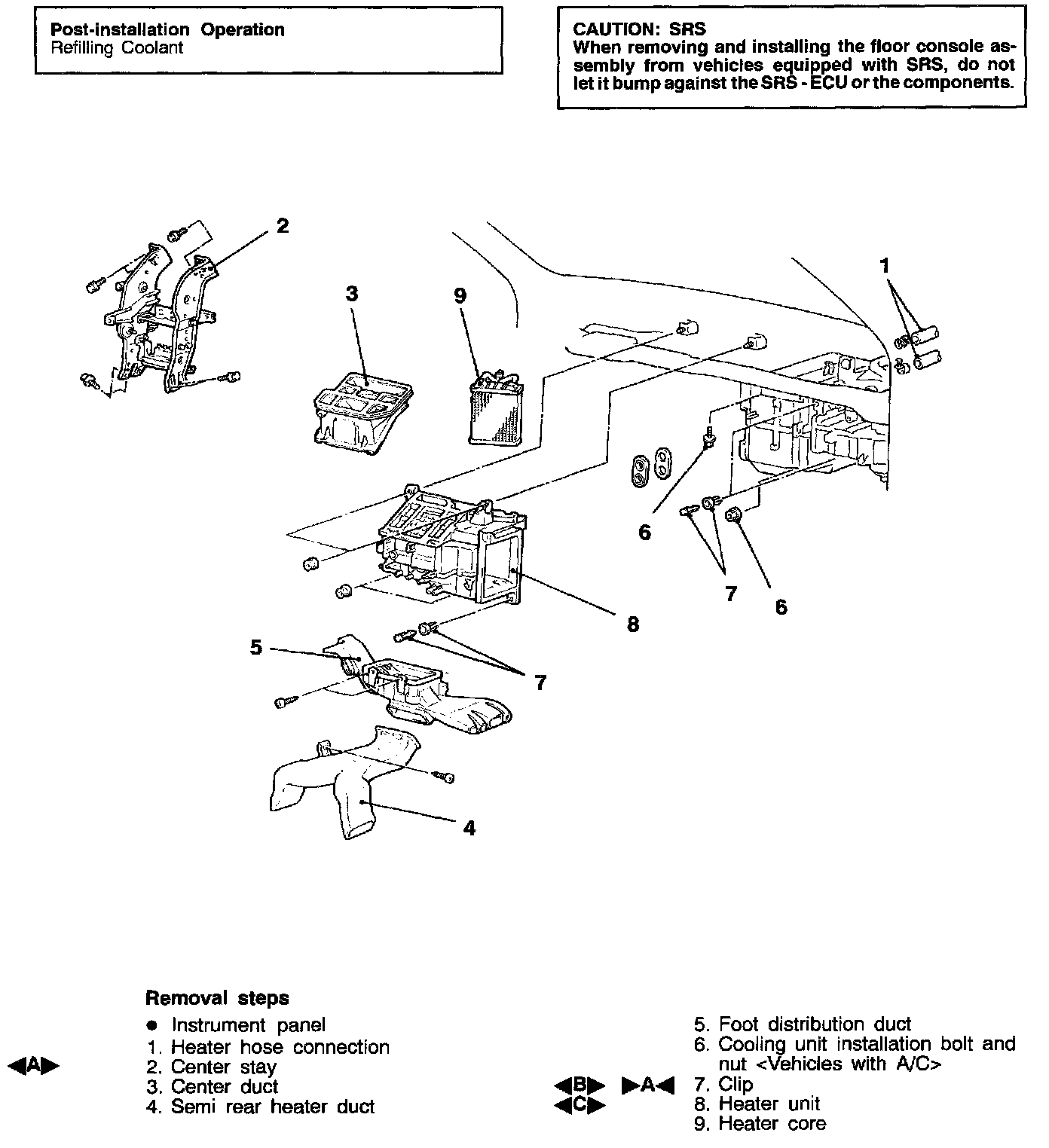

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINTS
HEATER HOSE DISCONNECTION
CAUTION: The vehicle speed sensor for non-turbo (M/T) is below the heater hoses, so cover the vehicle speed sensor with a shop towel before removing any of the hoses.

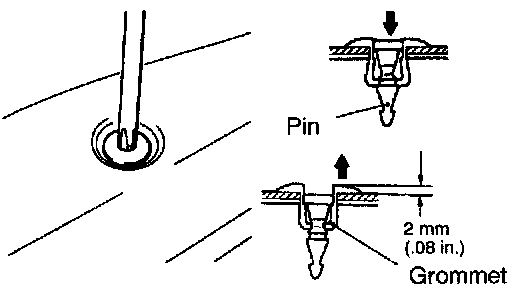

CLIP REMOVAL
1. Use a Phillips-head screwdriver to push inward the pin (at the center of the clip) to a depth of about 2 mm (0.08 in.).
2. Pull the clip outward to remove it.
CAUTION: Do not push the pin inward more than necessary because it may damage the grommet, or the pin may fall in, if pushed too far.

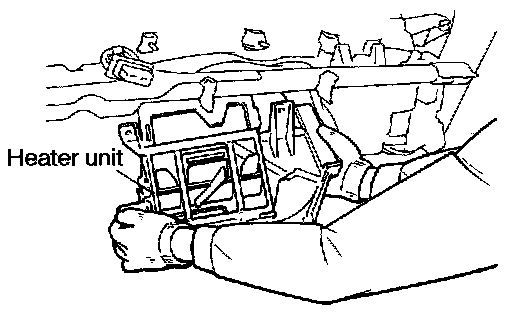

After sliding the cooling unit towards you slightly, remove the heater unit.
INSTALLATION SERVICE POINT

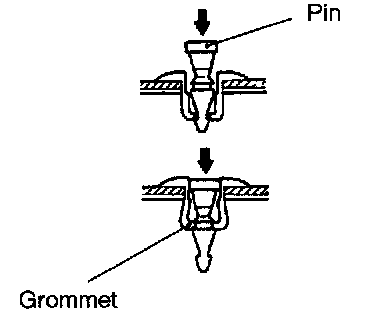

>A< CLIP INSTALLATION
1. With the pin pulled out, insert the clip into the hole.
2. Push the pin inward until the pin's head is flush with the grommet.
