Coolant Line/Hose: Service and Repair

2.0 L Turbo





2.4 L

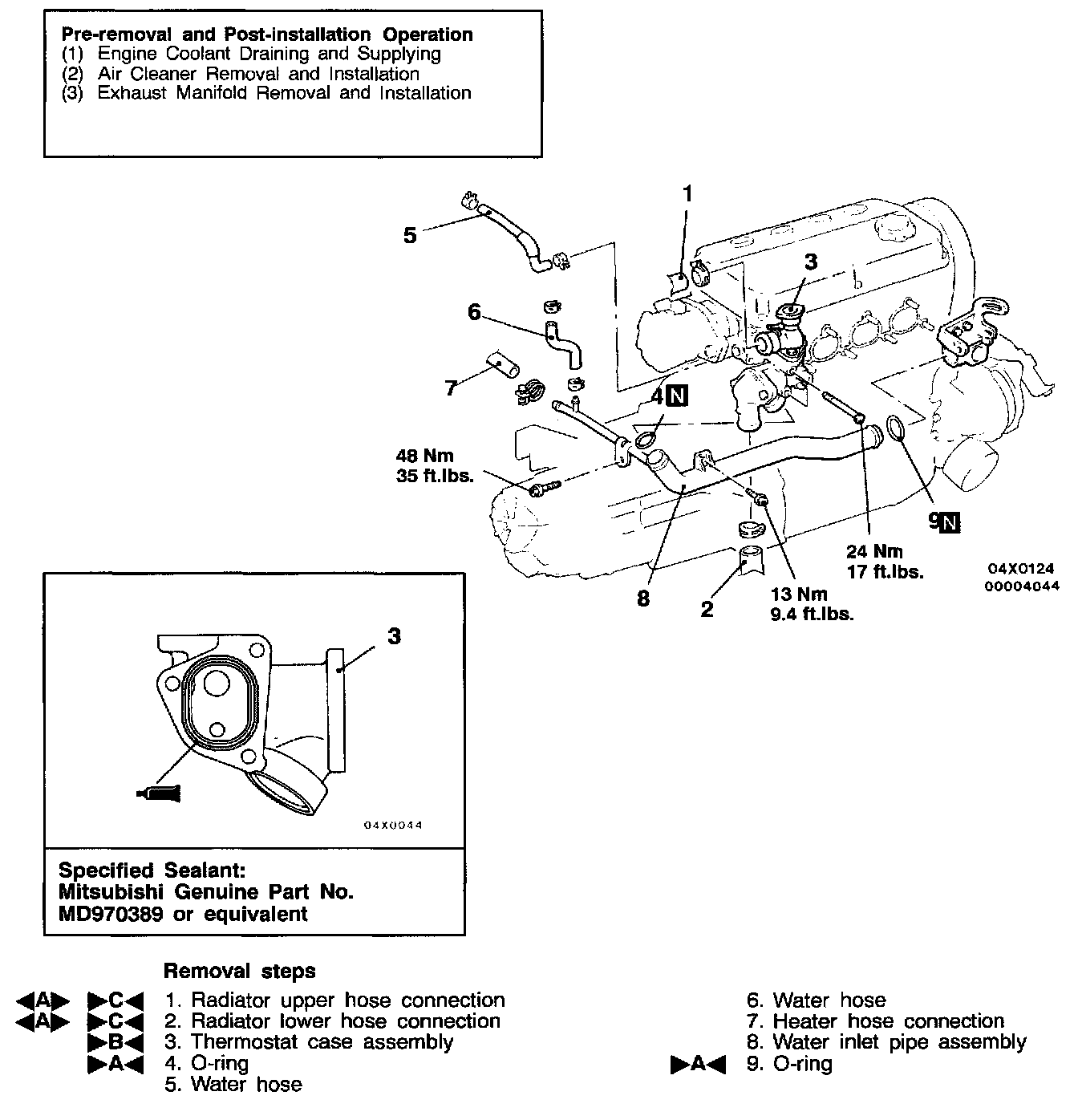

REMOVAL AND INSTALLATION

Removal Service Point
[A] Radiator Upper Hose/Radiator Lower Hose Disconnection





After making mating marks on the radiator hose and the hose clamp, disconnect the radiator hose.

Installation Service Points
]A[ O-Ring Installation





Insert the O-ring to the water inlet pipe, and coat the outer portion of the O-ring with water or engine coolant.

CAUTION: Do not allow engine oil or other grease to adhere to the O-ring. Do not fold over or scratch the O-ring during installation.

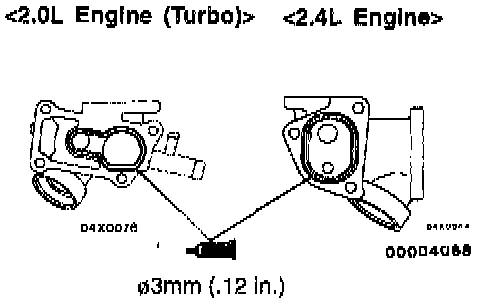

]B[ Thermostat Case Assembly Installation





Squeeze out the sealant from the tube evenly and apply it so that there is not too much sealant and no places without sealant.
Specified Sealant: Mitsubishi Genuine Parts No. MD970389 or equivalent

]C[ Radiator Lower Hose/Radiator Upper Hose Connection





1. Insert each hose as far as the projection of the water outlet fitting or water inlet fitting.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.

INSPECTION

Water Pipe And Hose Check
Check the water pipe and hose for cracks, damage, clogs and replace them if necessary.
