Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
Wiper and Washer Systems

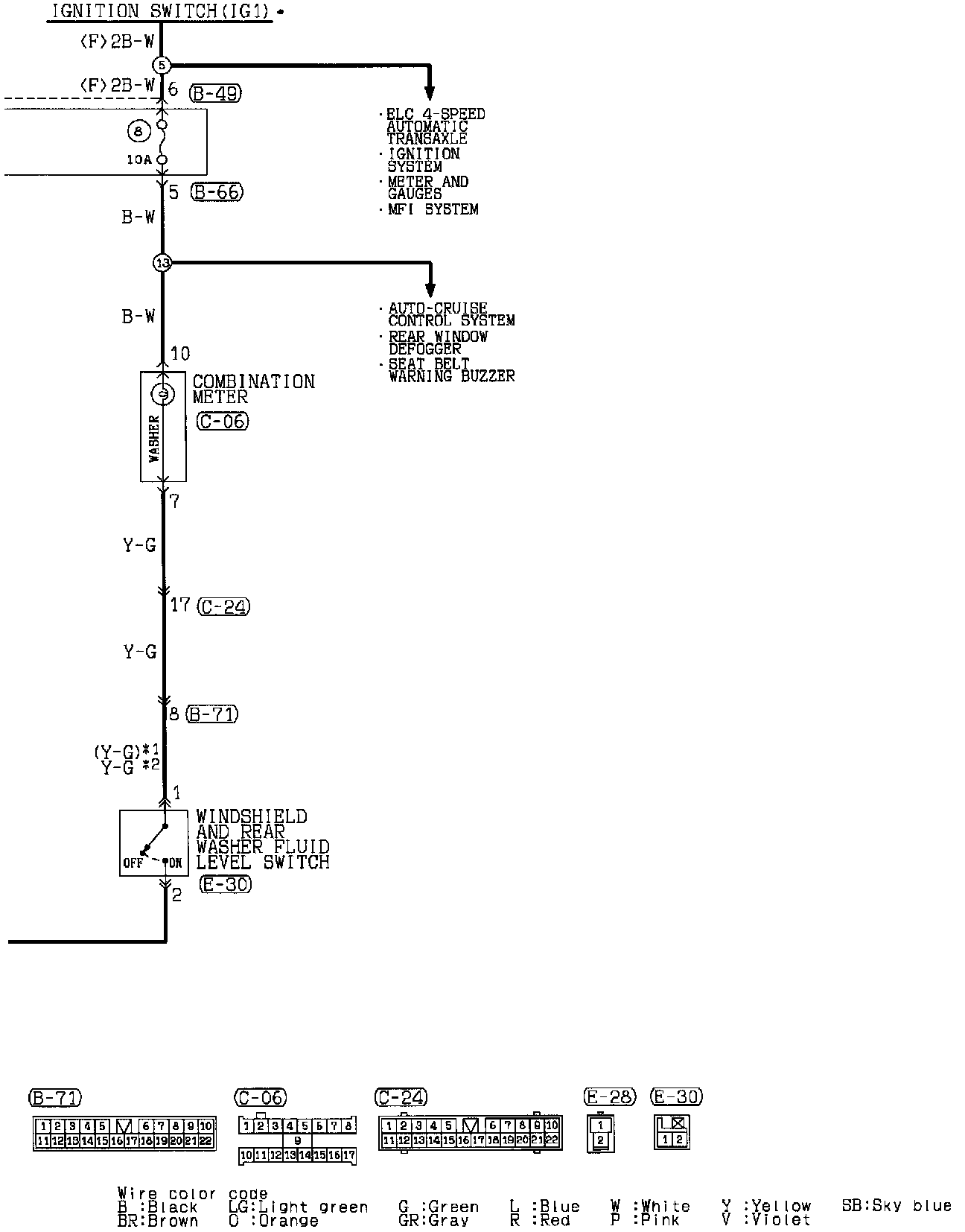

Windshield Wiper And Washer (Part 1 Of 2):

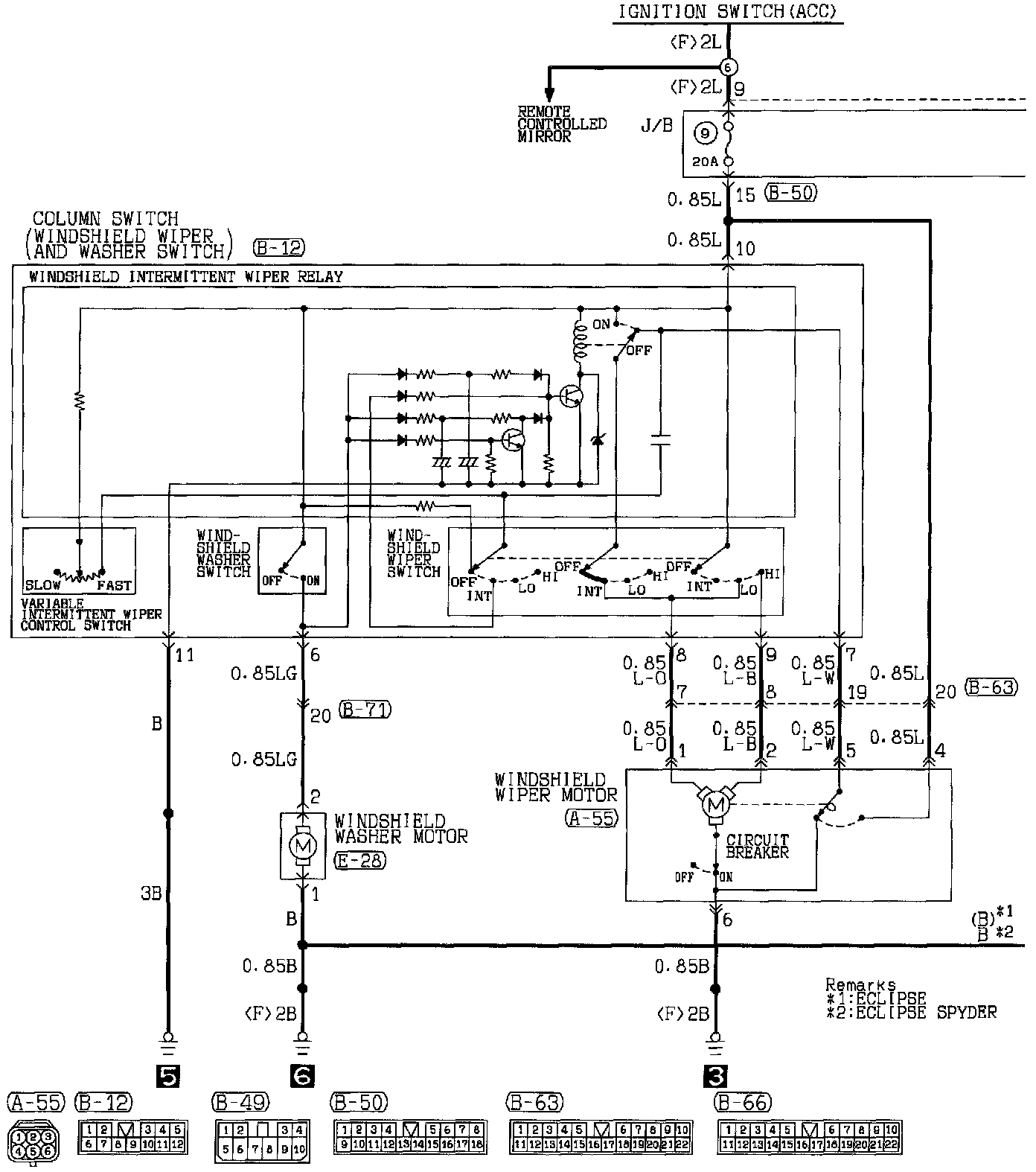

Windshield Wiper And Washer (Part 2 Of 2):

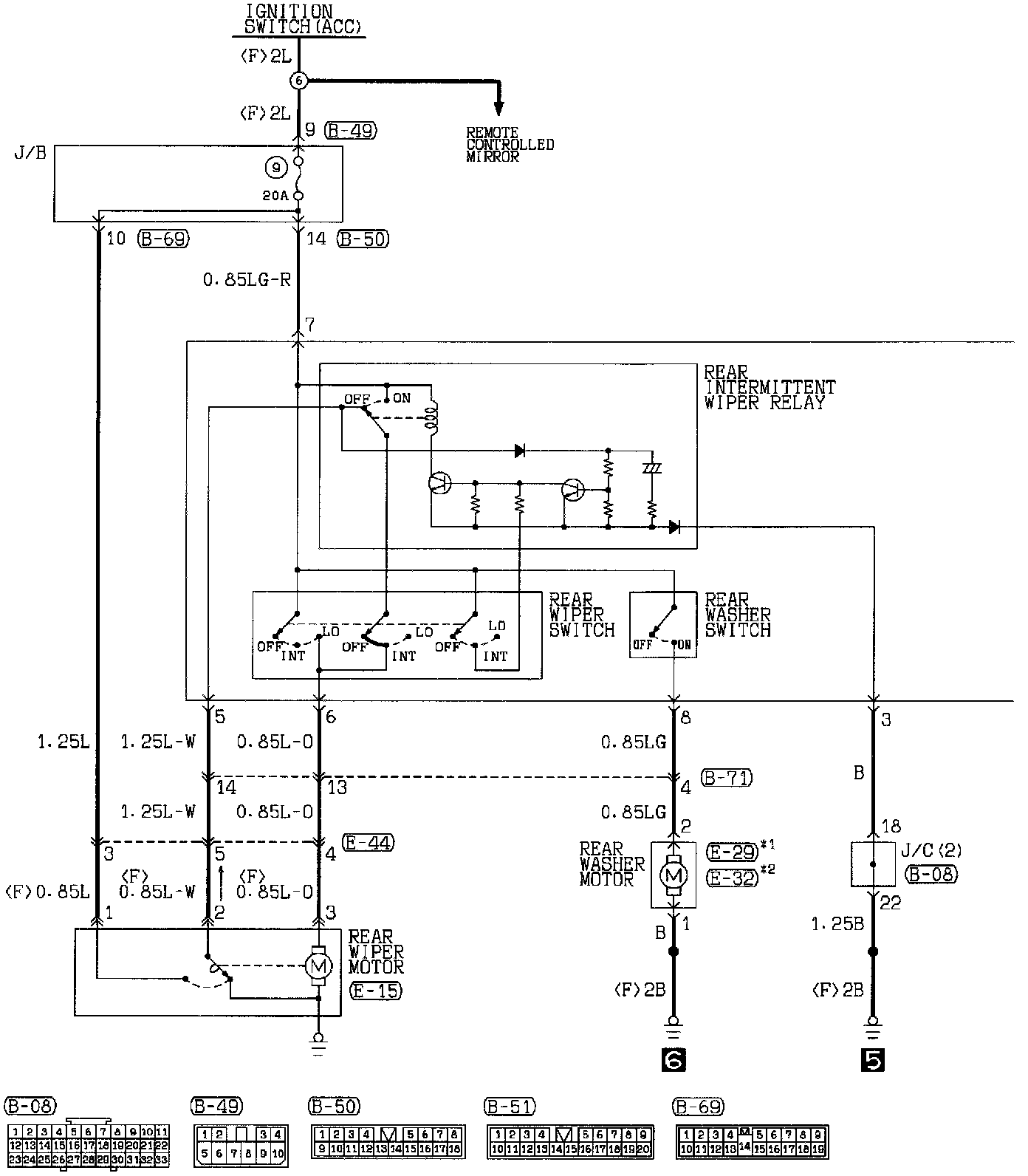

Rear Wiper And Washer (Part 1 Of 2):

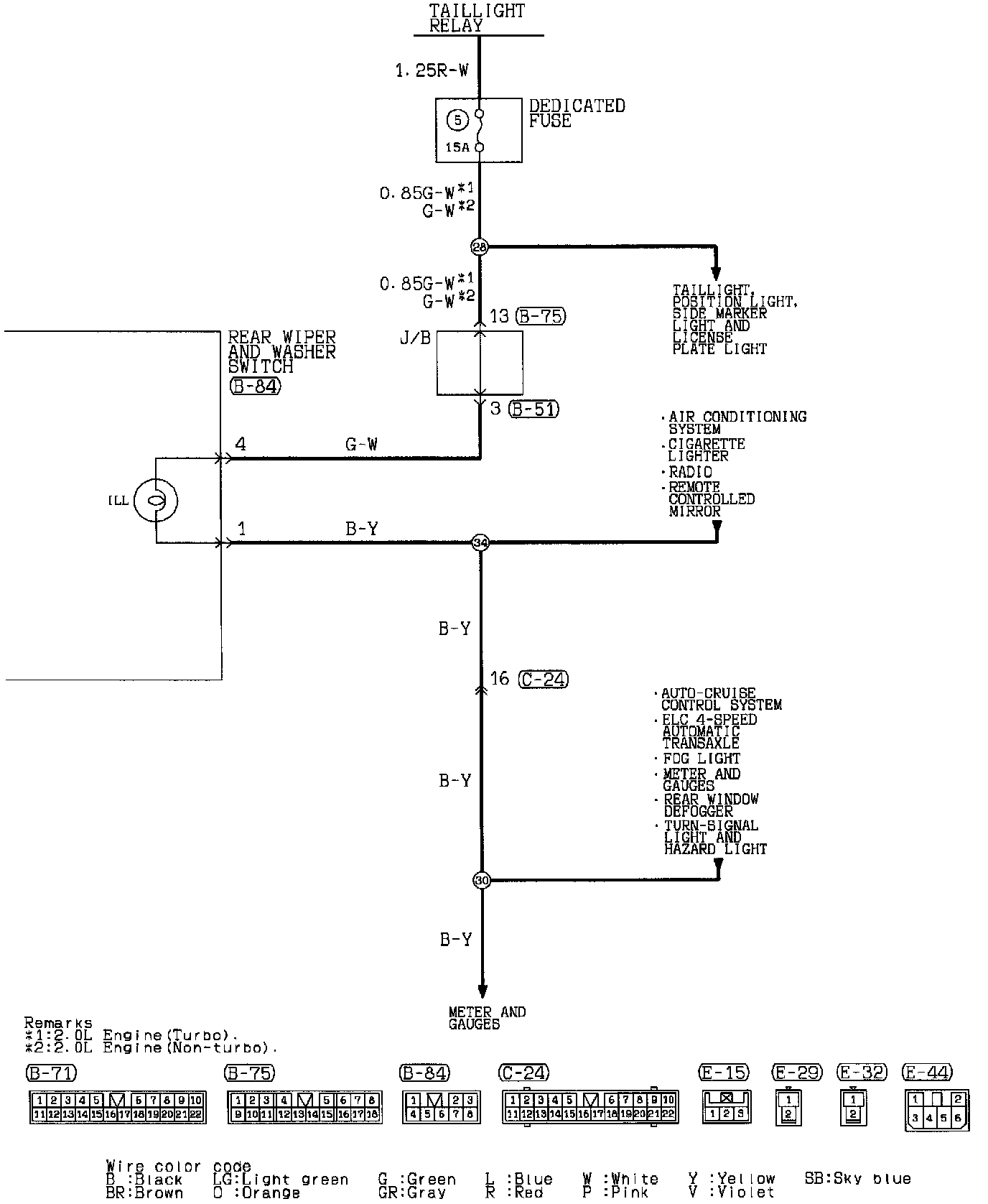

Rear Wiper And Washer (Part 2 Of 2):
